2×10 Floor Joist Span Chart in Construction

When it comes to ensuring the structural integrity of a building, one of the critical elements to consider is the span of floor joists. Among the many options available, the 2×10 floor joist is a popular choice for various residential and commercial construction projects due to its robust load-bearing capacity. This article provides a comprehensive guide to understanding the 2×10 floor joist span chart, including its applications, considerations, and benefits.

What is a 2×10 Floor Joist?

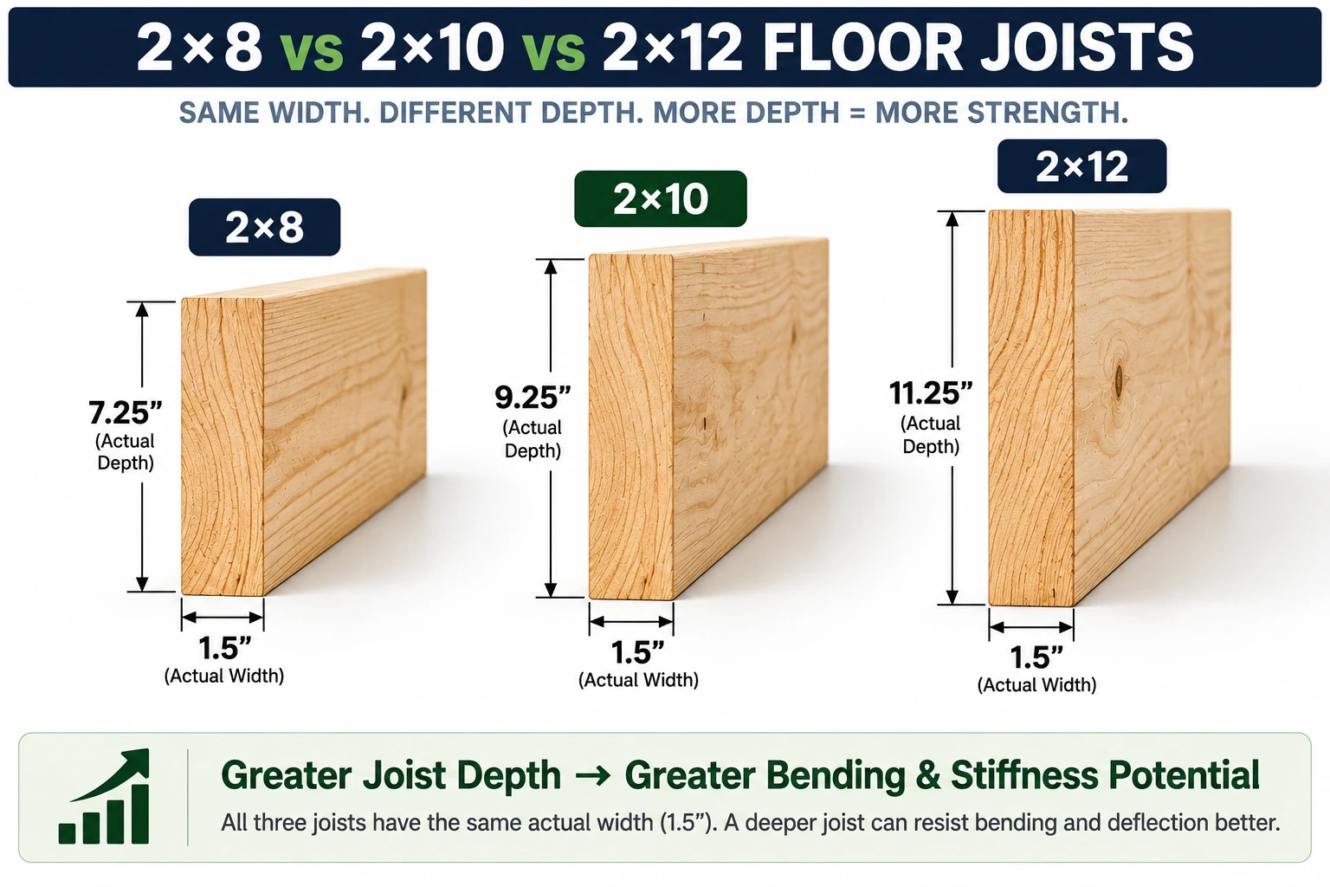

A 2×10 floor joist is a dimensional lumber used in construction to support floors and ceilings. Despite its nominal dimensions of 2 inches by 10 inches, the actual dimensions are typically 1.5 inches by 9.25 inches. The 2×10 joists are commonly employed in scenarios requiring significant load-bearing capacity due to their strength and durability.

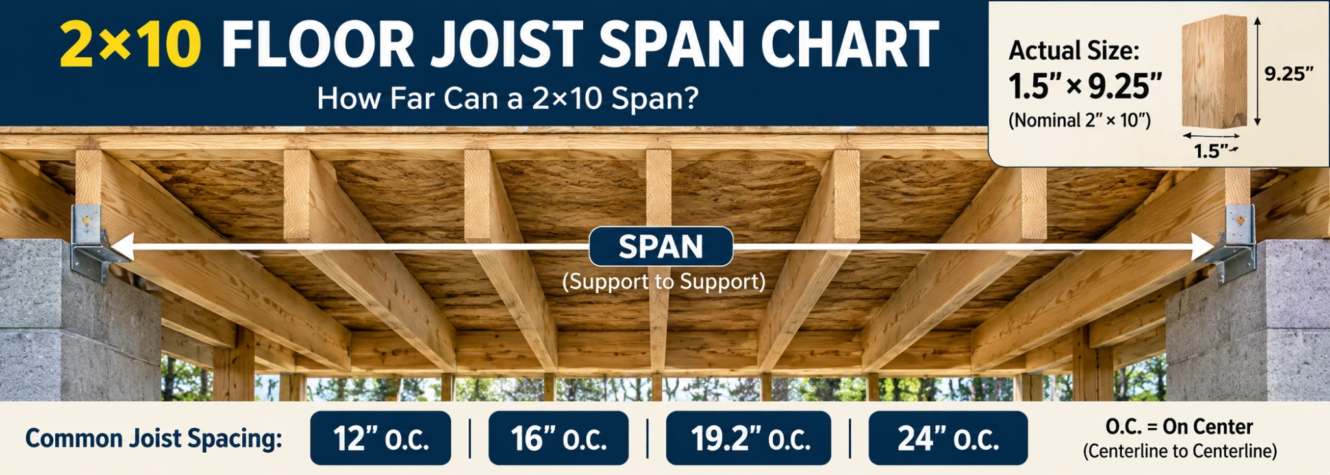

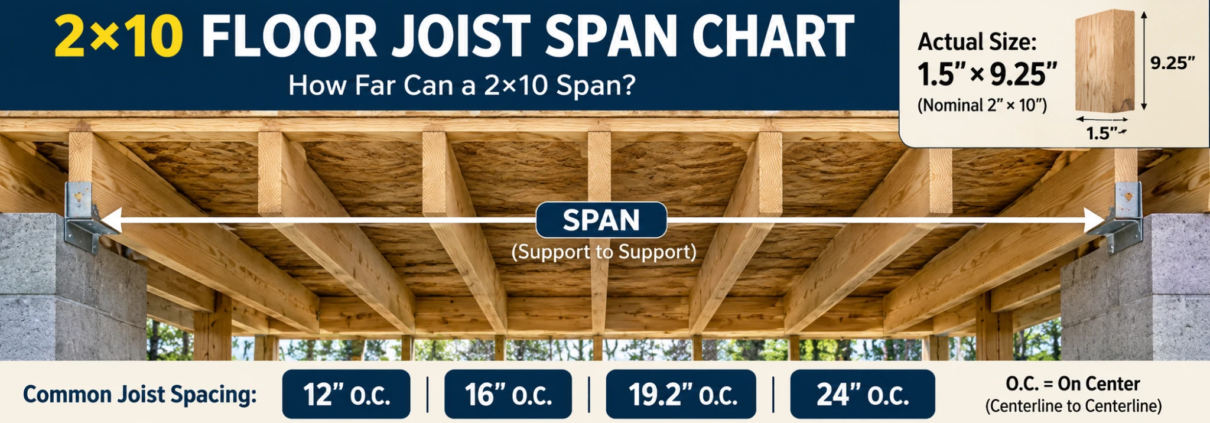

Understanding the Span Chart for 2×10 Floor Joists

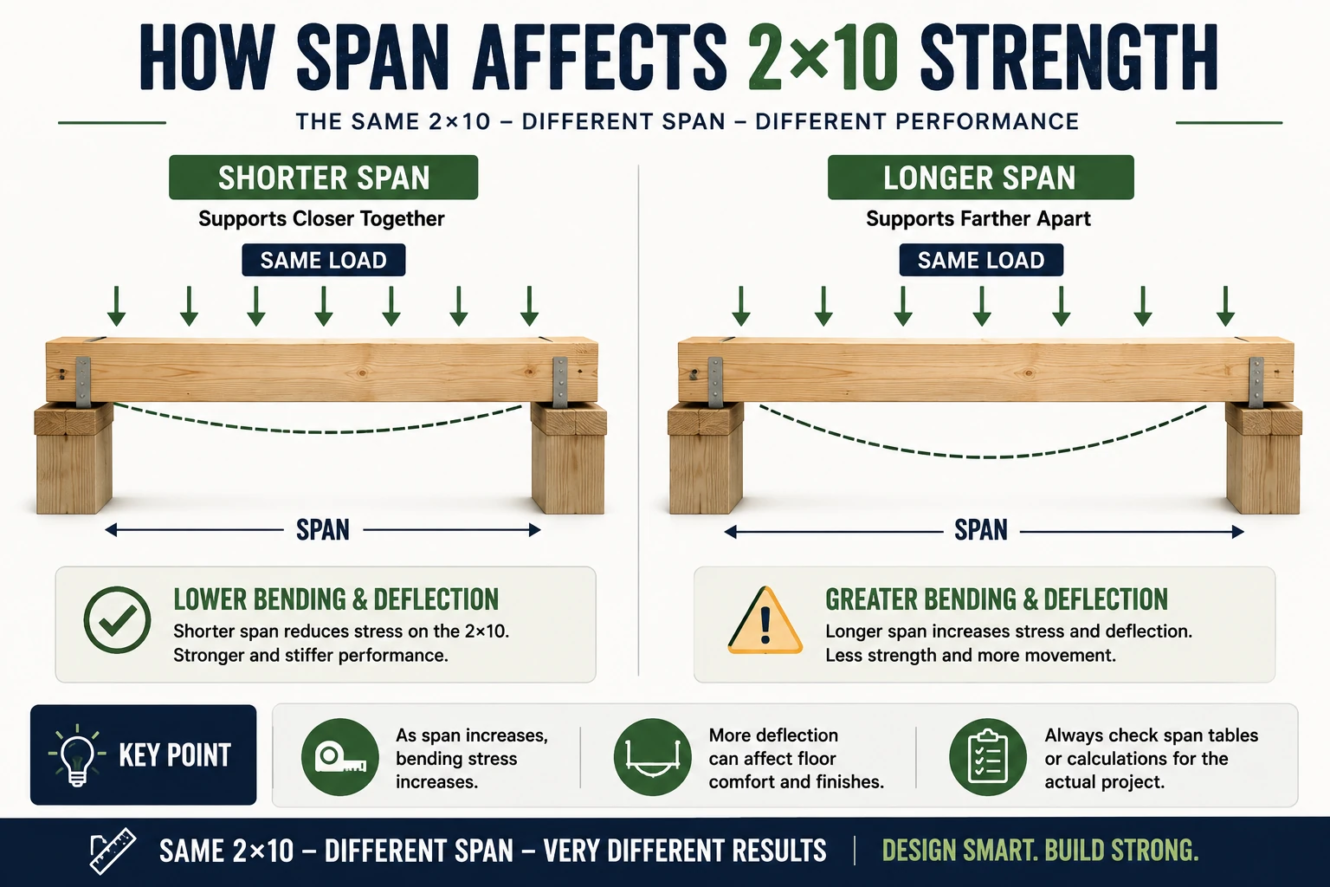

The span chart for 2×10 floor joists provides essential information on how far these joists can span between supports while maintaining structural integrity. The span is influenced by several factors including wood species, grade, load conditions, and spacing between joists.

1. Factors Affecting Joist Span

Wood Species and Grade

The wood species and grade significantly affect the span capabilities of 2×10 joists. Common species include Southern Pine, Douglas Fir, and Hemlock. Each species has different strength characteristics, which are classified into grades such as No. 1, No. 2, and Select Structural.

• Southern Pine: Known for its high strength and stiffness.
• Douglas Fir: Offers good load-bearing capacity and stability.
• Hemlock: Provides moderate strength and is cost-effective.

Load Conditions

Live load and dead load are crucial factors in determining the appropriate span for 2×10 joists.

• Live Load: The variable weight of occupants, furniture, and other movable items.
• Dead Load: The static weight of the building materials, including floors, ceilings, and roofing.

The span chart typically accounts for both live and dead loads to ensure safety and structural stability.

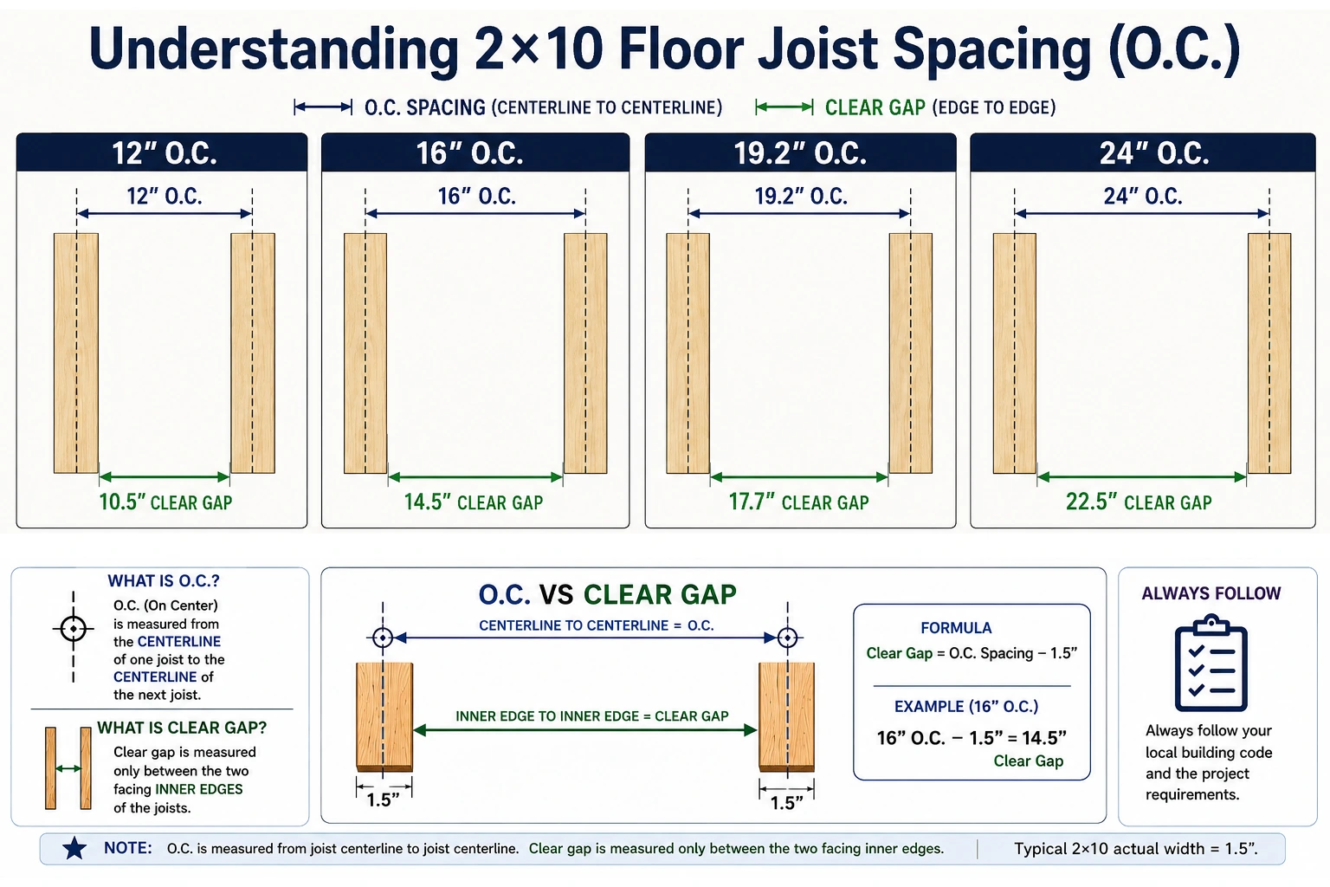

Spacing Between Joists

The spacing of 2×10 joists affects the maximum span. Common spacings include 16 inches on center (OC) and 24 inches OC. Wider spacing reduces the load-bearing capacity, while closer spacing increases it.

2. Span Chart Examples for 2×10 Floor Joists

Here are examples from a typical span chart for 2×10 joists:

• Southern Pine, No. 2, 16 inches OC:
• Live Load: 40 psf (pounds per square foot)
• Dead Load: 10 psf
• Maximum Span: Approximately 16 feet
• Douglas Fir, No. 2, 24 inches OC:
• Live Load: 30 psf
• Dead Load: 10 psf
• Maximum Span: Approximately 12 feet

These values are indicative and should be verified with a span chart specific to your wood species and grade.

Applications of 2×10 Floor Joists

1. Residential Construction

In residential construction, 2×10 floor joists are commonly used for floor framing in homes, particularly for basements, living areas, and garages. Their robust span capabilities make them suitable for areas requiring significant load support.

2. Commercial Construction

For commercial buildings, 2×10 joists are utilized in office spaces, retail stores, and warehouses. They support various flooring systems and contribute to the structural framework of larger commercial spaces.

3. Decks and Outdoor Structures

2×10 joists are also popular for decks and outdoor structures due to their ability to span long distances and support substantial weight. They are ideal for creating sturdy and durable outdoor spaces.

Benefits of Using 2×10 Floor Joists

1. Enhanced Load-Bearing Capacity

The primary advantage of 2×10 floor joists is their ability to support significant loads over longer spans compared to smaller joists. This is especially beneficial in applications requiring large open spaces without intermediate supports.

2. Versatility in Design

2×10 joists offer versatility in design options, allowing for various architectural layouts and open floor plans. They accommodate different flooring materials and construction techniques, making them suitable for diverse building projects.

3. Improved Structural Integrity

By distributing loads effectively, 2×10 joists contribute to the overall structural integrity of a building. Their strength helps prevent sagging, bouncing, and other structural issues, ensuring a stable and durable construction.

Best Practices for Installing 2×10 Floor Joists

1. Accurate Measurements

Ensure precise measurements for joist spacing and span length based on the span chart. Accurate measurements are crucial for maintaining structural integrity and meeting building codes.

2. Proper Support and Bearing

Verify that the joists are adequately supported at their ends and throughout the span. Proper bearing on ledger boards, beams, or support walls is essential for distributing loads effectively.

3. Compliance with Building Codes

Follow local building codes and regulations to ensure that the installation of 2×10 joists meets safety and structural requirements. Codes may vary by region and should be consulted before beginning construction.

4. Regular Inspection

Conduct regular inspections of installed joists to identify any signs of damage, sagging, or other issues. Early detection and maintenance are key to preserving the longevity and safety of the structure.

Conclusion

In conclusion, the 2×10 floor joist span chart is a vital tool in construction for determining the appropriate span and load-bearing capacity of these joists. By understanding the factors affecting joist span, exploring various applications, and adhering to best practices, construction professionals can ensure the effective use of 2×10 floor joists in their projects. For more detailed information on the span chart and its applications, please visit this comprehensive resource.
