Berm Drain in Construction: Definition, Purpose, and Installation Guide
In construction and civil engineering, managing surface water and stormwater runoff is essential to protect structures and maintain site stability. One effective method used for this purpose is the berm drain. This relatively simple yet crucial feature helps control water flow, prevent erosion, and protect foundations from water damage.
This article will explore what a berm drain is, its function in construction, the types of berm drains, how they are installed, and why they are vital for any construction project that requires proper water management.
What Is a Berm Drain in Construction?

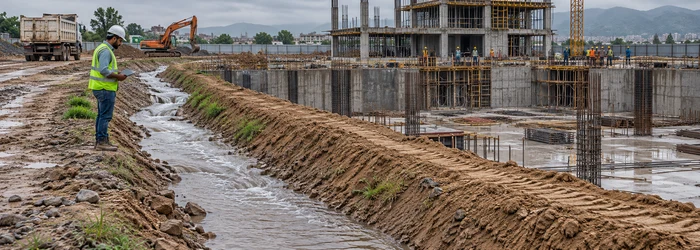

A berm drain is a drainage system that combines a berm (an earthen embankment) with a drainage channel or pipe to redirect surface water runoff away from critical areas on a construction site.
Essentially, it involves building a raised mound or ridge (the berm) adjacent to a channel or trench designed to collect and carry water safely to an outlet point such as a storm sewer, detention basin, or natural watercourse.
This combination helps:
- Divert water flow
- Prevent soil erosion
- Protect building foundations
- Improve site stability and safety
Purpose and Benefits of Berm Drains
1. Stormwater Management
Berm drains effectively manage rainwater and runoff by redirecting excess water away from roads, buildings, and other infrastructure, reducing flooding and water pooling.
2. Erosion Prevention
By guiding water flow in a controlled manner, berm drains reduce the speed of runoff, thereby minimizing soil erosion on slopes and disturbed areas.
3. Foundation Protection
Water accumulation near foundations can cause damage such as cracking or settling. Berm drains help keep water away from structures, preserving their integrity.
4. Environmental Protection
Properly designed berm drains reduce sediment transport into nearby waterways, protecting ecosystems and complying with environmental regulations.
5. Cost-Effectiveness
Compared to more complex drainage systems, berm drains are relatively inexpensive to install and maintain while offering effective runoff control.
Types of Berm Drains
| Type | Description |
|---|---|
| Open Berm Drain | A berm built alongside an open channel or swale that conveys runoff. |
| Pipe-Integrated Berm Drain | A berm constructed with an embedded perforated pipe or drainage conduit to collect and transport water underground. |
| Gravel or Rock-Filled Berm Drain | Berm combined with gravel or rock fill to facilitate infiltration and slow runoff. |
| Vegetated Berm Drain | Berm planted with grasses or other vegetation to enhance erosion control and aesthetics. |
How Does a Berm Drain Work?
A berm drain works by creating a physical barrier (the berm) that prevents water from flowing directly into sensitive areas. The adjacent drainage channel or pipe collects the water, directing it safely away.
- During rainfall, surface runoff hits the berm.
- Water is then channeled into the drainage trench or pipe running parallel to the berm.
- This water is conveyed to a designated discharge location.
- Vegetation on the berm helps stabilize the soil and absorb some moisture.
Design Considerations for Berm Drains
When designing berm drains, several factors must be considered to ensure they perform effectively:
1. Berm Height and Slope
- Typically, berm height ranges from 6 inches to several feet depending on the site and volume of runoff.
- Slope should be gentle, generally 3:1 (horizontal to vertical) or flatter to prevent erosion.
2. Drainage Channel or Pipe Size
- The drainage channel or pipe must be sized to handle expected water volumes, accounting for peak rainfall events.
- Perforated pipes in gravel trenches allow for infiltration and groundwater recharge.
3. Soil and Material Selection
- Berms are usually made from compacted earth.
- Use well-draining materials like gravel or sand in the drainage trench.
- Geotextiles can be applied to prevent soil migration into drainage layers.
4. Vegetation
- Planting grass or native plants on berm surfaces stabilizes the soil and improves filtration.
5. Outlet Location
- Water should be discharged at a location where it will not cause erosion or property damage.
Step-by-Step Berm Drain Installation Guide
Step 1: Site Evaluation
- Assess topography, soil type, rainfall patterns, and runoff volumes.
- Identify critical areas needing protection.
Step 2: Layout
- Mark berm location parallel to the area to be protected.
- Design drainage channel or pipe alongside the berm.
Step 3: Excavation
- Excavate a trench for the drainage channel or pipe next to the berm alignment.
Step 4: Berm Construction
- Build the berm using compacted soil or other fill material.
- Shape the berm to the desired height and slope.
Step 5: Drain Installation
- Place drainage pipes or gravel in the trench.
- Use perforated pipes if groundwater infiltration is desired.
- Cover with gravel and filter fabric to prevent clogging.
Step 6: Finishing
- Seed or plant vegetation on the berm.
- Ensure outlet areas are stabilized with riprap or other erosion control measures.
Step 7: Inspection and Maintenance
- Regularly check for erosion, blockages, and vegetation health.
- Repair damaged areas promptly.
Applications of Berm Drains in Construction
| Application Area | Purpose |
|---|---|
| Roadways and Highways | Control roadside runoff and prevent shoulder erosion |
| Building Foundations | Divert water away from structural bases |
| Industrial Sites | Manage stormwater and contain runoff |
| Landscaping and Parks | Integrate into natural drainage systems for aesthetics |
| Temporary Construction Sites | Control sediment and runoff during earthworks |
Advantages of Berm Drains
- Easy to construct with onsite materials
- Low maintenance compared to complex drainage systems
- Flexible design tailored to site needs
- Provides multiple benefits: erosion control, runoff management, landscaping
- Cost-effective solution for both temporary and permanent drainage needs
Conclusion
A berm drain is a vital component in modern construction projects for effective stormwater management, erosion control, and site protection. Its simple design, combining a raised berm with a drainage channel or pipe, makes it adaptable to many scenariosโfrom roadsides to residential yards.
Proper planning, design, and maintenance of berm drains ensure longevity and effectiveness, safeguarding construction investments while meeting environmental requirements.
Frequently Asked Questions (FAQs)
1. What is a berm drain?
A berm drain is a drainage system that uses a raised embankment (berm) combined with a channel or pipe to redirect surface water runoff away from vulnerable areas.
2. How does a berm drain prevent erosion?
By controlling the flow of water and reducing its speed, berm drains minimize soil displacement and erosion on slopes and disturbed sites.
3. Can berm drains be used in residential construction?
Yes, berm drains are often used in residential landscaping to manage stormwater and protect foundations.
4. What materials are used to build berm drains?
Common materials include compacted soil for the berm, gravel or crushed rock for drainage trenches, and perforated pipes for subsurface drainage.
5. How big should a berm drain be?
Size depends on runoff volume and site conditions, but berms typically range from 6 inches to several feet tall with a gentle slope.
6. Are berm drains expensive to install?
Berm drains are generally cost-effective, especially when built with onsite materials and simple construction methods.
7. Do berm drains require maintenance?
Yes, routine inspection for blockages, erosion, and vegetation health is necessary to maintain their effectiveness.
8. Can vegetation be planted on berm drains?
Yes, planting grass or native plants stabilizes soil and enhances the berm drainโs functionality and appearance.
