Manhole Rim in Construction: Understanding Its Role, Importance, and Installation

In construction, the manhole rim plays a crucial role in the overall infrastructure of a building, roadway, or drainage system. It serves as an integral part of the manhole system, which provides access to underground utilities, sewage systems, and stormwater drainage. The manhole rim not only ensures safety and security but also contributes significantly to the longevity and durability of the infrastructure. This article will delve into the meaning of the manhole rim in construction, its various types, applications, installation process, and maintenance, providing a comprehensive understanding of its role in modern construction.

What is a Manhole Rim?

A manhole rim, also referred to as the manhole frame or cover frame, is the uppermost part of a manhole. It is typically made from steel, cast iron, or concrete and is designed to sit at the opening of a manhole. The manhole rim serves as a framework for the manhole cover, providing a sturdy and secure fit that ensures the safety and stability of the manhole system. This component is integral to preventing accidents by securing the manhole cover in place while allowing for easy access to the underground utilities beneath.

The rim is often fitted with a seal or gasket to prevent water, dirt, or debris from entering the manhole. It helps to ensure that the infrastructure within the manhole remains undisturbed and functional over time, preventing issues related to corrosion, water ingress, or structural damage.

Types of Manhole Rims in Construction

1. Cast Iron Manhole Rims

One of the most common materials used for manhole rims is cast iron. Cast iron is preferred for its durability, strength, and resistance to corrosion. Cast iron manhole rims are designed to withstand heavy traffic loads, especially in urban environments where manholes are frequently exposed to high volumes of vehicular traffic.

These rims are known for their long-lasting performance and ability to resist wear and tear from environmental factors such as water, chemicals, and extreme weather conditions. Additionally, cast iron provides excellent structural support, making it ideal for use in both residential and commercial construction projects.

2. Steel Manhole Rims

Steel manhole rims are another common option in construction, particularly when cost-efficiency and strength are primary considerations. Steel is lightweight, cost-effective, and easy to fabricate, making it a popular choice for many infrastructure projects. Although steel rims are strong and durable, they are more prone to rust and corrosion than cast iron, making them less suitable for certain environments, such as areas with high humidity or exposure to saltwater.

Despite this, steel manhole rims offer sufficient durability and strength for use in many construction scenarios, including stormwater drainage systems, sewage infrastructure, and roadway construction.

3. Concrete Manhole Rims

In some instances, concrete manhole rims are used, particularly in situations where the manhole is located in areas without significant traffic load. Concrete is typically reinforced with steel to enhance its strength, making it an ideal option for less demanding applications. Concrete manhole rims are highly resistant to corrosion and chemical degradation, offering excellent protection against environmental wear.

However, concrete manhole rims may not be as robust as cast iron or steel rims when exposed to heavy traffic, and they are generally more fragile, making them more susceptible to cracking under high pressure.

4. Composite Manhole Rims

Composite manhole rims, made from a mixture of materials such as fiberglass, resins, and carbon composites, have gained popularity due to their lightweight nature, corrosion resistance, and durability. These rims are increasingly being used in projects where corrosion is a significant concern, such as wastewater systems or areas with exposure to chemicals.

Composite rims are known for their high strength-to-weight ratio, making them ideal for heavy-duty applications. They also have the advantage of being more cost-effective than traditional metal-based rims in the long run.

Importance of the Manhole Rim in Construction

The manhole rim is an essential element in any manhole system. Its role is pivotal in ensuring the proper functioning and safety of the overall infrastructure. Here are some of the key reasons why manhole rims are so important:

1. Safety and Security

One of the primary purposes of the manhole rim is to ensure the safety of both workers and the public. The rim provides a secure base for the manhole cover, ensuring that it stays in place and prevents it from becoming dislodged, which could lead to accidents or injury. It is also important for maintaining the integrity of the manhole system, as a damaged or poorly installed rim can cause the cover to become loose or unstable.

2. Load Distribution

Manhole rims help distribute the weight and load placed on the manhole, especially in areas with heavy vehicular traffic. A properly installed rim ensures that the manhole cover can withstand the pressure exerted by vehicles and prevent damage to the infrastructure. The load-bearing capacity of the manhole rim is a crucial consideration, especially in urban environments with high traffic volumes.

3. Weather and Environmental Protection

The manhole rim plays an important role in protecting the underground utilities from external elements. It helps to prevent water, dirt, and debris from entering the manhole, which can lead to blockages, corrosion, or structural damage. By keeping the opening sealed and protected, the rim ensures that the systems inside the manhole remain undisturbed, preserving their functionality over time.

4. Preventing Unauthorized Access

The manhole rim, in combination with the cover, also helps to prevent unauthorized access to underground systems. By securely holding the cover in place, the rim acts as a deterrent to tampering, theft, or accidental falls into the manhole, which could pose significant hazards.

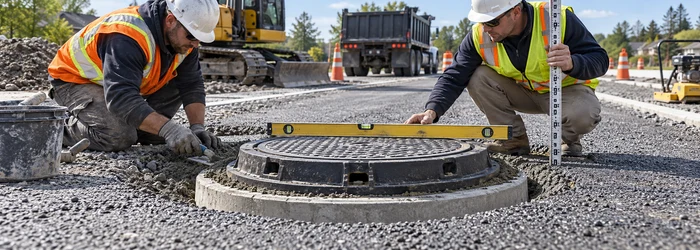

Installation of Manhole Rims

The installation of a manhole rim is a critical task that must be carried out with precision to ensure proper function and safety. The process typically involves the following steps:

1. Excavation and Preparation

Before installing the manhole rim, the excavation site must be prepared. This involves clearing the area around the manhole, ensuring that the foundation is level and stable to support the rim. Depending on the material being used, the ground may need to be compacted or reinforced to accommodate the weight of the manhole structure.

2. Laying the Manhole Base

The manhole base is laid to create a stable foundation for the rim. In the case of concrete manhole rims, a layer of concrete is poured to form the base, while in steel or cast iron rims, a metal frame may be placed for added stability.

3. Securing the Rim

The manhole rim is carefully placed on the base, ensuring that it fits securely and aligns with the manhole opening. The rim is then fastened in place using bolts, screws, or welding, depending on the type of material. A seal or gasket is often applied around the edge of the rim to prevent water ingress.

4. Installing the Manhole Cover

Once the manhole rim is securely installed, the manhole cover is placed on top. The cover is designed to fit tightly within the rim, and the two components work together to create a secure, watertight seal.

Maintenance of Manhole Rims

Regular maintenance of manhole rims is necessary to ensure their longevity and continued effectiveness. Maintenance tasks include:

• Inspecting the rim for corrosion, cracks, or damage.
• Cleaning the rim and surrounding area to prevent the buildup of debris.
• Checking the seal or gasket for wear and replacing it if necessary.
• Ensuring the manhole cover fits securely within the rim.

Conclusion

The manhole rim is a vital component of construction, serving multiple roles from safety to structural integrity. Its installation requires careful planning and precision to ensure its effectiveness in protecting underground systems and maintaining the functionality of the infrastructure. Whether using cast iron, steel, concrete, or composite materials, the choice of manhole rim depends on the specific needs of the construction project, including load-bearing capacity, environmental conditions, and cost considerations.
