What Are the True Dimensions of a 2×6 in Construction?

/by

When it comes to wooden lumber used in construction, understanding the exact dimensions of standard pieces is crucial for proper planning and execution. One of the most common types of lumber used in residential and commercial construction is the 2×6. However, many people often wonder, what are the true dimensions of a 2×6 in construction?

In this comprehensive guide, we will explore the actual dimensions of a 2×6 board, why these dimensions are different from their nominal size, and how this affects your construction projects. Whether you are building a deck, framing a house, or working on any type of woodworking project, knowing the correct dimensions can save you time, money, and frustration.

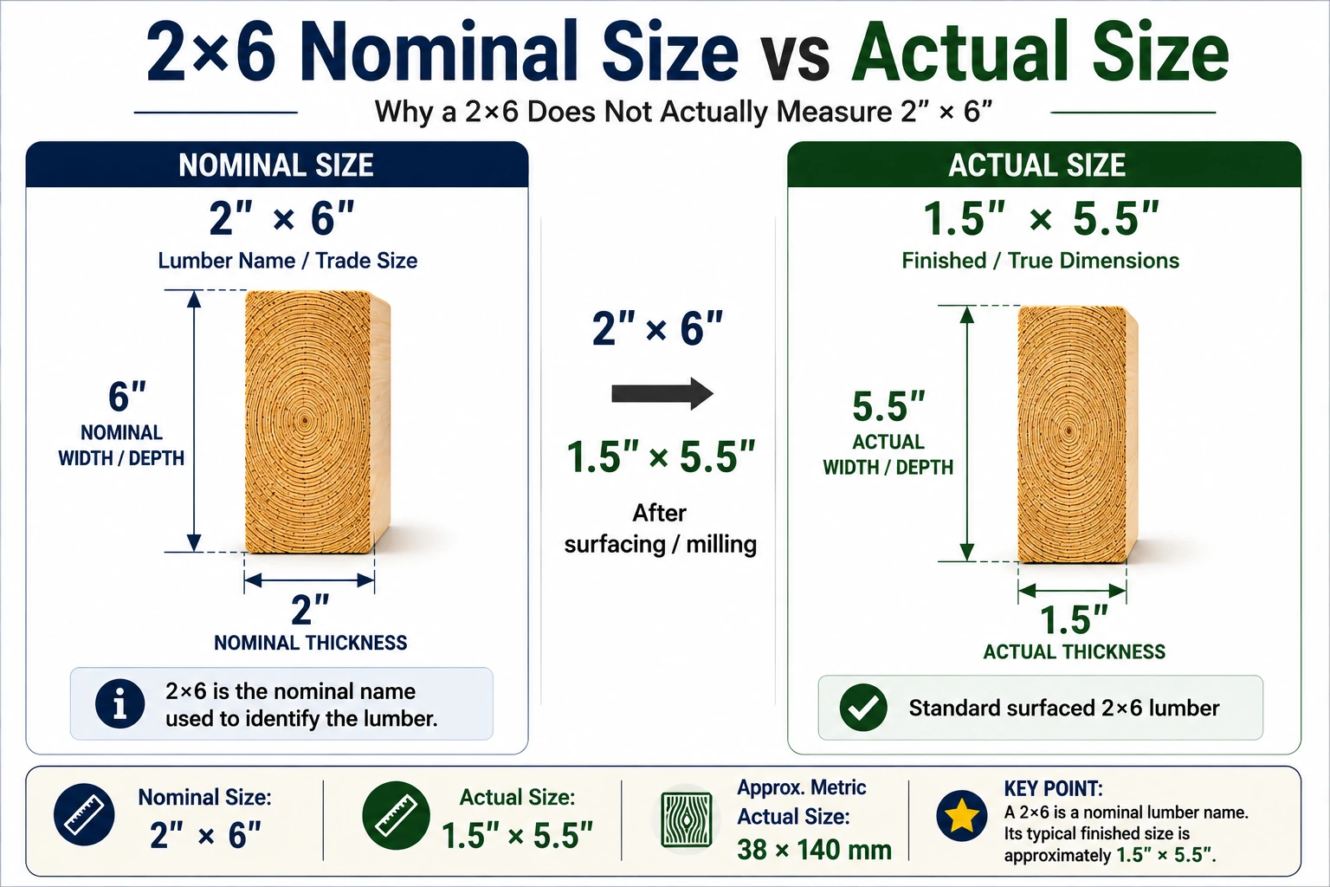

Understanding Nominal vs. Actual Dimensions of Lumber

Before diving into the true dimensions of a 2×6, it’s important to first understand the concept of nominal size versus actual size in lumber.

Nominal Size

The nominal size refers to the size that the lumber is called in the store or on the product label. For example, a 2×6 is typically referred to as a board that is 2 inches by 6 inches. This nominal size is the size of the wood before it is planed, dried, and finished for sale. Nominal sizes are used for ease of identification, but they are not the actual dimensions of the board you purchase.

Actual Size

The actual size is the final size of the lumber after it has been processed. This means that after the lumber is dried, planed, and smoothed, the board loses some of its original dimensions. The actual size of a 2×6 is smaller than its nominal size.

What Are the True Dimensions of a 2×6 in Construction?

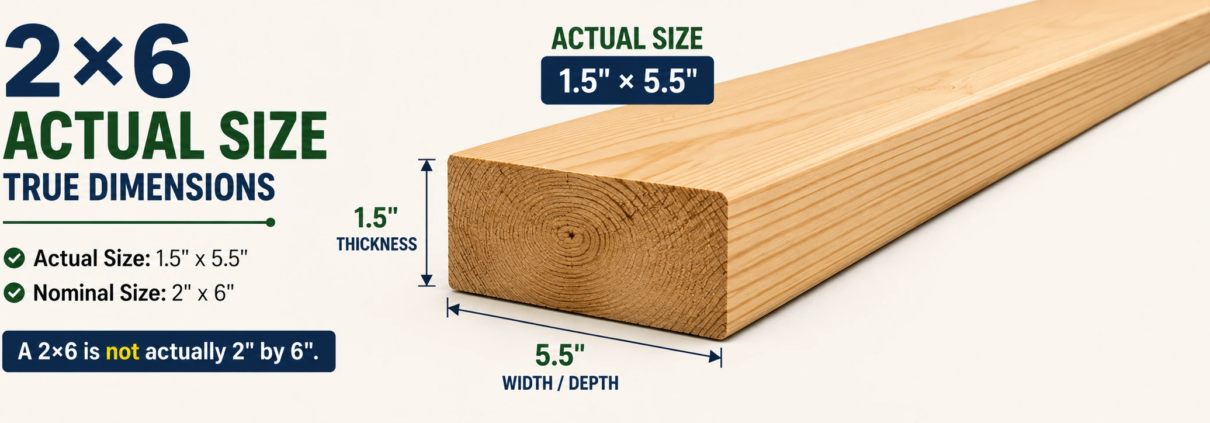

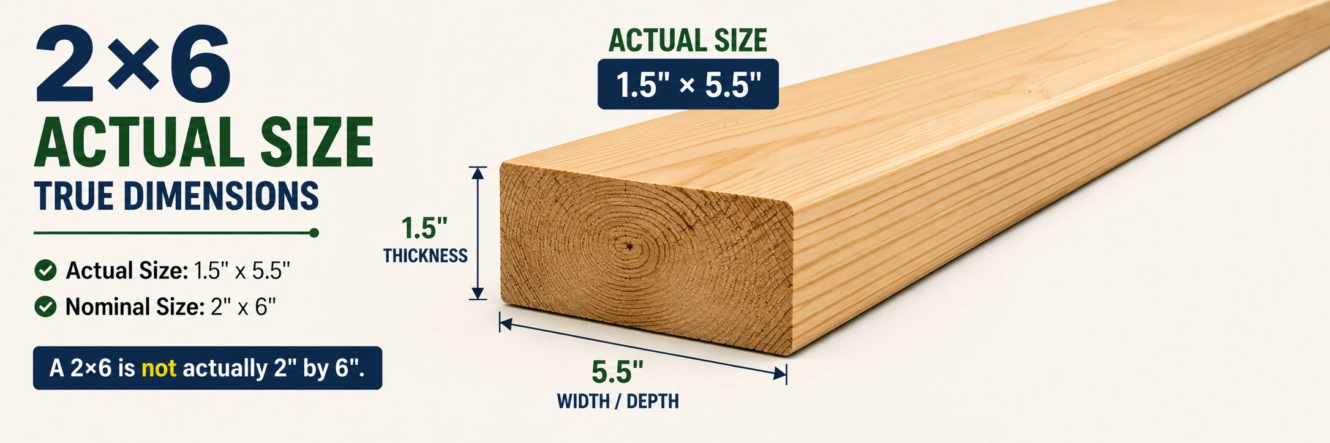

The actual dimensions of a 2×6 are 1.5 inches by 5.5 inches.

Although you may see a 2×6 labeled as such, the board you purchase will be slightly smaller than the label suggests. This discrepancy between nominal and actual size occurs because of the drying and planing processes, which remove moisture and smooth out the wood, resulting in a reduction in size.

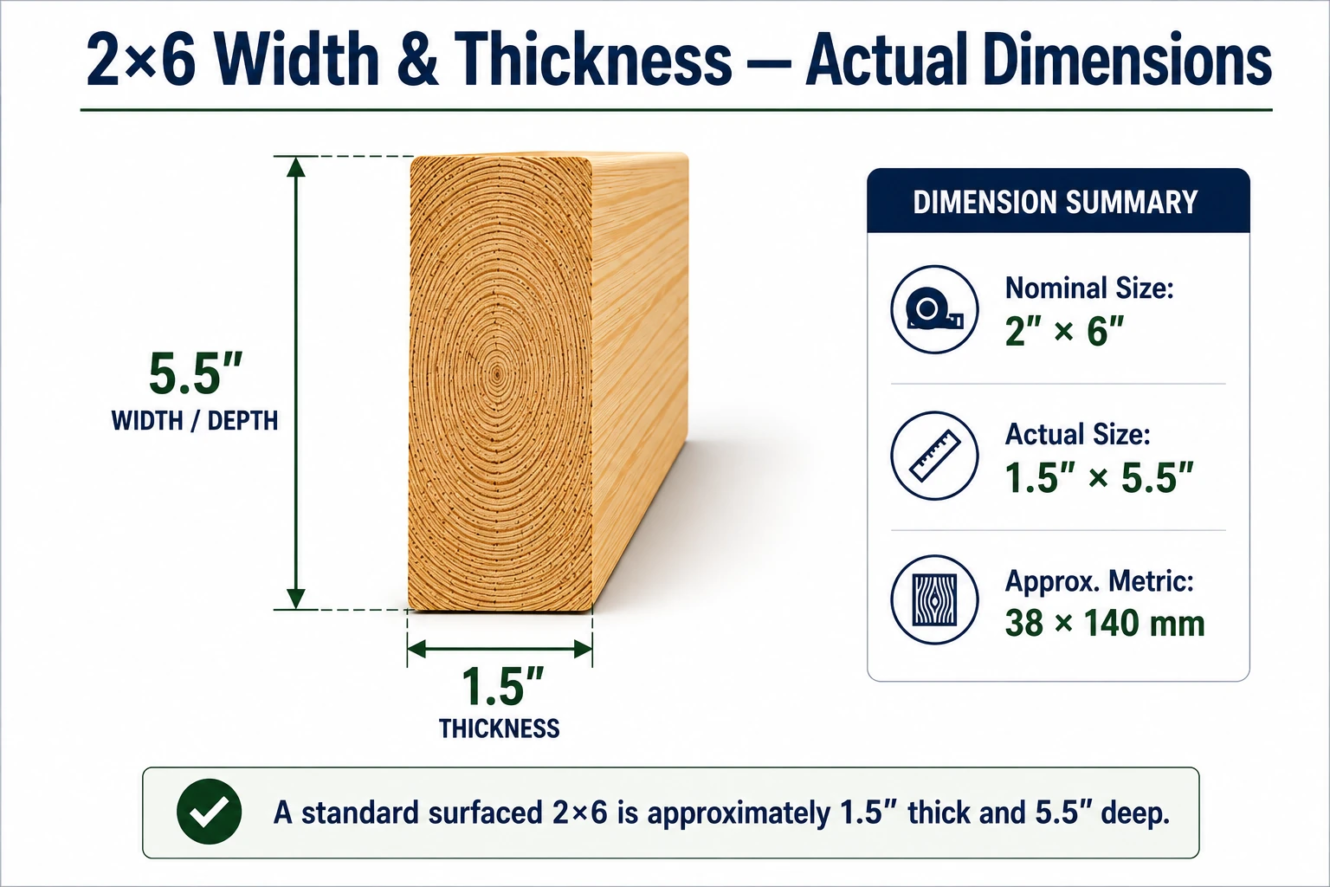

Breaking Down the True Dimensions

  • Nominal size: 2 inches by 6 inches
  • Actual size: 1.5 inches by 5.5 inches

This reduction is standard across most dimensional lumber, such as 2x4s, 2x8s, 2x10s, and 2x12s.

Why Are 2×6 Lumber Dimensions Smaller Than Expected?

There are several reasons for the difference between the nominal and actual dimensions of lumber. The drying process and planing are the primary contributors:

1. Drying Process

Wood is initially harvested from trees with a higher moisture content. When it is cut into lumber, the boards are typically wet and need to be dried before use in construction. As the wood dries, it naturally shrinks slightly. This shrinkage is accounted for in the final actual size of the board.

2. Planing and Smoothing

After the wood is dried, it is planed to smooth out any rough edges and create a uniform surface. The planing process removes a small amount of wood from each side of the board, which leads to the reduction in dimensions.

Both the drying and planing processes are essential for making the lumber more stable and easier to work with, but they are also the reason why the actual size is smaller than the nominal size.

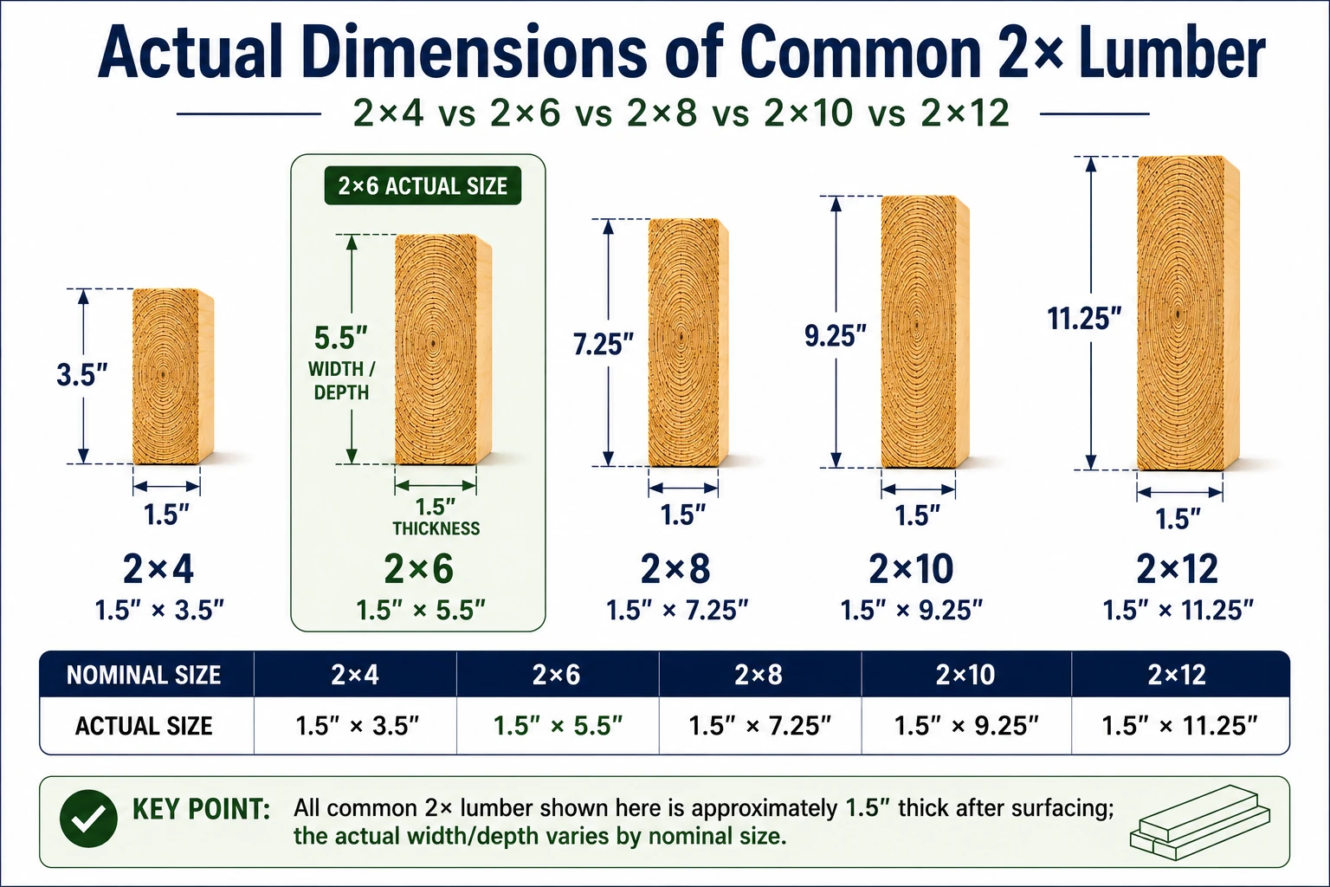

Common Lumber Sizes and Their True Dimensions

The discrepancy between nominal and actual size is not unique to the 2×6. It applies to other common types of lumber as well. Here are some other frequently used nominal sizes and their corresponding actual sizes:

  • 2×4: Nominal size = 2 inches by 4 inches | Actual size = 1.5 inches by 3.5 inches
  • 2×8: Nominal size = 2 inches by 8 inches | Actual size = 1.5 inches by 7.25 inches
  • 2×10: Nominal size = 2 inches by 10 inches | Actual size = 1.5 inches by 9.25 inches
  • 2×12: Nominal size = 2 inches by 12 inches | Actual size = 1.5 inches by 11.25 inches

As you can see, the actual dimensions of dimensional lumber are consistently smaller than their nominal counterparts by half an inch on the width and full inch on the height.

Why Are 2×6 Boards Commonly Used in Construction?

The 2×6 is a highly versatile piece of lumber that serves many purposes in construction. Its actual dimensions of 1.5 inches by 5.5 inches make it a sturdy option for various structural applications. Below are a few reasons why 2×6 lumber is commonly used:

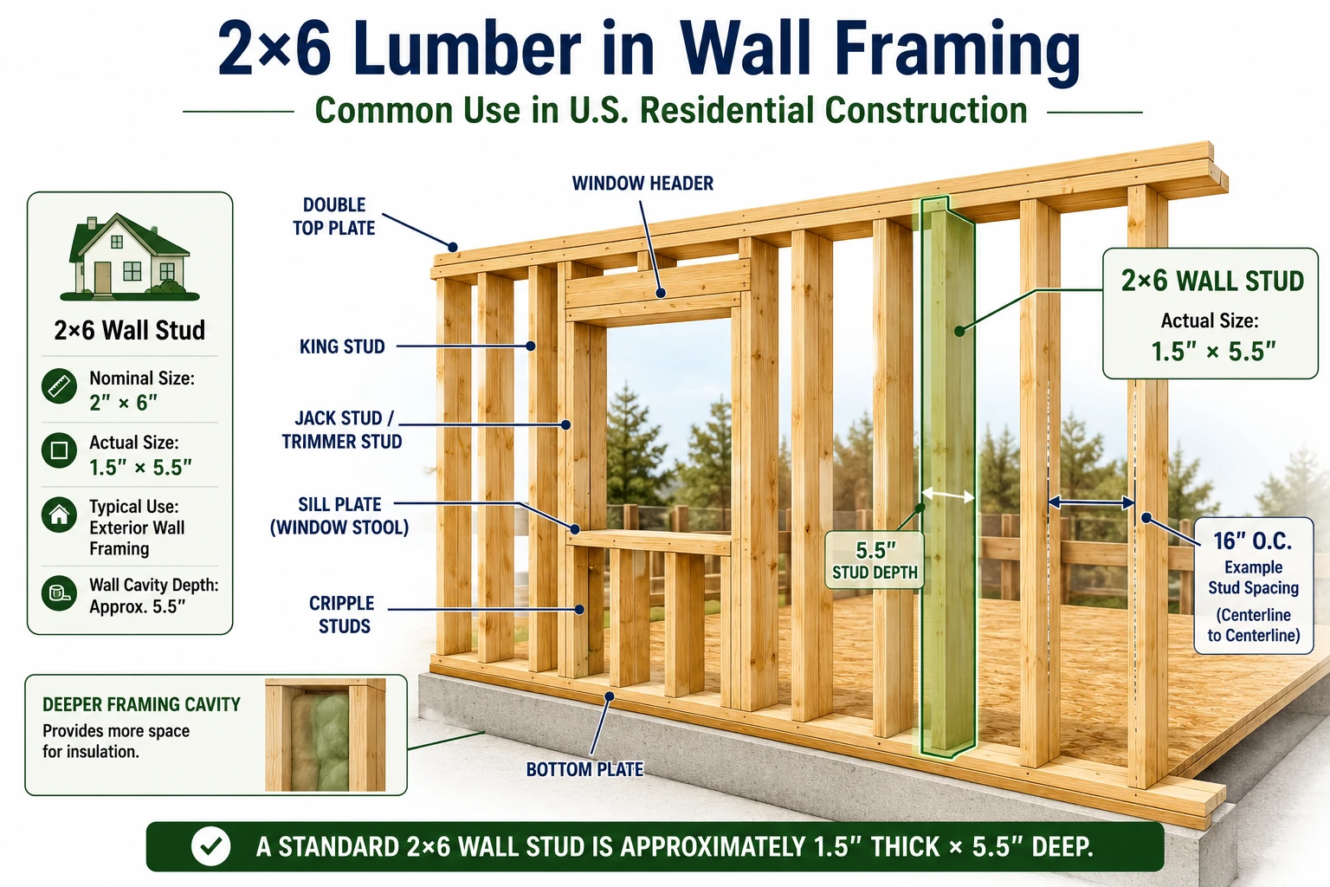

1. Framing for Walls and Structures

A 2×6 board is often used in the framing of walls, especially in areas that require additional structural strength. The extra thickness of the 2×6 (compared to the 2×4) provides more surface area for attaching drywall, sheathing, and other materials. It is also often used in areas with high wind or seismic activity, where extra strength is needed.

2. Flooring and Decking

Due to its durability, the 2×6 is a popular choice for flooring and decking. Its wider surface area and extra strength make it a perfect material for outdoor applications such as decks, porches, and patios. 2×6 boards are also commonly used for stairs, providing a strong, stable surface for foot traffic.

3. Roof Rafters and Beams

In larger buildings, 2x6s are often used in the construction of roof rafters and beams. The added strength of a 2×6 helps to bear the weight of roofing materials and maintain the structure’s integrity. They are typically spaced at regular intervals to support the roof load.

4. Furniture and Woodworking

While 2×6 lumber is primarily used for structural applications, it is also commonly found in furniture making and woodworking. Whether crafting a bookcase, shelving unit, or table, the 1.5 by 5.5 inches of a 2×6 board provides an excellent foundation for creating strong, durable pieces.

How to Measure Lumber Dimensions

When purchasing lumber for your construction project, it’s essential to measure the board correctly to ensure that it meets your project’s specifications. While most lumber is labeled with its nominal size, always double-check the actual dimensions before cutting or building. Here’s how to do it:

Using a Tape Measure

To measure the actual size of the board, use a tape measure and measure the width and thickness of the lumber. For a 2×6, the measurement should be approximately 1.5 inches by 5.5 inches. Always measure at multiple points along the board, as lumber can sometimes warp or change shape.

Checking for Warping or Bowing

Lumber may not always be perfectly straight. Bow or warp can affect the board’s dimensions. When purchasing lumber, inspect each board for straightness to avoid issues during the building process.

Conclusion

Understanding the true dimensions of a 2×6 in construction is critical to ensuring the success of your project. The actual dimensions of a 2×6 are 1.5 inches by 5.5 inches, which is smaller than its nominal size due to drying and planing processes. This information is essential when selecting lumber for framing, flooring, decking, and other applications, as it allows you to plan for the correct materials and measurements.

Make sure to always verify the actual size of any lumber you purchase to avoid errors during your construction or woodworking project.
