What is a Culvert in Construction? Comprehensive Guide to Understanding Culverts in Civil Engineering

In the world of construction, a culvert plays a vital role in managing water flow and ensuring the structural integrity of roads, railways, and other infrastructure. Whether you are involved in road construction, drainage systems, or environmental engineering, understanding the function, design, and types of culverts is crucial. This guide will explore everything you need to know about culverts, their significance in construction, and how they contribute to the overall safety and functionality of infrastructure projects.

What is a Culvert? Definition and Purpose

A culvert is essentially a structure that allows water to flow under a road, railway, or embankment. It functions as a passage for water, often used to redirect streams, rivers, or drainage around construction sites without causing erosion or flooding. Culverts can vary greatly in size, shape, and material, depending on the amount of water flow and the specific requirements of the project.

At its core, a culvert is designed to facilitate the safe passage of water beneath a structure while maintaining the stability of the surrounding area. They are commonly used in:

• Roadways and Highways: To manage surface water and prevent flooding on roads.
• Railways: To ensure the safe passage of water beneath tracks without disrupting the integrity of the railbed.
• Drainage Systems: To redirect stormwater and prevent waterlogging in urban or rural areas.

Types of Culverts in Construction

There are several different types of culverts used in construction, each designed to meet specific needs depending on factors such as water flow, soil conditions, and the type of infrastructure it serves. Below are the primary types of culverts found in construction:

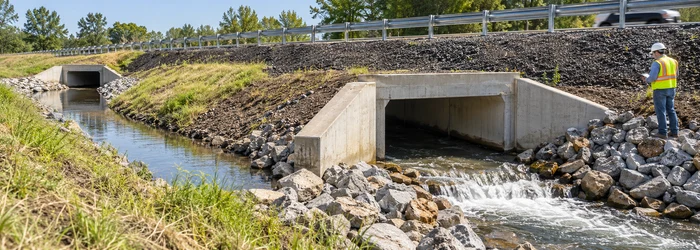

1. Box Culverts

Box culverts are rectangular or square-shaped structures that are typically used for larger flows of water. They are commonly made from reinforced concrete or precast concrete and are popular for their ability to handle high flow rates while maintaining structural integrity.

Key Features:

• Shape: Rectangular or square.
• Materials: Concrete, precast concrete.
• Uses: Large drainage systems, highways, and flood control systems.

Box culverts are designed with wide openings to accommodate substantial water flow and can be installed with or without a floor, depending on the location and conditions.

2. Pipe Culverts

Pipe culverts are the most common type of culverts used for smaller applications such as residential drainage or agricultural runoff. These culverts are typically made from steel, concrete, plastic, or HDPE (high-density polyethylene) pipes.

Key Features:

• Shape: Circular or elliptical.
• Materials: Concrete, steel, HDPE, plastic.
• Uses: Small streams, roads, and driveway culverts.

These culverts are easier to install and require less space, making them ideal for use in locations with limited room or lower water flow.

3. Arch Culverts

Arch culverts feature an arch-shaped opening, which allows them to distribute the water flow more efficiently while also minimizing the amount of material needed for construction. This makes arch culverts ideal for projects where cost-effectiveness and strength are priorities.

Key Features:

• Shape: Semi-circular or elliptical arch.
• Materials: Concrete, stone, steel.
• Uses: Streams, rivers, highways, and low-water crossings.

The arch design provides better resistance against heavy loads and is often used in environments that experience significant rainfall or flooding.

4. Bridge Culverts

A bridge culvert is a hybrid structure that combines the characteristics of both a culvert and a bridge. It is designed to carry water and also support traffic loads such as roads or railway systems. These structures are often used in cases where a full bridge might be too expensive or impractical.

Key Features:

• Shape: Varies (often rectangular, circular, or arch).
• Materials: Concrete, steel.
• Uses: Major highways, flood zones, and railway crossings.

Bridge culverts are often designed with reinforced concrete and include significant structural supports to carry the weight of vehicles or trains.

Materials Used in Culverts

The material used for a culvert is crucial for ensuring durability, stability, and efficient water flow. Common materials used in culvert construction include:

1. Concrete

Concrete is one of the most widely used materials for constructing culverts, particularly for larger and more permanent installations. It offers excellent durability, strength, and resistance to weathering and erosion. Precast concrete culverts are popular because they can be quickly installed and have uniform quality control.

2. Steel

Steel is often used for pipe culverts where a high degree of resistance to rust and corrosion is necessary. Steel culverts are typically galvanized to prevent corrosion and increase their lifespan.

3. Plastic (HDPE)

HDPE (High-Density Polyethylene) is used primarily for smaller culverts and is particularly advantageous due to its lightweight nature, flexibility, and resistance to chemicals. It is often used in residential or agricultural applications where large water flows are not a concern.

4. Stone or Masonry

Stone or masonry is used for older or more traditional culverts, particularly in arch designs. These materials provide a high degree of aesthetic appeal while offering structural strength. However, they are often more labor-intensive and expensive compared to concrete or steel options.

Key Considerations When Designing a Culvert

When planning and constructing a culvert, several critical factors must be considered to ensure the structure’s effectiveness and longevity:

1. Water Flow and Load Capacity

The culvert must be designed to handle the specific water flow conditions it will encounter. This includes considering peak flow rates and any possible flood scenarios. The size of the culvert is determined based on these water flow calculations, and it must be large enough to prevent backups or erosion.

2. Soil and Geotechnical Conditions

The soil and geotechnical conditions of the site play a significant role in determining the type of culvert to be used. For instance, soil stability and the depth of water table can affect how deeply the culvert must be buried and the kind of materials used for construction.

3. Environmental Impact

Constructing a culvert can have an impact on local ecosystems, particularly in areas where natural water flow is disrupted. It is essential to assess the potential effects on fish migration, aquatic habitats, and nearby wildlife. Regulatory requirements may also require permits or environmental assessments before construction begins.

4. Maintenance and Durability

Culverts require regular maintenance to ensure they function properly, especially when located in high-traffic or flood-prone areas. Clogging by debris, sediment buildup, or damage caused by external forces can all affect the culvert’s effectiveness. Therefore, it is important to choose materials and designs that can withstand wear and tear over time.

Culvert Installation: A Step-by-Step Process

The installation of a culvert requires careful planning and execution to ensure that it functions correctly and efficiently. Below is a general overview of the installation process:

Step 1: Site Preparation

Begin by clearing the area where the culvert will be installed. This involves removing vegetation, debris, and any obstacles that might interfere with the construction process. It is essential to prepare the ground to the correct level to ensure the culvert is positioned accurately.

Step 2: Excavation

Excavate the trench to the proper depth and width, allowing enough space for the culvert and any necessary bedding material (such as gravel). Proper excavation ensures that the culvert will be properly supported and aligned.

Step 3: Culvert Placement

Place the culvert in the trench, ensuring it is correctly aligned with the flow of water. This may require using equipment like cranes or backhoes, particularly for larger culverts. Once in position, the culvert should be leveled and properly aligned.

Step 4: Backfilling and Compaction

Once the culvert is in place, backfill the trench with appropriate material, such as gravel or soil, and compact the material to provide stability. It is essential that the backfill is done evenly to prevent future settlement.

Step 5: Final Inspection and Testing

After installation, conduct a final inspection to ensure the culvert is correctly positioned and that there are no issues with the water flow. Testing the culvert with controlled water flow can help identify any issues with clogging, misalignment, or structural problems.

Conclusion

Understanding the role of a culvert in construction is critical for ensuring the safety, longevity, and effectiveness of infrastructure projects. Whether you are dealing with roadways, railways, or drainage systems, choosing the right type of culvert, selecting suitable materials, and adhering to proper installation practices are essential steps in achieving successful outcomes.
