What is Sub Base in Construction?

In construction, a sub base is an essential component of the foundation system that plays a pivotal role in ensuring the durability and stability of the structure. Whether you are building a road, pavement, or foundation, the sub base provides the necessary support to the surface layers, distributing the load and reducing the risk of structural failure. This article will cover everything you need to know about sub base in construction, including its functions, types, materials used, and the importance of proper installation.

Understanding the Role of Sub Base in Construction

The sub base is the layer of material placed directly under the base course of a construction project. It lies beneath the aggregate base and provides additional support to the load-bearing capacity of the structure. The sub base plays a key role in preventing the settling of the surface layers and in maintaining the strength of the foundation throughout its lifespan.

This underlying layer is designed to distribute loads evenly, improving drainage, reducing frost heave, and enhancing the overall structural integrity of the project. When built and installed correctly, a sub base extends the lifespan of roads, driveways, walkways, and other construction projects.

Key Functions of Sub Base in Construction

1. Load Distribution

One of the primary functions of a sub base is to provide load distribution. The sub base helps to evenly spread the weight and stress from the surface layers of the pavement, foundation, or road onto the underlying soil. This ensures that no single area bears too much weight, which could lead to cracks, sinkage, or uneven settlement. By distributing the load effectively, the sub base helps prevent damage to the surface over time, maintaining the stability and strength of the overall structure.

2. Prevention of Settling

A sub base also helps prevent settling, which is the gradual sinking or shifting of the surface layer due to excessive weight or poor ground conditions. Without a proper sub base, the surface layer may sink into the soil, leading to uneven surfaces or structural failure. The sub base serves as a buffer between the soil and the surface layer, minimizing the potential for settling and ensuring a level and stable foundation for the entire structure.

3. Drainage Improvement

Effective drainage is a critical component of any construction project. A well-designed sub base improves water flow and prevents the accumulation of moisture underneath the surface. This is particularly important in areas with high rainfall or where freezing temperatures are common, as water buildup can lead to frost heave, which can cause significant damage to the foundation and surface layers. The sub base enhances drainage by allowing water to flow through the material and drain away, keeping the surface dry and reducing the risk of moisture-related issues.

4. Frost Protection

In colder climates, frost heave can be a major concern for surface layers such as pavements, roads, and foundations. When water beneath the surface freezes, it can expand and cause the surface to lift, crack, or become uneven. A sub base can help prevent frost heave by acting as a barrier, preventing water from accumulating in the ground beneath the surface. Proper installation of a sub base with appropriate drainage is essential for protecting structures from damage caused by freezing and thawing cycles.

5. Improved Structural Integrity

A well-constructed sub base improves the overall structural integrity of a construction project. It provides the foundation with the necessary strength to bear the weight of the surface layers and any external forces. By ensuring that the surface layers are supported evenly and securely, the sub base contributes to the long-term durability and stability of the entire structure.

Types of Sub Base Materials

The materials used in a sub base can vary depending on the type of construction, soil conditions, and the specific requirements of the project. However, most sub base materials are derived from natural or recycled aggregates, which provide strength and stability.

1. Crushed Stone

Crushed stone is one of the most common materials used for sub bases. It is highly durable and provides excellent load-bearing capacity. Crushed stone is often used for construction projects like roads, driveways, and pavements because of its ability to withstand heavy traffic loads. The angular shape of the stones allows them to interlock tightly, creating a stable and durable sub base.

2. Gravel

Gravel is another widely used material for sub bases. It is composed of small, loose stones and offers good drainage properties. While gravel may not provide as much strength as crushed stone, it can be an effective choice for low-load applications or in areas where drainage is a priority. Gravel is also more cost-effective than some other sub base materials.

3. Sand

Sand is sometimes used as a sub base material, especially in areas where the soil is sandy or has poor compaction characteristics. Sand provides a good leveling surface and can be compacted to create a stable foundation. However, it does not offer as much structural support as other materials, making it more suitable for less demanding applications.

4. Recycled Concrete Aggregate (RCA)

For environmentally conscious projects, recycled concrete aggregate (RCA) can be used as a sub base material. RCA is made from crushed concrete debris, offering a sustainable alternative to traditional materials. It provides the strength and stability required for sub base construction, with the added benefit of reducing construction waste.

5. Stabilized Sub Base

A stabilized sub base is created by combining aggregates like crushed stone or gravel with binding agents such as cement, lime, or asphalt. This type of sub base is particularly useful in areas with unstable soils or where additional strength is required. The binding agents improve the compaction and durability of the sub base, ensuring that it can withstand heavy loads and environmental stresses.

Sub Base Construction Process

1. Site Preparation

The first step in constructing a sub base is to prepare the site. This includes clearing the area of any vegetation, debris, or existing structures. The ground must also be leveled and compacted to ensure that the sub base is built on a stable surface. In some cases, the soil may need to be tested to determine its suitability for supporting the sub base material.

2. Material Selection

Once the site is prepared, the appropriate sub base material is selected. Factors such as the load requirements, drainage needs, and soil conditions will influence the choice of material. The material is then delivered to the construction site, ready for installation.

3. Laying the Sub Base

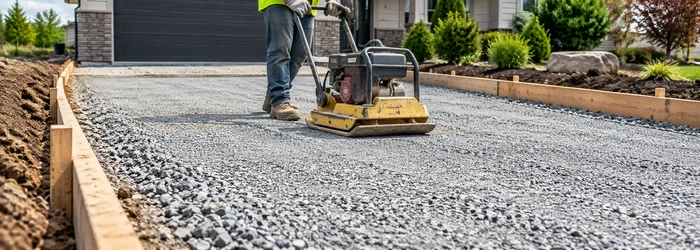

The sub base material is spread evenly across the prepared site. It is typically laid in layers, with each layer being compacted before the next layer is added. The compaction process is crucial to ensure that the sub base is dense and stable. Heavy machinery such as rollers or compactors is used to compact the material, creating a firm foundation for the surface layers.

4. Leveling and Shaping

Once the sub base material is laid and compacted, it is carefully leveled and shaped to the required specifications. The sub base must be smooth and even to ensure proper load distribution and drainage. Any areas that are too high or low are adjusted, and the surface is checked for proper slope to allow water to flow away from the structure.

5. Final Compaction and Testing

The final step in the sub base construction process involves re-compacting the entire area to ensure that the material is firmly in place. Testing may be conducted to ensure that the sub base meets the necessary density and compaction standards. Once the sub base is completed, it is ready to support the base course and surface layers of the construction project.

Conclusion

The sub base is a crucial component in construction that provides essential support, improves drainage, and enhances the structural integrity of roads, pavements, and foundations. Whether using crushed stone, gravel, or recycled concrete, the sub base ensures that the surface layers are stable and durable. By understanding the role of a sub base and carefully selecting the appropriate materials and construction methods, you can ensure the long-lasting success of your construction project.
