Catwalk Ceiling in Construction: Purpose, Design, Materials & Applications
In the world of construction, functionality and accessibility often intersect with design and structural planning. One such intersection is found in the form of a catwalk ceiling. This feature is not always visible to building occupants, but it plays a critical role in facilitating maintenance, safety, and operational efficiency, especially in commercial, industrial, and entertainment venues.
This article delves into the meaning of catwalk ceilings in construction, their practical uses, common design standards, safety considerations, materials, and where they are most commonly implemented.
What Is a Catwalk Ceiling in Construction?

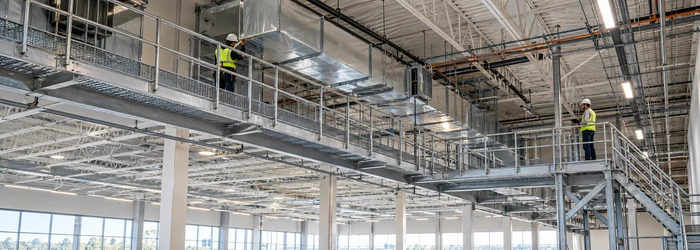

A catwalk ceiling refers to a narrow, elevated platform or walkway installed just above or within the ceiling level of a structure. These catwalks are typically used to allow safe, walkable access across overhead areas—such as ceilings in auditoriums, arenas, warehouses, theaters, or commercial buildings—without disturbing the occupied space below.
Often hidden above the suspended or drop ceiling, these catwalks are strategically placed for accessing mechanical, electrical, and lighting systems.
Purpose of Catwalk Ceilings
Catwalk ceilings serve multiple vital functions in modern buildings:
🔧 Maintenance Access
Enable technicians and engineers to inspect, repair, or replace ceiling-mounted systems like ductwork, sprinklers, or wiring without needing ladders or scaffolding.
💡 Lighting and AV Equipment Operation
Provide access to high-mounted lighting rigs, speakers, projectors, and rigging systems, especially in performance venues and commercial buildings.
🔍 Inspection and Monitoring
Allow for regular inspections of structural components like roof trusses, joists, and fire suppression systems.
🚫 Avoid Disruption
Workers can perform overhead tasks without disturbing ongoing operations or foot traffic below.
Common Locations for Catwalk Ceilings
| Building Type | Purpose of Catwalk Ceiling |
|---|---|
| Theaters and Auditoriums | Access to lighting, audio systems, and rigging |
| Industrial Plants | Inspection of piping, valves, and ceiling-mounted machinery |
| Sports Arenas | Access for camera systems, lighting, scoreboard maintenance |
| Convention Centers | Management of overhead equipment and temporary installations |
| Airports and Terminals | Maintenance of signage, lighting, and ventilation systems |
Design Considerations for Catwalk Ceilings
Designing a catwalk ceiling requires careful planning to ensure structural safety, functionality, and compliance with building codes.
1. Structural Integrity
- Must support live loads (workers, tools) and sometimes light equipment.
- Typically rated for 50–75 pounds per square foot.
2. Walkway Width
- Minimum of 18 inches, but 24–36 inches is preferred for comfort and safety.
3. Fall Protection
- Guardrails (minimum 42 inches), mid-rails, and toe boards are required if there’s an unprotected fall edge.
4. Accessibility
- Access via stairs, ladders, or service doors.
- Emergency egress routes should be planned and clearly marked.
5. Lighting and Visibility
- Overhead or side-mounted low-glare lighting for nighttime or enclosed use.
- Emergency lighting in case of power failure.
Materials Used in Catwalk Ceilings
| Material | Advantages | Common Use |
|---|---|---|
| Galvanized Steel | Strong, corrosion-resistant, and suitable for long spans | Industrial facilities, arenas |
| Aluminum | Lightweight and corrosion-resistant | Theaters, studios, temporary catwalks |
| Grated Steel Deck | Provides slip resistance and drainage | Wet or dusty environments |
| Fiberglass (FRP) | Non-conductive and chemical-resistant | Utilities and labs with electrical hazards |
Installation Process Overview
- Structural Evaluation
- Assess the building framework to determine mounting points and load capacity.
- Design Layout
- Define path, width, height, access points, and guardrail requirements.
- Fabrication
- Cut and weld catwalk sections to exact specifications.
- Installation
- Install support beams, fasten walkways, railings, and safety components.
- Inspection
- Perform structural tests and safety evaluations to meet code compliance.
Advantages of Using Catwalk Ceilings
| Benefit | Explanation |
|---|---|
| Safe Elevated Access | Eliminates the need for ladders and reduces fall hazards |
| Operational Continuity | Maintenance can occur above ceiling without disrupting below-floor activities |
| Efficient Maintenance | Easy access reduces time and effort to perform inspections or repairs |
| Long-Term Cost Savings | Prevents damage to ceilings and lowers setup time for routine maintenance |
| Hidden Infrastructure | Keeps mechanical systems out of public view while maintaining accessibility |
Safety Requirements and Regulations
Catwalk ceilings must comply with several building and safety codes:
🔹 OSHA (U.S.) Requirements
- Guardrails: Required on any platform more than 4 feet above lower level.
- Load Ratings: Must meet or exceed expected load, typically 50 lbs/sq ft.
- Slip Resistance: Walkways must have non-slip surfaces, especially in damp areas.
- Access: Must be safe and unobstructed; emergency egress plans are mandatory.
🔹 IBC (International Building Code)
- Considers live and dead loads
- Addresses fire rating and compartmentation (especially above ceilings)
- Mandates lighting, signage, and railing dimensions
Catwalk Ceilings in Theaters: A Specialized Use Case
In theater and stage construction, catwalk ceilings are vital to lighting design and production safety. These walkways often run above the auditorium or stage and allow operators to:
- Focus and angle lights
- Adjust rigging
- Replace bulbs or gels
- Drop microphones or curtains
Theater catwalks are designed with minimal visual impact and are often painted black or hidden behind acoustical panels.
Residential vs. Commercial Applications
While rare, residential catwalk ceilings may be used in large custom homes or lofts to:
- Connect mezzanines or upper-level rooms
- Provide visual drama in vaulted or cathedral ceilings
- Access overhead storage or utilities
In contrast, commercial catwalk ceilings are far more common and often integrated during the design phase for long-term utility and maintenance access.
Catwalk Ceiling vs Suspended Catwalk
| Aspect | Catwalk Ceiling | Suspended Catwalk |
|---|---|---|
| Location | Above or within ceiling area | Hung by rods/cables from the structural roof |
| Visibility | Usually hidden from general public | May be exposed, especially in industrial buildings |
| Support Method | Attached to trusses, joists, or secondary framing | Suspended using hardware (rods, cables, chains) |
| Usage Scenario | Lighting access, maintenance in enclosed buildings | Over machinery, large open spaces, or roof areas |
Maintenance Guidelines
To ensure the longevity and functionality of catwalk ceilings, regular maintenance is essential:
- Quarterly inspections of structural components and fasteners
- Non-slip surfacing checks
- Lighting maintenance for visibility and safety
- Access points review for emergency readiness
- Rust and corrosion treatment, especially in humid environments
Challenges in Catwalk Ceiling Construction
| Challenge | Solution |
|---|---|
| Limited space above ceiling | Use of narrow-width, lightweight materials |
| Vibration from equipment | Install vibration-dampening brackets and flexible joints |
| Code compliance in retrofits | Engage a structural engineer for proper design and certification |
| Restricted visual impact (theaters) | Paint catwalk black or hide with acoustical ceiling panels |
Conclusion
A catwalk ceiling in construction is an essential infrastructure element that facilitates maintenance, safety, and functionality in a wide range of buildings—from theaters and stadiums to factories and airports. These walkways, though often hidden from view, provide critical overhead access for electrical, lighting, HVAC, and fire safety systems.
When designed and installed correctly, catwalk ceilings contribute to safe building operations, reduce long-term maintenance costs, and improve overall efficiency for facility managers and technical crews. With proper safety considerations and material selection, catwalk ceilings become a lasting, valuable asset in any building’s structural and operational design.
FAQs: Catwalk Ceiling in Construction
1. What is a catwalk ceiling?
A catwalk ceiling is an elevated walkway installed above or within a building’s ceiling structure to provide access to mechanical and electrical systems.
2. Where are catwalk ceilings typically found?
They are commonly found in theaters, arenas, industrial plants, commercial buildings, and large public facilities like airports or auditoriums.
3. Are catwalk ceilings safe to walk on?
Yes, when properly constructed and maintained, they are designed to support human traffic and light equipment safely.
4. What materials are used in catwalk ceilings?
Galvanized steel, aluminum, fiberglass (FRP), and steel grating are commonly used.
5. Do catwalk ceilings require railings?
Yes, OSHA requires guardrails on walkways that are 4 feet or more above a lower level, along with mid-rails and toe boards.
6. How wide are catwalk ceilings?
They are usually between 18 and 36 inches wide, depending on the building’s needs and code requirements.
7. What is the difference between a catwalk and a suspended walkway?
A catwalk ceiling may be supported by beams or trusses, while a suspended walkway hangs from the roof using cables or rods.
8. Can catwalk ceilings be added to existing buildings?
Yes, but it requires careful structural evaluation and professional installation to meet safety and code standards.
9. Are catwalk ceilings visible to building occupants?
Usually not. They are often hidden behind ceiling tiles or installed above visual lines in spaces like theaters or warehouses.
10. What industries most commonly use catwalk ceilings?
Theater production, manufacturing, logistics, facility management, aviation, and utilities are top users of catwalk ceilings.
