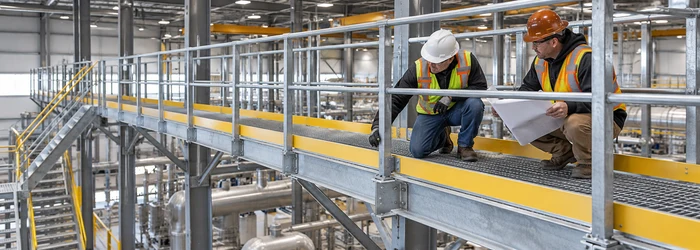

Catwalk Design Standards in Construction: Codes, Dimensions, Safety & Guidelines
In construction and industrial facility design, catwalks play a vital role in providing safe, elevated access to equipment, utilities, and hard-to-reach structural areas. Whether used in factories, theaters, power plants, or even modern residential spaces, catwalks must meet specific design standards to ensure structural safety, operational efficiency, and compliance with local and international regulations.
This article explores the catwalk design standards in construction, including dimensions, structural requirements, materials, safety protocols, and regulatory codes to be followed in different construction scenarios.
What Are Catwalk Design Standards?
Catwalk design standards refer to a set of technical guidelines and regulatory codes that govern the design, installation, and use of elevated walkways in construction. These standards address:
- Structural integrity
- Width and clearance
- Fall protection systems
- Load-bearing capacity
- Access and egress
- Material selection
- Compliance with OSHA, IBC, and ANSI codes
Why Are Catwalk Design Standards Important?
Without adhering to established standards, catwalks may become hazardous for workers, cause costly legal issues, or fail under load during routine operations. Proper design ensures:
- Worker safety
- Structural stability
- Code compliance
- Ease of maintenance access
- Long-term durability
Key Catwalk Design Standards in Construction
1. Width of the Catwalk
| Standard | Minimum Requirement |
|---|---|
| OSHA | 18 inches (minimum) |
| IBC | 24–36 inches recommended |
| ANSI | 24 inches preferred |
- For comfort and two-way access, 30–36 inches is typically used in industrial and commercial designs.
2. Guardrails and Fall Protection
Catwalks elevated more than 4 feet (1.2 meters) above the floor must include:
- Top rail height: 42 inches (±3 inches)
- Mid-rail height: Positioned halfway between the top rail and the platform
- Toe boards: Minimum 4 inches high to prevent tools/debris from falling
Additional options:
- Safety netting
- Fall arrest systems
- Harness anchor points for high-risk zones
3. Load-Bearing Requirements
| Type of Load | Standard Load Rating |
|---|---|
| Live Load (pedestrian) | 50–75 pounds per square foot (psf) |
| Concentrated Load | Must withstand at least 200 lbs at any point |
- Loads are determined by usage frequency, equipment being carried, and environmental factors like wind or seismic activity.
4. Clearance Requirements
| Aspect | Minimum Clearance |
|---|---|
| Overhead Height | At least 7 feet (2.13 m) from floor to ceiling |
| Handrail Gaps | Should not allow a 4-inch sphere to pass through |
- Ensure enough head clearance for workers wearing PPE or helmets.
- Vertical clearance is particularly crucial in theaters, plants, and warehouses.
5. Surface & Traction
Catwalk platforms must be:
- Slip-resistant, using diamond plate, perforated metal, or grating
- Designed with drainage capabilities to prevent water pooling
- Treated with anti-corrosive coatings in damp or chemical-prone environments
6. Access & Egress
- Access to catwalks should be via stairs or ladders with guardrails and handrails
- Provide clearly marked egress routes and emergency lighting
- Entrances must be free of obstructions and wide enough for tool or equipment carrying
7. Material Guidelines
| Material | When to Use |
|---|---|
| Galvanized Steel | Standard for industrial, corrosion-resistant and durable |
| Aluminum | Lightweight and easy to install; used in theaters or modular zones |
| Fiberglass (FRP) | Non-conductive, used near electricity or chemicals |
| Wood | Temporary or low-cost applications (not for permanent elevated use) |
Relevant Building Codes & Regulations
🔹 OSHA – Occupational Safety and Health Administration
Key regulations:
- 1910.28: Fall protection
- 1910.29: Guardrails and safety systems
- 1910.23: Walking-working surfaces
🔹 IBC – International Building Code
Covers:
- Load capacity
- Handrail design
- Fire safety
- Accessibility standards (especially for public buildings)
🔹 ANSI – American National Standards Institute
ANSI A1264.1 outlines:
- Safety standards for walkways and working surfaces
- Slip-resistance and handrail height
- Emergency egress systems
Fire Safety & Emergency Requirements
- Catwalks must not obstruct sprinkler systems or emergency lighting
- Should be designed with non-combustible materials in fire-sensitive zones
- Include fire-resistant coatings where applicable
- Ensure fire exits are reachable within standard travel distance (usually ≤75 feet)
Design Considerations Based on Use Case
| Industry | Design Focus |
|---|---|
| Manufacturing | Load-bearing, anti-slip grating, chemical resistance |
| Entertainment | Low visual impact, black finishes, quiet surfaces |
| Theater | Rigging and light access, catwalk hidden behind acoustic panels |
| Residential Lofts | Architectural aesthetics, glass railings or wood finishes |
| Aviation & Transit | Wide paths for signage and lighting maintenance |
Typical Catwalk Design Drawing Components
A standard catwalk design blueprint includes:
- Platform width and elevation
- Support beam locations
- Handrail and guardrail details
- Access stair or ladder details
- Material specifications
- Load ratings
- Safety signage placement
- Lighting and emergency routes
Table: Summary of Catwalk Design Standards
| Component | Standard |
|---|---|
| Minimum Width | 18″ (OSHA); 24–36″ preferred |
| Guardrail Height | 42″ (top), 21″ (mid-rail), 4″ (toe board) |
| Load Capacity | 50–75 psf; 200 lb point load |
| Vertical Clearance | 7 feet minimum |
| Surface Type | Non-slip grating or anti-slip plates |
| Material | Galvanized steel, aluminum, FRP, wood (temp) |
| Access/Egress | Clear paths, stairs/ladders, exit signage |
Best Practices for Catwalk Design
- Consult a structural engineer before design or retrofit
- Use prefabricated modular systems when possible for easy installation
- Conduct load testing before occupancy
- Perform routine inspections for wear, rust, or damage
- Install lighting along walkway for low-light operation
- Ensure railing systems are firmly anchored and meet code
Common Mistakes to Avoid
- Designing too narrow for worker or equipment access
- Ignoring safety railing height or spacing
- Using materials unsuited for corrosive or high-moisture areas
- Inadequate fall protection above active zones
- Skipping emergency access planning
Conclusion
Designing a catwalk in construction isn’t just about connecting two points—it’s about ensuring safe, functional, and code-compliant overhead access in complex environments. Whether it’s used in a warehouse, theater, factory, or utility plant, following catwalk design standards ensures the safety of personnel, enhances accessibility, and supports long-term maintenance goals.
From guardrails and load ratings to anti-slip surfaces and fire safety, every element of a catwalk must be designed with purpose and precision. Adhering to OSHA, IBC, and ANSI guidelines is not optional—it’s critical.
FAQs: Catwalk Design Standards in Construction
1. What is the minimum width for a construction catwalk?
OSHA requires at least 18 inches, but 24 to 36 inches is typically recommended for comfort and safety.
2. Are guardrails required on all catwalks?
Yes, any catwalk over 4 feet high must include guardrails, mid-rails, and toe boards.
3. How much weight should a catwalk support?
Catwalks should typically support 50–75 pounds per square foot and at least 200 pounds at any single point.
4. What materials are best for catwalk construction?
Galvanized steel is the most durable and commonly used, followed by aluminum and FRP for specific environments.
5. Can catwalks be suspended?
Yes, suspended catwalks are hung from structural ceilings using cables or rods and must be designed to handle both live and dead loads.
6. Are catwalks allowed in residential buildings?
Yes, but they are more common in loft-style homes or custom designs with vaulted ceilings.
7. Is it mandatory to have slip-resistant surfaces on catwalks?
Yes. OSHA requires all walking surfaces, including catwalks, to be non-slip and well-drained.
8. What codes apply to catwalk design?
Key standards include OSHA 1910.28, 1910.29, the International Building Code (IBC), and ANSI A1264.1.
9. Can catwalks be prefabricated?
Absolutely. Many modular systems are available and comply with all safety standards when installed correctly.
10. Who should design a catwalk system?
A licensed structural engineer should oversee catwalk design to ensure it meets all safety, structural, and building code requirements.
