What Is a 2×8? Actual Size, Dimensions & Common Uses

A 2×8 is a common size of dimensional lumber used in residential and light-frame construction in the United States. Despite its name, a finished 2×8 board does not actually measure 2 inches by 8 inches. A typical surfaced 2×8 measures approximately 1.5 inches thick by 7.25 inches wide.

The term 2×8 refers to the lumber’s nominal size, which is the standard trade name used when buying, specifying, and discussing dimensional lumber.

Builders may use 2×8 lumber for applications such as floor framing, roof framing, deck construction, blocking, headers in appropriate designs, and other structural or non-structural projects. However, simply knowing that a board is a 2×8 does not tell you how much weight it can carry or how far it can safely span.

Structural performance also depends on factors such as:

• Wood species
• Lumber grade
• Span
• Joist or rafter spacing
• Load conditions
• Moisture conditions
• Member orientation
• Connections and support conditions
• Applicable building-code requirements

This guide explains what 2×8 lumber means, its actual dimensions, common applications, available lengths, wood species, grades, and the important factors to consider before using it in a construction project.

Quick Answer: What Does 2×8 Mean?

A 2×8 is a nominal lumber designation.

A typical modern surfaced 2×8 has the following dimensions:

Therefore:

Nominal size: 2″ × 8″
Typical actual size: 1.5″ × 7.25″

The nominal dimensions are used as the standard lumber name, while the smaller actual dimensions represent the approximate finished dimensions of commonly surfaced dimensional lumber.

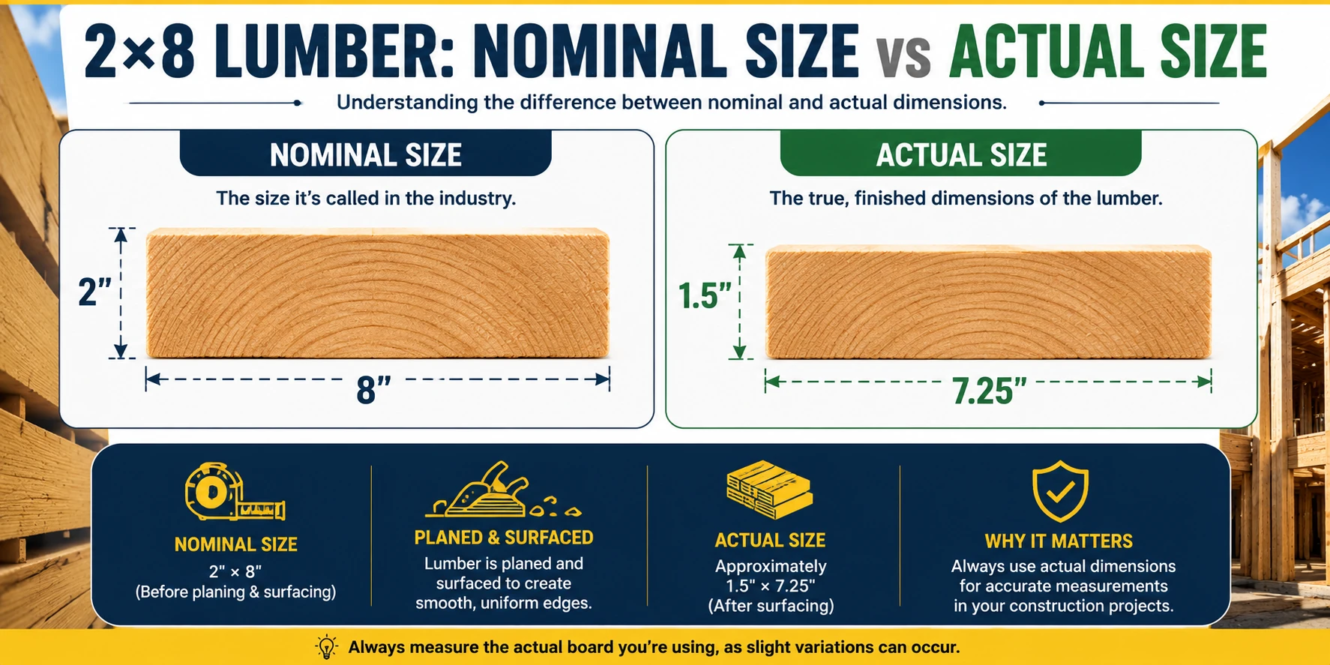

Why Isn’t a 2×8 Actually 2 Inches by 8 Inches?

This is one of the most common questions people have when they first work with dimensional lumber.

The 2×8 designation is a nominal size rather than the final finished size.

During lumber production, boards are processed and surfaced to produce more uniform dimensions and smoother faces. The finished dimensions are consequently smaller than the nominal designation.

For a typical modern 2×8:

2″ × 8″ nominal → approximately 1.5″ × 7.25″ actual

This difference is normal and applies to many standard dimensional-lumber sizes.

For example:

The nominal designation remains useful because it provides builders, designers, suppliers, and contractors with a standardized way to identify lumber sizes.

Is a 2×8 7.25 Inches or 7.5 Inches Wide?

A typical surfaced 2×8 used in modern U.S. construction is approximately 7.25 inches deep, not 7.5 inches.

Its usual finished dimensions are approximately:

1.5″ × 7.25″

However, actual measurements can vary slightly because of manufacturing tolerances, moisture content, drying, shrinkage, and the specific lumber product.

When dimensions are critical, measure the actual material being installed and follow the applicable plans and specifications.

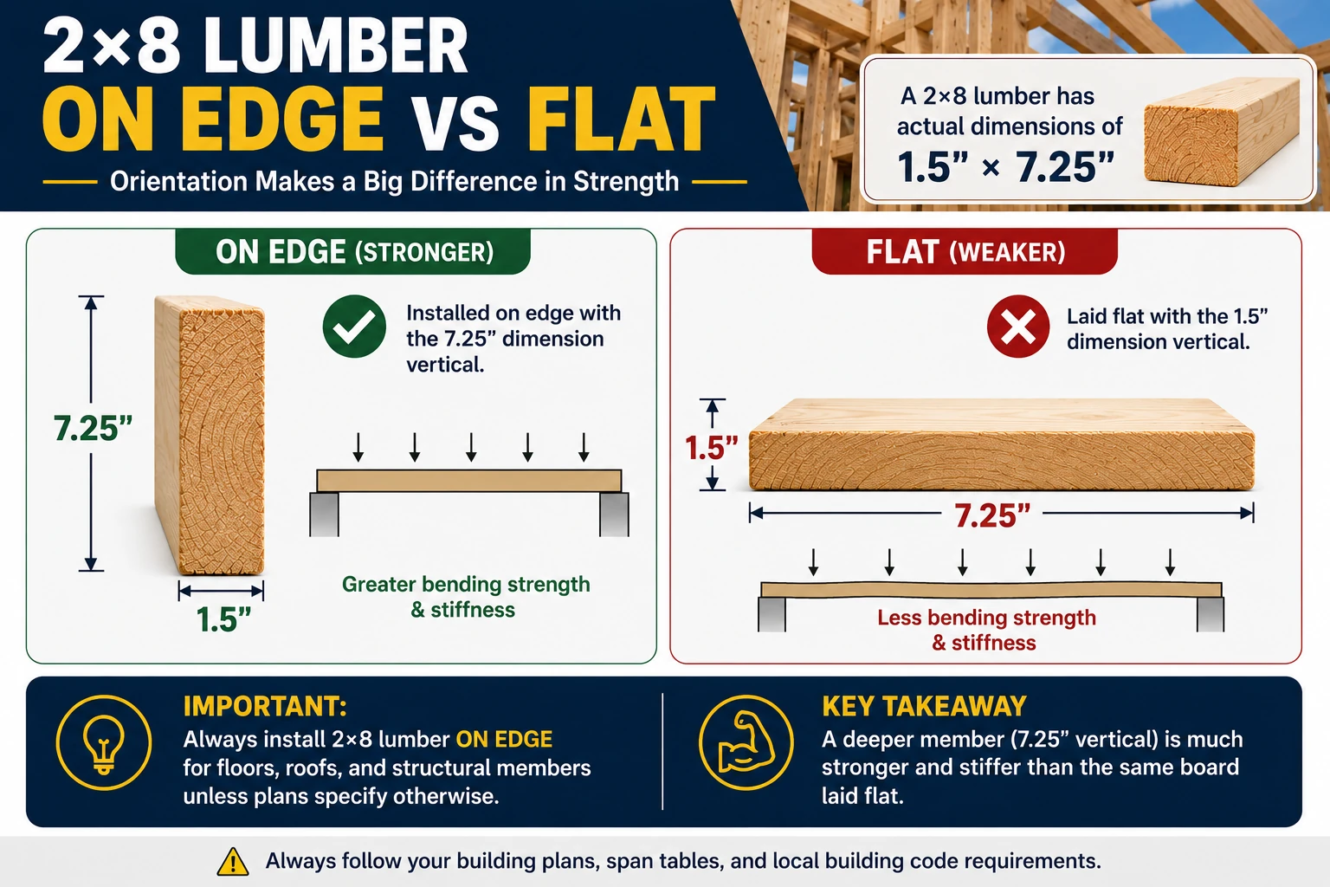

Which Direction Is the 8-Inch Dimension?

A 2×8 can be installed in different orientations depending on its application.

When used as a structural joist or similar bending member, it is normally installed on edge, meaning the approximately 7.25-inch dimension is vertical and the approximately 1.5-inch dimension is horizontal.

This orientation is important.

A board generally has much greater bending stiffness when its deeper dimension is oriented vertically than when the same board is laid flat.

Therefore, a 2×8 installed on edge and a 2×8 installed flat should not be assumed to have the same structural capacity.

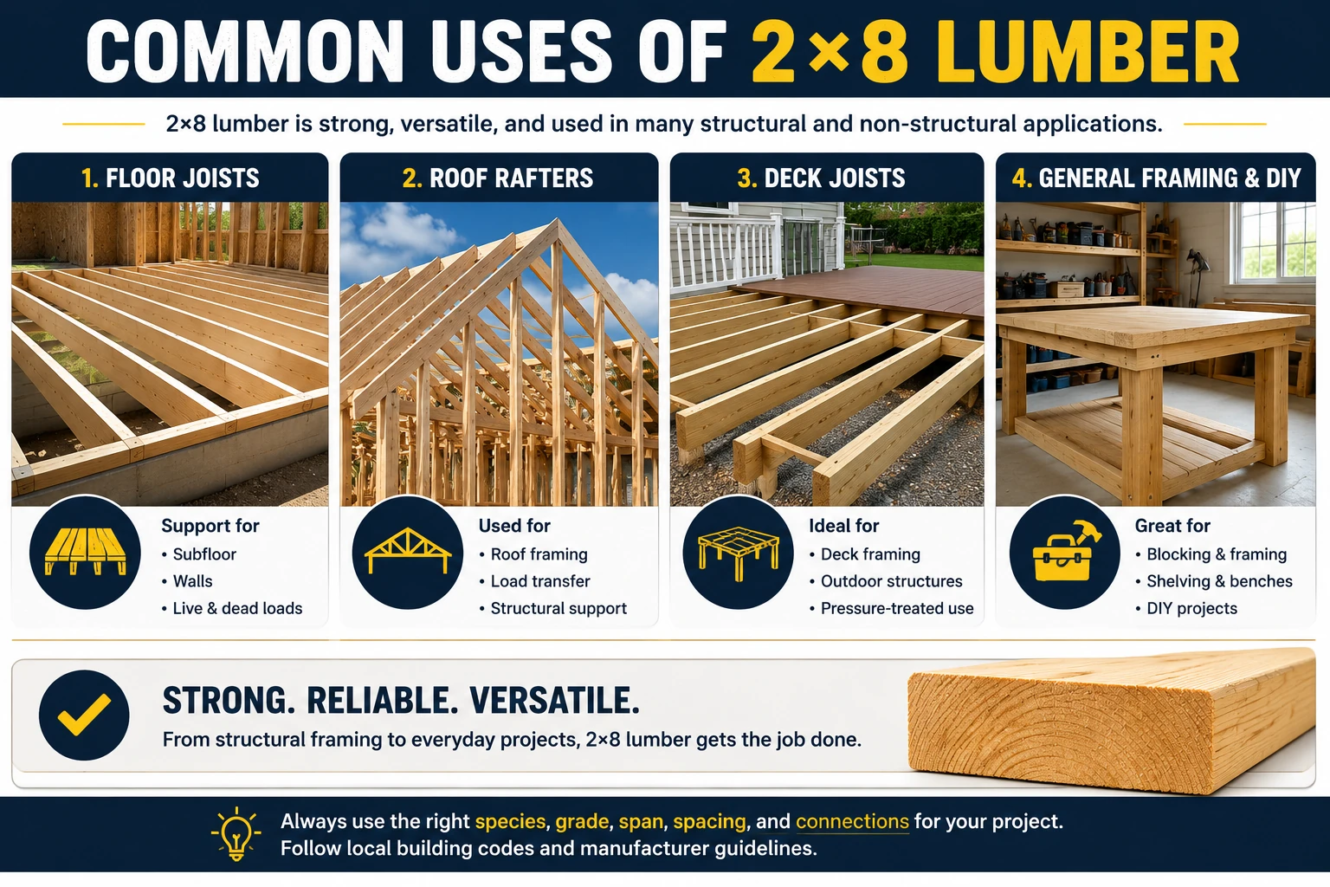

What Is 2×8 Lumber Used For?

2×8 lumber is versatile, but its suitability depends on the particular project and structural requirements.

Some common applications include the following.

1. Floor Joists

One of the best-known structural uses of 2×8 lumber is floor framing.

Floor joists extend between supporting walls, beams, girders, or other structural supports and help transfer floor loads into the supporting structure.

A 2×8 may be suitable for certain floor-joist applications, but there is no universal maximum span for every 2×8.

Allowable floor-joist span depends on variables including:

• Species
• Grade
• Joist spacing
• Live load
• Dead load
• Deflection criteria
• Support conditions

For this reason, a 2×8 should not be selected for a floor simply because another building uses the same lumber size.

2. Roof Rafters

2×8 lumber may also be used for conventional roof rafters in appropriate designs.

Rafters help support roof sheathing and transfer roof loads to walls, beams, ridges, or other supporting elements.

Whether a 2×8 is suitable depends on factors such as:

• Rafter span
• Rafter spacing
• Species and grade
• Roof dead load
• Snow or other environmental loads
• Roof configuration
• Local design requirements

Roof framing should therefore be selected using applicable rafter span tables, approved plans, or structural design rather than a general rule of thumb.

3. Deck Joists

Pressure-treated 2×8 lumber is commonly encountered in deck construction.

Depending on the design, it may be used as deck joists or in other framing components.

Deck joists support the decking and transfer loads to beams, ledgers, or other structural supports.

Outdoor framing introduces additional considerations, including:

• Moisture exposure
• Preservative treatment
• Fastener compatibility
• Joist spacing
• Span
• Species and grade
• Connections
• Local deck requirements

A 2×8 deck joist should therefore be selected based on the complete deck design.

4. Beams and Built-Up Members

Multiple pieces of dimensional lumber can sometimes be combined as part of a built-up structural member.

However, calling several 2×8 boards a “beam” does not establish their load capacity.

Beam design depends on the number of plies, span, loads, species, grade, fastening, bearing, lateral stability, and other structural conditions.

For significant structural loads, the member should be sized using an appropriate design method rather than an assumed rule.

5. Headers

2×8 lumber may be encountered in built-up headers over doors, windows, or other openings in some wood-framed construction.

But header size cannot be selected based only on opening width.

The required member depends on factors such as:

• Loads from above
• Building width
• Number of stories
• Roof and floor configuration
• Opening width
• Lumber properties
• Local code requirements

Some openings may require smaller members, while others may require larger dimensional lumber or engineered wood products.

6. Blocking and Framing Components

Short sections of 2×8 may be used for blocking or other framing details where appropriate.

Blocking can perform different functions depending on the floor, wall, roof, or connection design.

The required size and location should follow the framing plans or applicable construction requirements.

7. Deck and Outdoor Construction

Pressure-treated 2×8 boards may be used in outdoor projects where the lumber is suitable for the intended exposure.

Applications can include portions of:

• Deck framing
• Outdoor platforms
• Walkways
• Steps
• Landscape structures
• Other exterior wood construction

The correct preservative treatment and hardware are especially important where lumber is exposed to weather, moisture, or ground-contact conditions.

8. Shelving, Benches and DIY Projects

Not every 2×8 application is structural framing.

The relatively wide face of the board makes it useful for projects such as:

• Heavy-duty shelving
• Benches
• Work surfaces
• Tables
• Raised beds
• Decorative projects
• General DIY construction

For these applications, appearance, straightness, moisture content, finish quality, and wood species may matter as much as structural grade.

Common 2×8 Lumber Lengths

2×8 lumber is available in multiple lengths.

Common lengths encountered at U.S. lumber suppliers may include:

• 8 ft
• 10 ft
• 12 ft
• 14 ft
• 16 ft

Longer lengths may also be available depending on species, grade, supplier, region, and product type.

A longer board does not automatically mean that it can safely span its entire physical length.

For example, purchasing a 16-foot 2×8 does not mean the board has a 16-foot allowable structural span.

Board length and allowable span are two different things.

How Much Does a 2×8 Weigh?

There is no single exact weight for every 2×8.

Weight depends primarily on:

• Wood species
• Board length
• Moisture content
• Density
• Preservative treatment

A wet pressure-treated 2×8, for example, can weigh noticeably more than a dry untreated board of the same dimensions.

Therefore, lumber weight should be estimated using the actual species, moisture condition, treatment, dimensions, and length when accuracy matters.

Common Wood Species Used for 2×8 Lumber

Structural 2×8 lumber can be produced from several species or species groups.

Common examples encountered in U.S. construction include:

Douglas Fir-Larch

Douglas Fir-Larch is widely used for structural framing and has established design values for different grades.

Southern Pine

Southern Pine is commonly used in structural framing and pressure-treated outdoor lumber in many parts of the United States.

Hem-Fir

Hem-Fir is another species group used for dimensional framing lumber.

Spruce-Pine-Fir

Spruce-Pine-Fir, commonly abbreviated SPF, is widely available for light-frame construction.

The important point is that two boards with identical 2×8 dimensions do not necessarily have identical structural properties.

Species matters.

Lumber Grade Matters Too

Size and species are not the only variables affecting structural performance.

Structural lumber is also graded.

Common grade designations may include:

• Select Structural
• No. 1
• No. 2
• No. 3

Available grades and their design properties vary by species and applicable grading rules.

Characteristics such as knots, slope of grain, checks, splits, and other natural or manufacturing characteristics can influence grading and structural properties.

For structural applications, check the lumber’s grade stamp and use the appropriate design values or span tables.

Pressure-Treated vs Untreated 2×8 Lumber

The correct lumber treatment depends heavily on exposure conditions.

Untreated Lumber

Untreated dimensional lumber is commonly used in protected, dry interior framing where preservative treatment is not required.

Pressure-Treated Lumber

Pressure-treated lumber is commonly specified where wood may be exposed to moisture, weather, or conditions where decay or insect resistance is required.

Common applications include portions of:

• Decks
• Exterior stairs
• Outdoor structures
• Wood near concrete or masonry where required
• Ground-contact applications when appropriately treated

Not all treated lumber has the same treatment level or approved use.

Always select material rated for the actual exposure condition and use compatible fasteners and connectors.

How Strong Is a 2×8?

There is no single strength value that accurately describes every 2×8 board.

Structural capacity changes according to:

species + grade + span + orientation + spacing + loading + support conditions

A 2×8 used as a short floor joist, for example, behaves differently from the same size board spanning a greater distance.

Likewise, a concentrated load applied at one location is different from a uniformly distributed load.

This is why statements such as:

“A 2×8 can hold X pounds”

can be misleading without defining the structural conditions.

For structural work, capacity should be evaluated for the actual application.

How Far Can a 2×8 Span?

Again, there is no universal span that applies to every 2×8.

Maximum allowable span can change with:

• Application
• Wood species
• Lumber grade
• Member spacing
• Live load
• Dead load
• Deflection limit
• Support conditions

Floor joists, rafters, deck joists, and beams also have different design conditions.

Therefore, a single “maximum 2×8 span” number should not be applied to every project.

Applicable span tables, approved construction documents, building-code provisions, or structural calculations should be used for the particular application.

What Does 16 Inches O.C. Mean With 2×8 Joists?

When 2×8 lumber is used as repetitive framing, plans may specify spacing such as:

• 12″ O.C.
• 16″ O.C.
• 19.2″ O.C.
• 24″ O.C.

O.C. means “on center.”

For example, 16 inches O.C. means the distance from the centerline of one joist to the centerline of the adjacent joist is 16 inches.

It does not mean there is a 16-inch clear opening between the boards.

Because a typical 2×8 is approximately 1.5 inches thick, joists at 16 inches O.C. have an approximate clear space of:

16 − 1.5 = 14.5 inches

assuming the members are straight, parallel, and conventionally laid out.

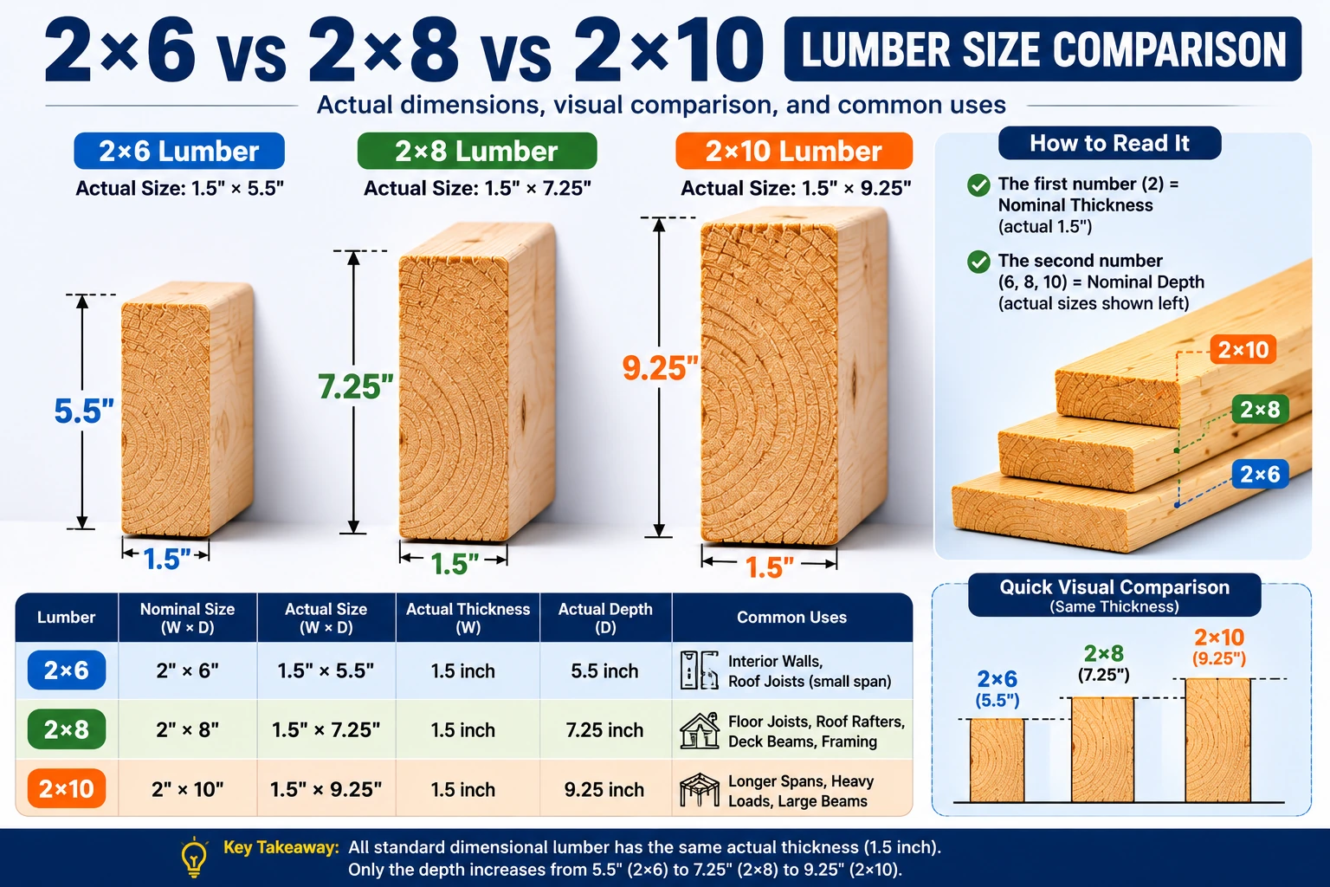

2×8 vs 2×6

A 2×8 is deeper than a 2×6.

Typical actual dimensions are:

2×6: approximately 1.5″ × 5.5″
2×8: approximately 1.5″ × 7.25″

The additional depth can significantly affect bending stiffness and structural performance.

However, that does not mean a 2×8 is automatically the correct replacement for every 2×6.

The complete structural design still matters.

2×8 vs 2×10

A 2×10 is deeper than a 2×8.

Typical actual dimensions are:

2×8: approximately 1.5″ × 7.25″
2×10: approximately 1.5″ × 9.25″

Under otherwise comparable conditions, the deeper 2×10 generally offers greater bending resistance and stiffness.

This can make larger lumber sizes useful where longer spans or greater structural demands are involved.

However, the correct joist, rafter, or beam size should always be determined for the actual design conditions.

How to Choose a 2×8 at the Lumberyard

For general construction, do not choose boards based only on nominal size.

Inspect the material before installation.

Check the Grade Stamp

For structural applications, identify the species/species group and grade.

Look for Excessive Bowing

Sight along the length of the board to check whether it curves significantly.

Check for Twisting

A badly twisted board can create framing and alignment problems.

Examine Knots and Defects

Lumber naturally contains characteristics such as knots, but structural lumber should meet the grade required by the design.

Check Moisture Condition

Wet lumber can shrink as it dries.

Moisture condition can also affect weight and dimensional stability.

Select the Correct Treatment

If the board will be exposed to weather, moisture, ground contact, or other decay hazards, select lumber with the appropriate treatment for that exposure.

Common Mistakes When Using 2×8 Lumber

Assuming 2×8 Means Exactly 2″ × 8″

Modern surfaced dimensional lumber is normally smaller than its nominal designation.

A typical 2×8 is approximately 1.5″ × 7.25″.

Assuming Every 2×8 Has the Same Strength

Species and grade can produce different structural properties even when board dimensions are identical.

Confusing Board Length With Structural Span

A 16-foot-long board does not automatically have a 16-foot allowable span.

Ignoring Orientation

A 2×8 installed on edge behaves very differently in bending from the same board laid flat.

Ignoring Joist Spacing

For repetitive floor or roof framing, member spacing affects the tributary load carried by each member.

Using Indoor Lumber Outdoors

Exterior or moisture-exposed applications may require appropriately treated or naturally durable material.

Relying Only on Rules of Thumb

Rules of thumb can be useful for preliminary understanding but should not replace applicable span tables, construction documents, code provisions, or engineering when structural design is required.

Frequently Asked Questions

What is the actual size of a 2×8?

A typical surfaced 2×8 measures approximately 1.5 inches × 7.25 inches.

Why is a 2×8 not actually 2 inches by 8 inches?

The 2×8 designation represents the board’s nominal size. Processing, drying, and surfacing result in smaller finished dimensions.

What does 2×8 mean in construction?

It is a standard nominal designation for dimensional lumber. A typical modern surfaced 2×8 has actual dimensions of approximately 1.5″ × 7.25″.

Is a 2×8 good for floor joists?

A 2×8 can be suitable for some floor-joist systems. Suitability depends on span, spacing, species, grade, loads, deflection requirements, and applicable building requirements.

Can you use a 2×8 for a deck?

Yes, 2×8 lumber is commonly encountered in deck framing. The appropriate size, spacing, span, treatment, connections, and design must be verified for the particular deck.

Can a 2×8 be used as a beam?

2×8 lumber may be incorporated into certain built-up structural members, but beam capacity cannot be determined from lumber size alone. Loads, span, number of plies, species, grade, connections, bearing, and other conditions must be considered.

Is a 2×8 stronger than a 2×6?

Under otherwise comparable conditions, the greater depth of a 2×8 generally provides greater bending resistance and stiffness than a 2×6. Actual structural capacity still depends on species, grade, span, loading, and other design conditions.

Is a 2×10 stronger than a 2×8?

Under comparable conditions, a 2×10 generally provides greater bending resistance and stiffness because of its greater depth. The appropriate size depends on the actual application.

What lengths do 2×8 boards come in?

Common lengths may include 8, 10, 12, 14, and 16 feet, although availability varies by supplier, species, grade, treatment, and region.

How far can a 2×8 span?

There is no single span for all 2×8 lumber. Allowable span depends on the application, species, grade, spacing, loads, deflection criteria, and support conditions.

How much weight can a 2×8 hold?

There is no universal weight capacity for a 2×8. Capacity depends on how the member is supported and loaded as well as its species, grade, span, orientation, and other structural conditions.

Is 2×8 lumber actually 7.25 inches wide?

A typical surfaced 2×8 is approximately 7.25 inches in its deeper dimension and approximately 1.5 inches thick.

Final Answer

A 2×8 is a common nominal size of dimensional lumber used throughout U.S. residential and light-frame construction.

Although it is called a 2×8, a typical surfaced board actually measures approximately:

1.5 inches × 7.25 inches

2×8 lumber can be used for a variety of projects, including floor and roof framing, deck construction, blocking, some built-up structural members, and non-structural DIY applications.

However, the words “2×8” describe the nominal lumber size—not its structural capacity.

Before using a 2×8 structurally, consider the complete combination of:

size + species + grade + span + spacing + loads + orientation + supports + connections + exposure conditions

For structural framing, use the applicable span tables, construction documents, building-code requirements, or engineering design rather than relying on lumber size alone.
