Understanding Girt {Complete 2025 Guide}

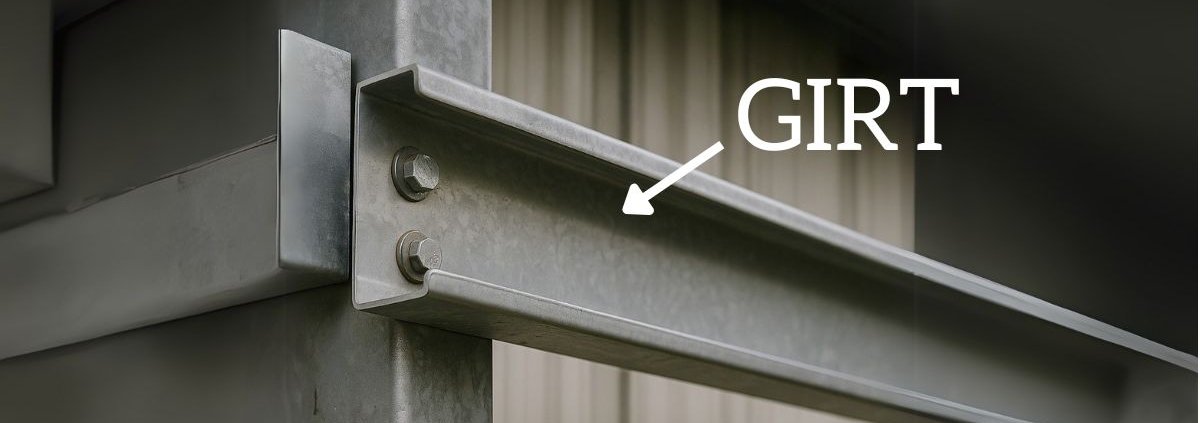

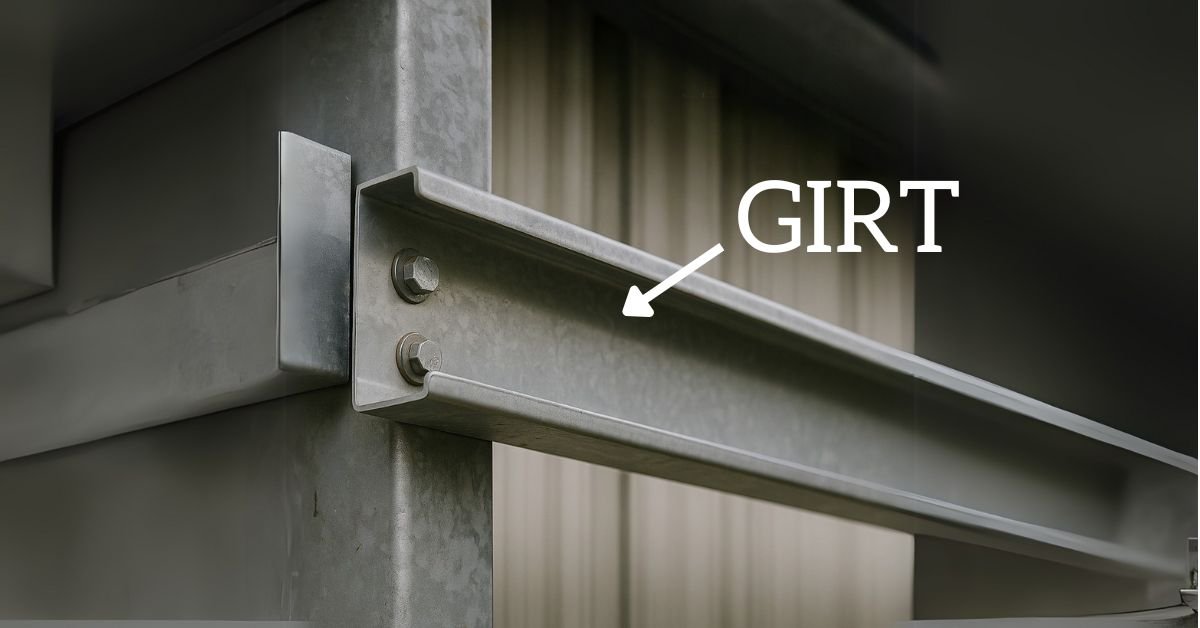

1. What Is a Girt?

A girt is a horizontal structural member used in wall framing systems. It runs parallel to the ground, spans between vertical columns, and supports wall panels by distributing lateral forces such as wind pressure.

Think of girts as the wall equivalent of purlins (which support roofing materials). Girts brace the structure horizontally, ensuring your walls don’t sway, buckle, or collapse under load.

What is a Girt in Construction

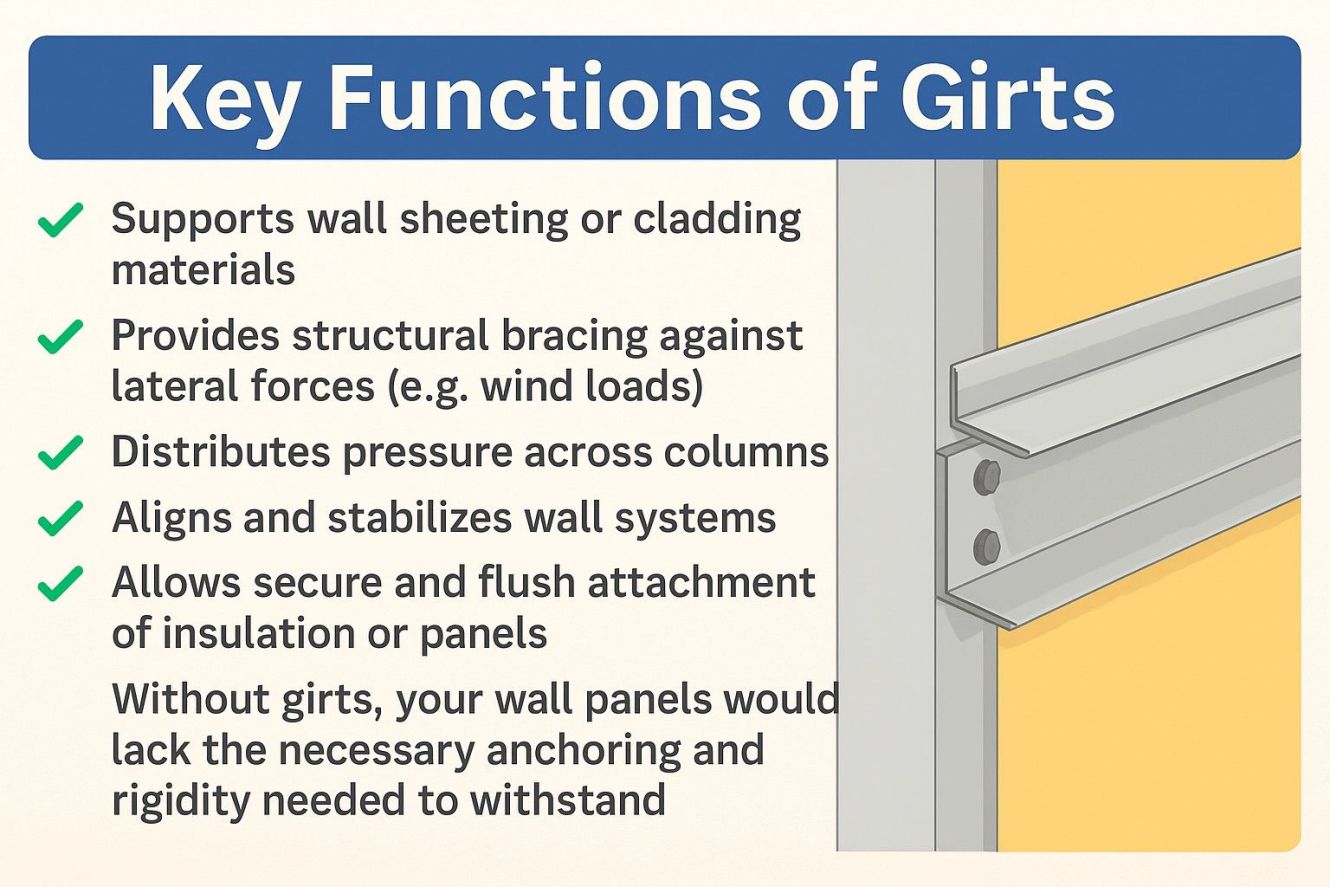

🎯 Key Functions of Girts

  • Supports wall sheeting or cladding materials
  • Provides structural bracing against lateral forces (e.g., wind loads)
  • Distributes pressure across columns
  • Aligns and stabilizes wall systems
  • Allows secure and flush attachment of insulation or panels

Without girts, your wall panels would lack the necessary anchoring and rigidity needed to withstand weather and usage over time.

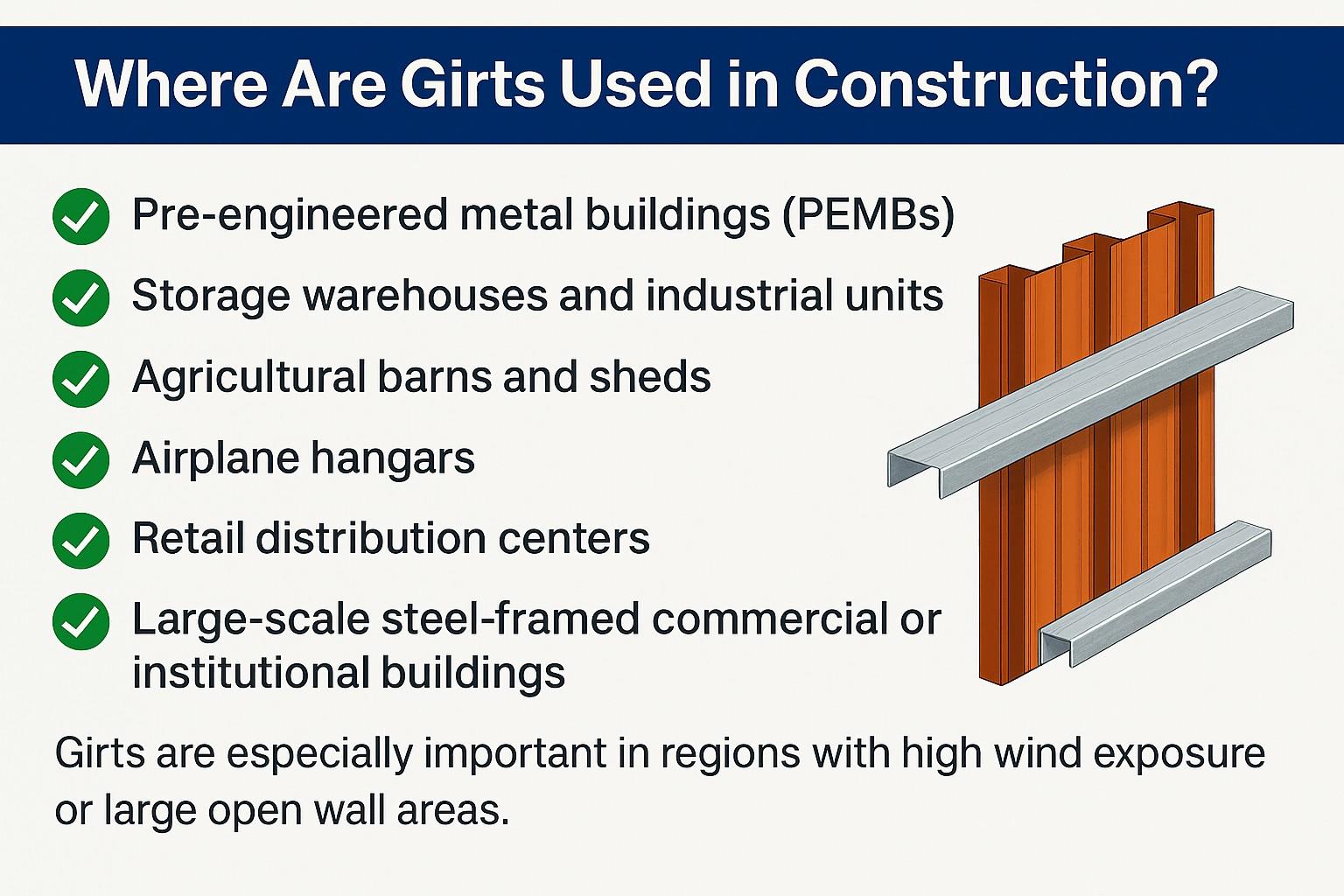

📌 Where Are Girts Used in Construction?

Girts are used in a variety of structures, including:

  • Pre-engineered metal buildings (PEMBs)
  • Storage warehouses and industrial units
  • Agricultural barns and sheds
  • Airplane hangars
  • Retail distribution centers
  • Metal garages and pole barns
  • Large-scale steel-framed commercial or institutional buildings
What are girt used in construction

Girts are especially important in regions with high wind exposure or large open wall areas.

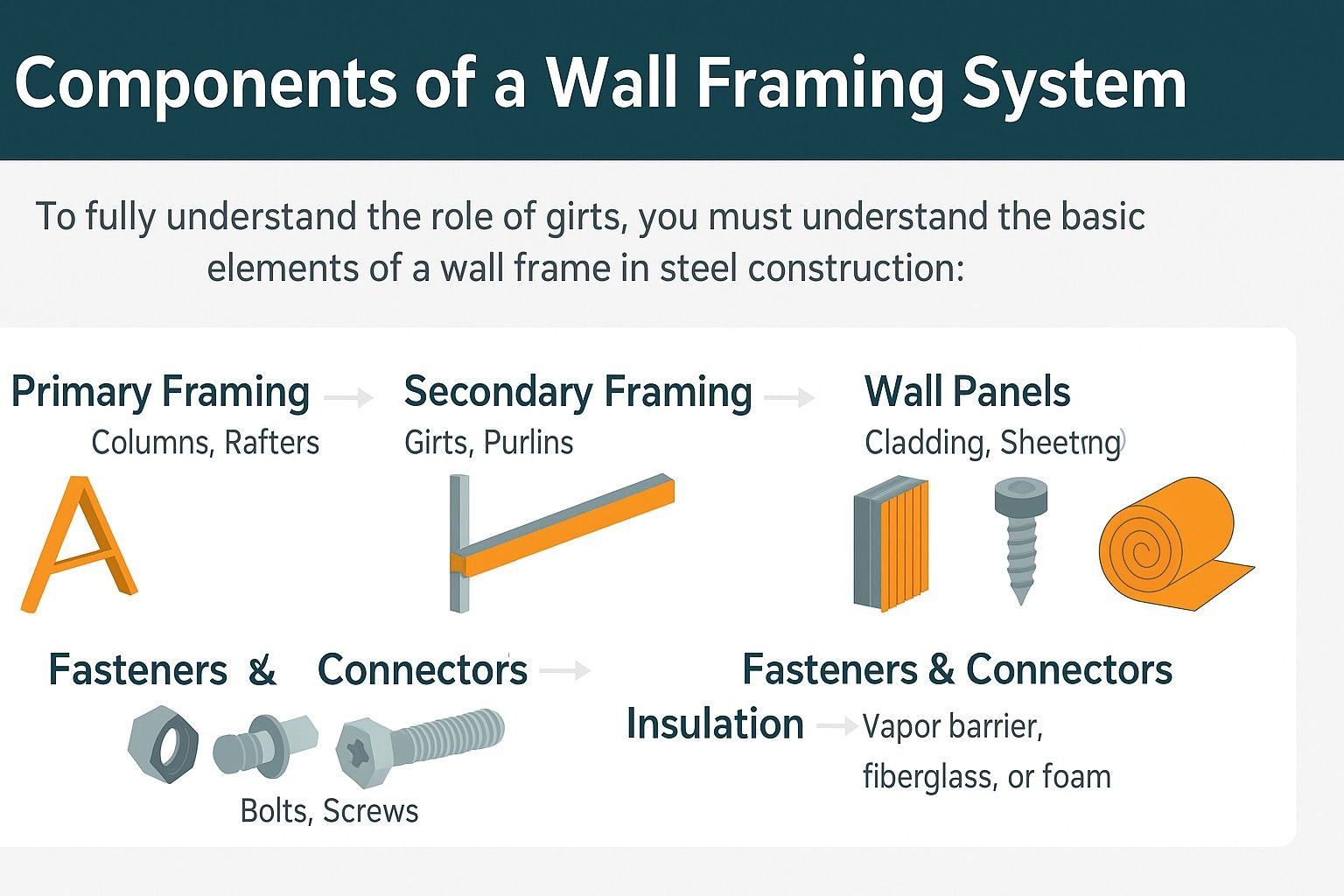

🧱 Components of a Wall Framing System

To fully understand the role of girts, you must understand the basic elements of a wall frame in steel construction:

  • Primary Framing → Columns, Rafters
  • Secondary Framing → Girts, Purlins
  • Wall Panels → Cladding, Sheeting
  • Fasteners & Connectors → Bolts, Screws
  • Insulation → Vapor barrier, fiberglass, or foam
Components of wall framing system for girt

Among these, girts are the key horizontal support system for wall panels, much like ribs in a body.


⚙️ Types of Girts Based on Placement

There are three common girt configurations based on how they attach to the columns and wall:

1. Bypass Girts

  • Installed outside the flange of the column
  • Extend past the column face, creating a continuous load path
  • Common in high wind load areas

Benefits:

  • Increased wall strength
  • Easy installation for continuous sheeting
  • Minimizes cold-bridging
Types of Girt based on placement

2. Flush Girts

  • Installed in line with the column flange
  • Girt aligns with the outer face of the structural frame
  • Used when minimal wall thickness is desired

Benefits:

  • Saves space
  • Cleaner wall appearance
  • Better thermal envelope in some designs

3. Inset Girts

  • Placed between the flanges, inside the column
  • Not flush with the wall exterior
  • Rarely used in modern PEMBs

Benefits:

  • Lower profile
  • Can accommodate special insulation systems

🧰 Types of Girts Based on Material & Shape

Girts can be fabricated from a range of materials, depending on strength, weight, and environmental needs:

TypeDescription
Z-GirtsMost common; lightweight, cold-formed steel with flanges bent in opposite directions. Ideal for overlapping during installation.
C-GirtsShaped like the letter “C”; used where overlap is not required. Often found in lighter applications.
Wooden GirtsUsed in pole barns, timber frames, or agricultural buildings. Less durable than steel.
Composite GirtsMade from fiberglass or reinforced plastics. Lightweight, corrosion-resistant, and excellent for energy-efficient buildings.
Types of Girts Based on Material shape

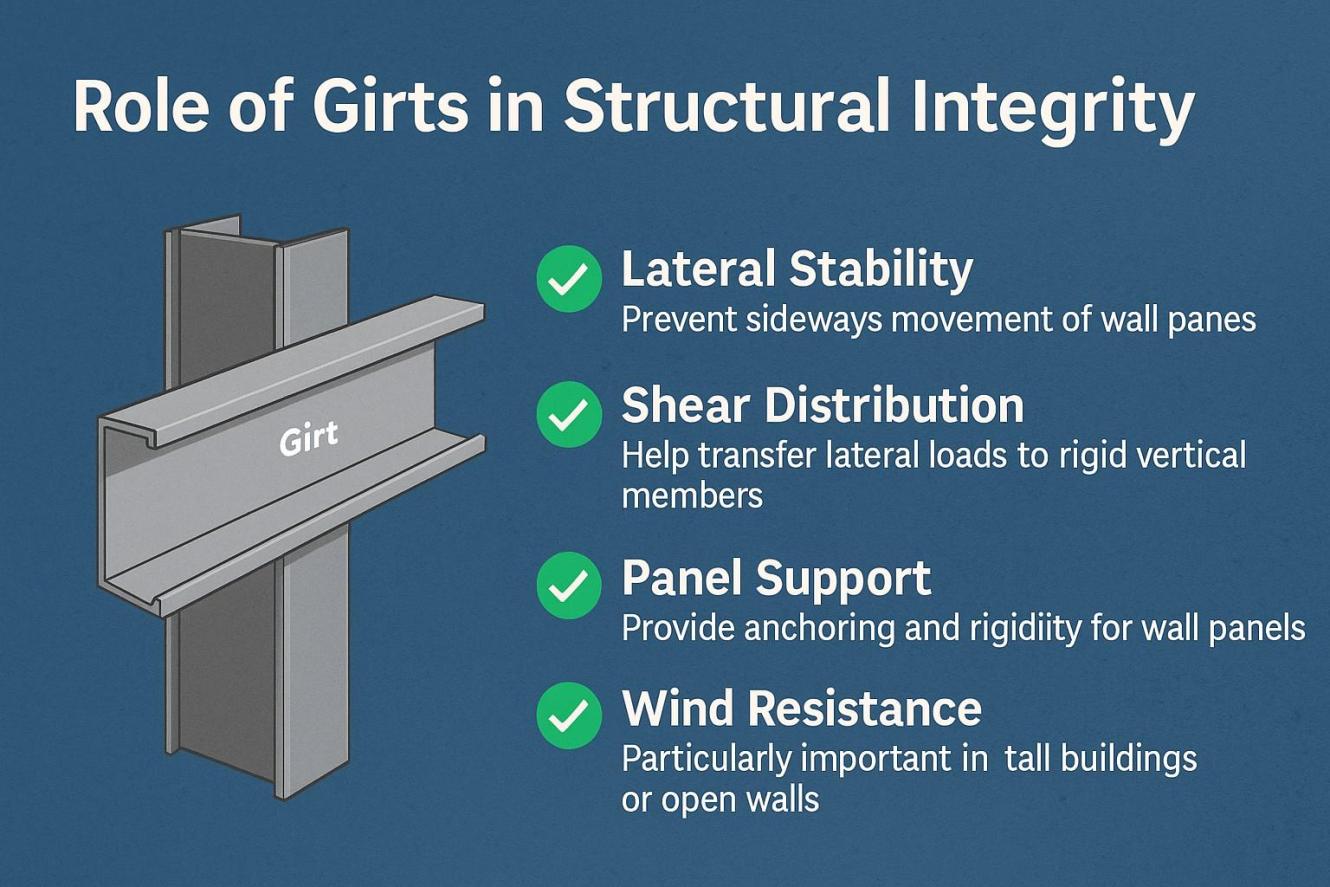

🔍 Role of Girts in Structural Integrity

Girts are not primary load-bearing members, but they serve essential functions:

  • Lateral Stability: Prevent sideways movement of wall panels
  • Shear Distribution: Help transfer lateral loads to rigid vertical members
  • Panel Support: Provide anchoring and rigidity for wall panels
  • Wind Resistance: Particularly important in tall buildings or open walls
Role of girts in structural intregrity

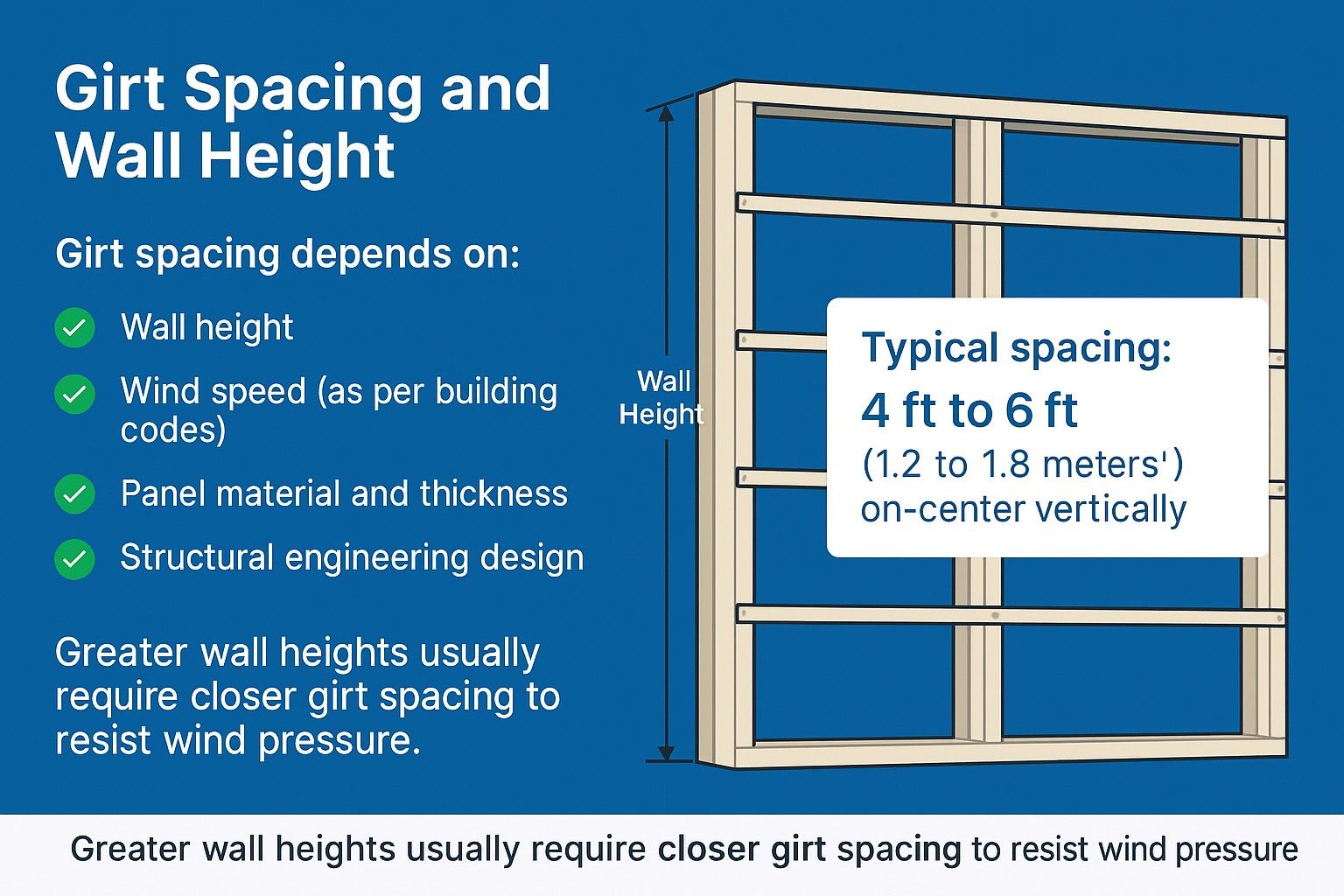

📐 Girt Spacing and Wall Height

Girt spacing depends on:

  • Wall height
  • Wind speed (as per building codes)
  • Panel material and thickness
  • Structural engineering design

Typical spacing:
📏 4 ft to 6 ft (1.2 to 1.8 meters) on-center vertically

Girt Spacing and wall height

Greater wall heights usually require closer girt spacing to resist wind pressure.


🔬 Engineering Considerations

Structural engineers consider the following when designing with girts:

  • Span length between columns
  • Girt size and thickness
  • Deflection limits (to avoid excessive movement)
  • Fastener pull-out strength
  • Thermal bridging risks (especially in energy-efficient builds)
Engineering Consideration

Engineers may also stagger girts or use continuous spans for improved strength and panel alignment.


🛠️ Girt Installation Process

Steps for Installing Girts:

  1. Measure vertical spacing from floor up the column
  2. Attach brackets or pre-punched connectors
  3. Fasten girts horizontally between columns
  4. Verify level and alignment across the frame
  5. Secure wall panels to girts using screws or rivets
Girt Installation Process

✅ Tip: Use a laser level for exact placement and to avoid rippling in wall panels.


🏗️ Girts vs. Purlins: Key Differences

Though they look similar, girts and purlins serve different roles:

FeatureGirts (Wall Framing)Purlins (Roof Framing)
OrientationHorizontal in wallHorizontal across the roof
FunctionSupport wall panelsSupport roofing sheets
Load typeWind, lateralSnow, dead load, live load
ConnectionColumnsRafters or trusses

In short:
Girts = wall support
Purlins = roof support


🔋 Advanced Girt Solutions

Modern buildings, especially LEED-certified or energy-efficient structures, are moving toward composite girt systems like . These are:

  • Made from fiber-reinforced polymers (FRP)
  • Provide thermal insulation and reduce heat loss
  • Are corrosion-resistant and ideal for harsh climates
  • Improve building energy performance (better R-value)

They also help reduce material weight and allow for more sustainable construction.


📊 Common Girt Sizes

Depending on load requirements and building type, girts come in different gauges and depths:

Girt SizeApplication
6” Z-GirtLight commercial or small sheds
8” Z-GirtWarehouses or large wall panels
10” Z-GirtIndustrial or high wind load zones
Custom CompositeEnergy-efficient wall systems

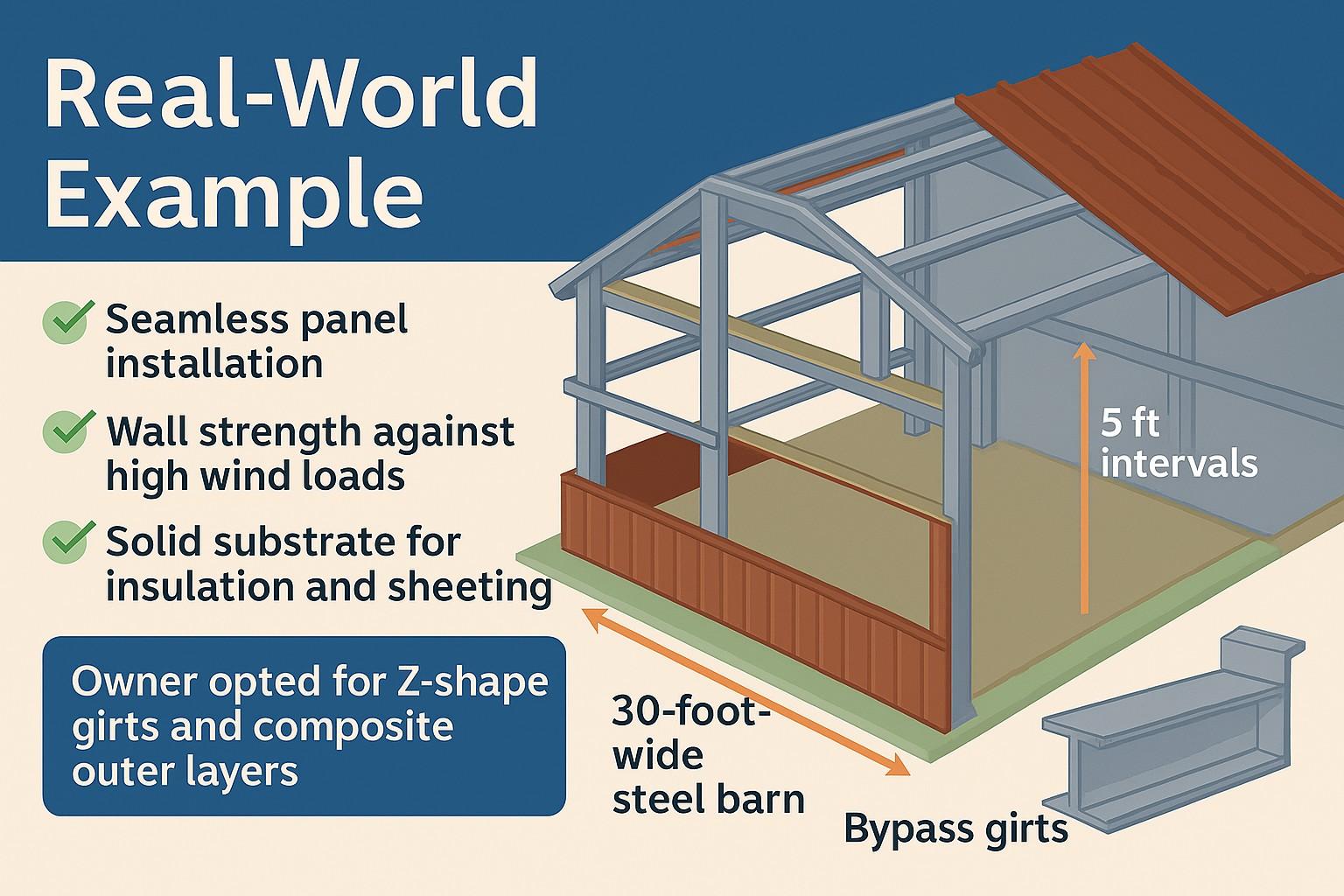

💡 Real-World Example

Suppose you’re building a 30-foot-wide steel barn. Wind pressure in your region requires significant lateral bracing. You install bypass girts at 5 ft intervals from ground to eave height. These girts provide:

  • Seamless panel installation
  • Wall strength against high wind loads
  • A solid substrate for insulation and sheeting
Real world example of girt

Because the owner opted for Z-shaped girts and composite outer layers, the barn is structurally strong and energy-efficient.


📋 Pros & Cons of Girts

✅ Advantages:

  • Easy and quick installation
  • Supports various panel types
  • Improves wall rigidity
  • Enhances load transfer
  • Integrates with insulation systems

⚠️ Limitations:

  • Not suitable for primary load-bearing
  • May require additional bracing in tall structures
  • Improper spacing can lead to panel warping

🔎 Frequently Asked Questions (FAQs)

Q: What does “Girt” stand for?
A: It’s not an acronym. “Girt” is a traditional construction term meaning horizontal wall bracing.

Q: How do girts attach to columns?
A: Typically using bolts, clips, or welded brackets, depending on the design.

Q: Are girts visible from inside?
A: Often yes, unless interior finishes like drywall or panels are added.

Q: Can girts hold insulation?
A: Yes. They’re commonly used as a base for insulation or weather barriers.


🔚 Conclusion: Why Girts Matter

Girts are the unsung heroes of wall framing. They may not be glamorous, but without them, walls would flex, crack, or fail under pressure. Whether you’re building a small storage unit or a large commercial facility, proper girt selection and spacing can make or break the structural integrity of your building.

By understanding the types, functions, and strategic importance of girts, you’re one step closer to designing safer, smarter, and stronger structures.
