What is site drainage in construction {Complete 2025 Guide}
Table of Contents
What is Site Drainage?
What is site drainage in construction? Site drainage refers to the method and design by which water (mainly rainwater or surface water) is redirected or removed from a construction site. It includes natural and engineered solutions for managing stormwater, preventing soil erosion, and ensuring that water does not accumulate where it can cause damage.
It’s not just about avoiding puddles — it’s about ensuring the safety of foundations, reducing maintenance costs, and protecting the environment.
Why is Site Drainage Important in Construction?
Ignoring drainage is one of the costliest mistakes a builder or developer can make. Here’s why site drainage is vital:
1. Protects the Foundation
Water accumulation near the foundation leads to:
- Cracks in walls and floors
- Settling or shifting foundations
- Mold growth
A proper drainage system prevents water from seeping under or around structures.
2. Prevents Flooding
Drainage channels and slope design help move excess rainwater away from the site quickly, reducing the risk of flood damage.
3. Avoids Soil Erosion
Uncontrolled water flow can erode topsoil and undermine structures, especially on sloped land.
4. Improves Site Accessibility
Muddy or waterlogged construction sites delay work. Efficient drainage ensures machinery and workers can move safely.
5. Regulatory Compliance
Many municipalities and local codes require approved stormwater management systems before granting permits.
Types of Site Drainage Systems
Understanding the different types of drainage systems is key to planning a successful construction project. Below are the most common drainage types:

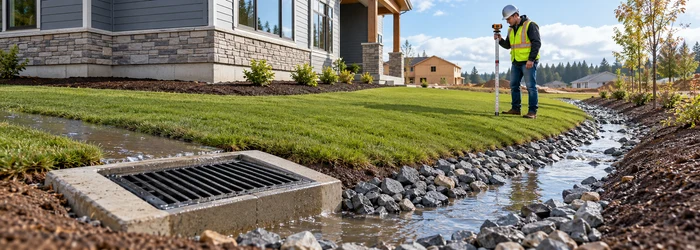

1. Surface Drainage Systems
This system manages water that accumulates on the ground. It includes:
- Shallow ditches or swales
- Catch basins
- Open drainage channels
These guide water away from the site and into stormwater sewers or soakaway pits.
2. Subsurface Drainage (French Drains)
Installed below ground level, subsurface drainage systems:
- Prevent water from pooling underground
- Protect foundations and basements
- Consist of perforated pipes laid in trenches filled with gravel
3. Slope or Grading-Based Drainage
Here, the land itself is contoured to direct water away from buildings. This method involves:
- Creating a natural gradient
- Compacting and leveling surfaces
It is often the first step in any drainage plan.
4. Downspout and Gutter Systems
Rainwater from roofs is collected and directed through:
- Gutters
- Downspouts
- Drainage pipes or splash blocks
This prevents water from dripping around the building perimeter.
5. Permeable Pavement Drainage
Modern constructions use permeable paving systems to allow water to pass through the surface and filter into underground drains.
Key Components of an Effective Site Drainage Plan
A good site drainage plan is a combination of design, implementation, and maintenance. Here are its core elements:
1. Site Survey and Topography
Understanding the site’s slope, soil type, and water table levels is critical for designing effective drainage.
2. Grading Plan
Contours and slopes should direct water away from buildings, not toward them. A minimum slope of 2% away from structures is recommended.
3. Drainage Inlets and Channels
Strategically placed inlets collect water and channel it toward:
- Underground pipes
- Retention basins
- Municipal sewers
4. Stormwater Management System
Large projects often include detention or retention basins to control the rate of water discharge and minimize flood risk.
5. Erosion Control Measures
Such as:
- Silt fences
- Retaining walls
- Grass seeding or turf mats
These prevent topsoil from washing away during rain.
6. Maintenance Schedule
Blocked or damaged drainage systems fail. Regular inspection ensures continuous performance.
Common Mistakes to avoid + Best Practices for site drainage
| # | ✅ Best Practices for Site Drainage | ❌ Common Mistakes to Avoid |
|---|---|---|
| 1 | Start Early in the Planning Phase | Ignoring Local Regulations |
| 2 | Ensure Proper Land Slope (Minimum 2%) | Poor Grading or Leveling |
| 3 | Install Perimeter Drains and Waterproof Membranes | No Drainage Around Foundations |
| 4 | Use Porous Surfaces Where Needed (e.g., Gravel) | Using Inappropriate Materials |
| 5 | Schedule Regular Cleaning and Checks | Lack of Maintenance and Inspections |
| 6 | Channel Water to Approved Legal Outlets | Directing Water Toward Neighboring Properties |
| 7 | Design Overflow Routes for Stormwater | Overlooking Heavy Rain Overflow |
| 8 | Test Soil and Design Drainage Accordingly | Not Accounting for Soil Type |
| 9 | Integrate Natural Drainage Paths in Design | Blocking Natural Water Flow |
| 10 | Plant Grass, Shrubs, or Ground Cover to Prevent Erosion | Insufficient Vegetative Cover |
Environmental Impact of Site Drainage
Improper drainage can lead to:
- Contaminated runoff entering water bodies
- Habitat destruction
- Increased sedimentation in streams and rivers
Sustainable drainage systems (SuDS) aim to minimize environmental damage. These include:
- Rain gardens
- Green roofs
- Bioswales
By implementing these systems, builders can meet LEED or other green construction certifications.
Frequently Asked Questions (FAQs)
Frequently Asked Questions (FAQs)
Q1: What is the main purpose of site drainage?
To safely direct water away from buildings and roads, preventing flooding, erosion, and structural damage.
Q2: Who is responsible for site drainage?
Typically, the project’s civil engineer or site planner prepares a drainage plan. Builders and contractors implement it.
Q3: What is the ideal slope for site drainage?
A minimum 2% slope (i.e., 2 cm drop per 1 meter) away from structures is ideal for surface drainage.
Q4: Can I use a single drainage method?
It’s best to combine multiple methods (grading, surface drains, subsurface drains) for optimal performance.
Q5: Do small construction projects also need drainage?
Yes. Even small-scale residential projects require basic drainage planning to avoid moisture issues.
Q6: What is drainage in construction?
Drainage in construction refers to the planned removal or redirection of surface and subsurface water from a construction site.
Q7: What is drainage?
Drainage is the process of removing excess water from an area to prevent waterlogging and damage.
Q8: What is drainage work?
Drainage work includes trenching, piping, grading, and installing components like catch basins and French drains.
Q9: What is a drainage system?
A drainage system is a network of pipes, channels, and slopes designed to redirect surface or subsurface water away from structures.
Q10: Why is drainage important in building construction?
It prevents water accumulation, foundation damage, soil erosion, and promotes long-term building stability.
Q11: What are the types of drainage systems in construction?
Surface drainage, subsurface drainage, slope-based drainage, and downspout systems are the most common types.
Q12: What is subsurface drainage?
Subsurface drainage involves underground pipes, like French drains, to collect and remove water that has seeped into the soil.
Q13: What is temporary drainage on construction sites?
It refers to short-term measures like ditches or pumps used during construction to control rainwater and runoff.
Q14: What is surface drainage?
Surface drainage involves shallow ditches, swales, or contours that move water across the land’s surface.
Q15: What is the meaning of efficient drainage?
Efficient drainage quickly redirects water without causing flooding, pooling, or erosion, using optimal design and materials.
Q16: What is drainage engineering?
Drainage engineering is a civil engineering discipline focused on designing systems for controlling and managing water runoff.
Q17: What is a drainage system in a building?
It’s a system of indoor and outdoor pipes, gutters, and drains that remove rainwater and wastewater from a building.
Q18: What is the difference between drainage and sewerage?
Drainage removes stormwater; sewerage handles wastewater from kitchens, bathrooms, and toilets.
Q19: What are drainage structures?
These include culverts, catch basins, manholes, and channels used to control and direct water flow on construction sites.
Q20: What is underground drainage?
It’s a network of hidden pipes laid beneath the surface to transport water away from areas that are at risk of waterlogging.
Conclusion
Site drainage is not just a technical requirement; it’s a critical component of safe, efficient, and long-lasting construction. Whether it’s a large commercial development or a single-family home, ignoring drainage can lead to massive costs down the road.
By understanding the importance of site drainage, incorporating the right systems, and following best practices, builders and homeowners can protect their investments and promote sustainable development.
