Actual Dimensions of 2×12 Lumber: A Comprehensive Guide
Introduction to Lumber Dimensions
When it comes to woodworking and construction, understanding the actual dimensions of lumber is crucial. This guide focuses on the 2×12 lumber size, commonly used in various construction projects, from framing to decking. By knowing the precise measurements, we can ensure proper material selection and accurate project execution.
Table of Contents
Understanding Lumber Sizes
Nominal vs. Actual Dimensions

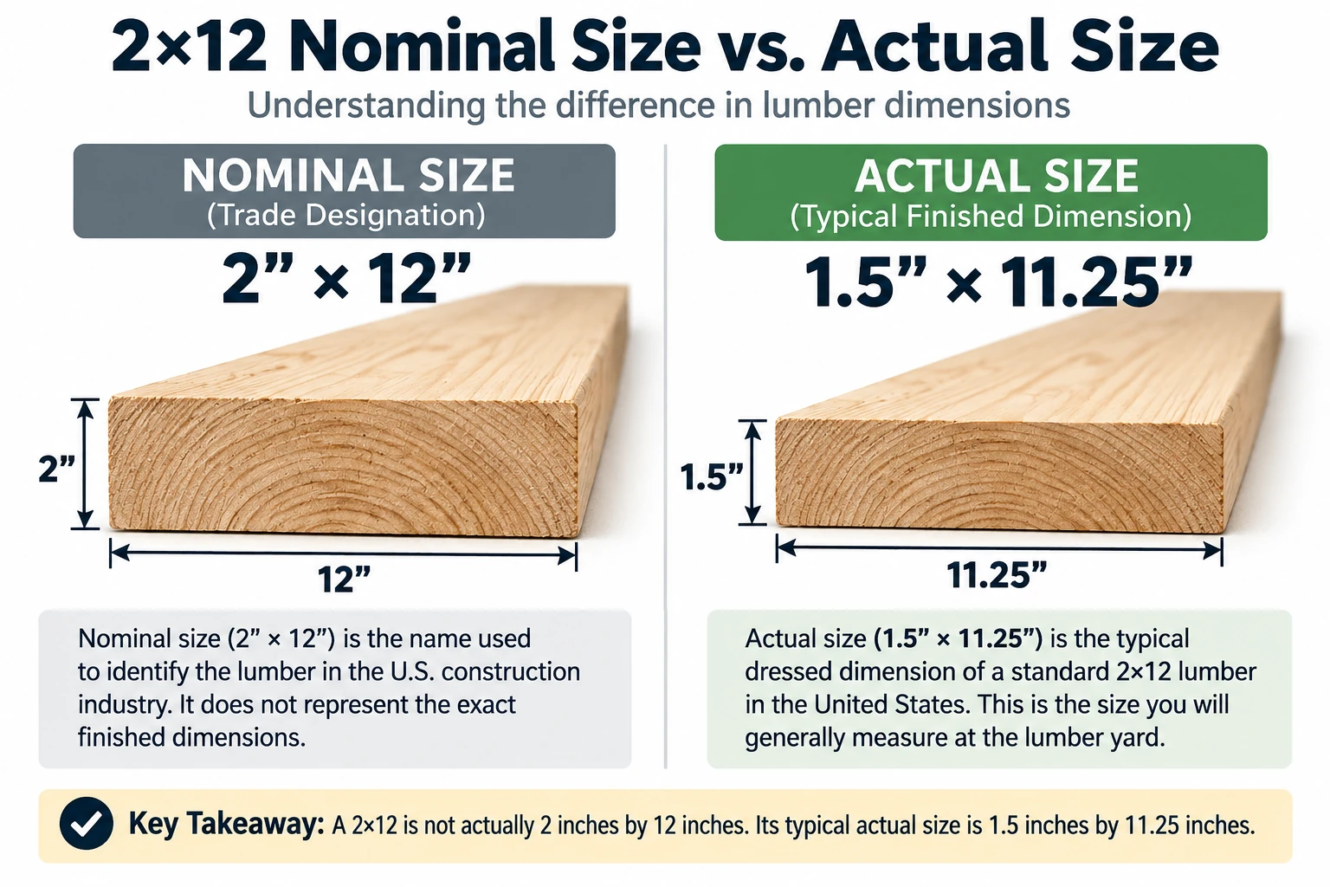

Lumber is typically sold by its nominal dimensions, which are the dimensions before the wood is dried and planed. For instance, a 2×12 piece of lumber is named for its nominal size. However, the actual dimensions are often smaller due to the milling process. It’s essential to understand this difference to avoid measurement errors in your projects.
Standard Dimensions of 2×12 Lumber

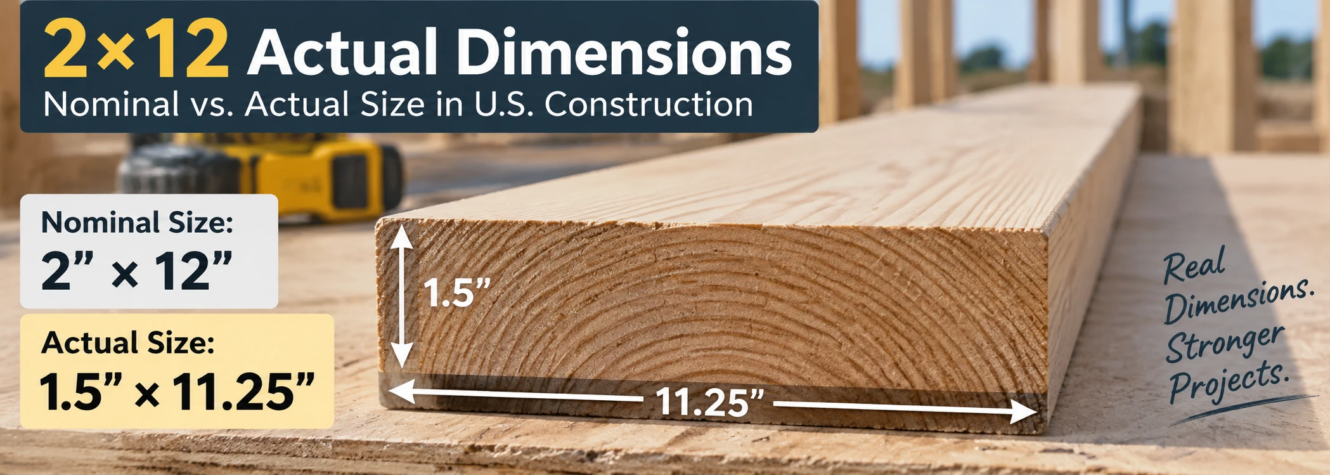

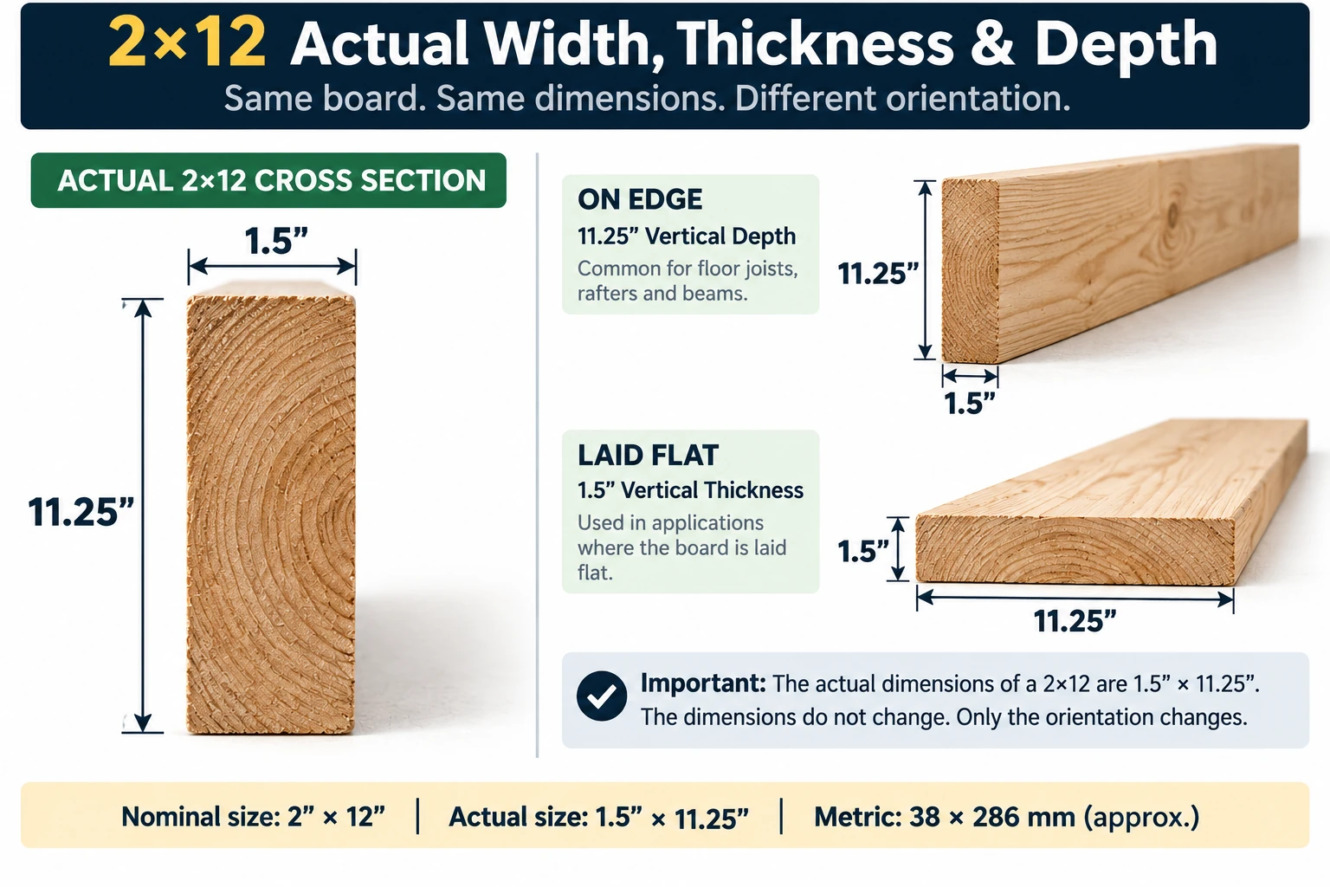

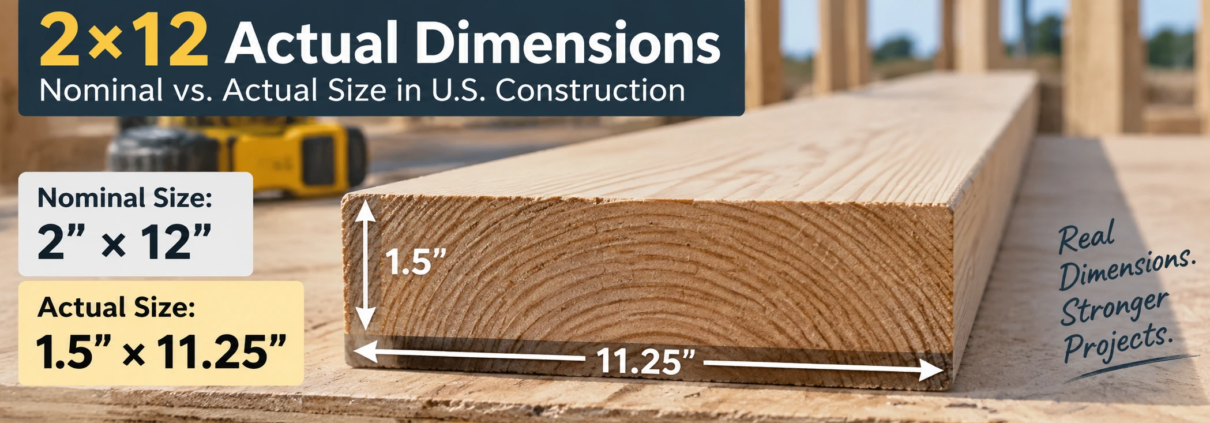

The nominal size of 2×12 lumber is 2 inches by 12 inches. However, the actual dimensions after processing are typically 1.5 inches by 11.25 inches. This reduction occurs because the lumber is dried and planed to achieve a smoother surface and more precise measurements.
Common Uses of 2×12 Lumber
1. Framing and Construction
2×12 lumber is often used in framing applications due to its strength and ability to support heavy loads. Common applications include:
- Floor Joists: The substantial size and strength of 2×12 lumber make it ideal for floor joists, providing excellent support for residential and commercial structures.
- Rafters and Beams: Used in roofing systems, 2×12 lumber can effectively bear the weight of roofs and ceilings.
2. Decking
When it comes to building decks, 2×12 lumber offers durability and aesthetic appeal. It can be used for:
- Deck Joists: Supporting the deck structure.
- Deck Boards: Creating a solid walking surface.
3. Furniture and Cabinetry
While less common, 2×12 lumber can also be utilized in furniture-making. Its width allows for creative designs, including tabletops and benches.
Types of 2×12 Lumber
1. Pressure-Treated Lumber
Pressure-treated 2×12 lumber is treated with chemicals to resist decay and insect damage, making it suitable for outdoor applications such as decks and fences.
2. Untreated Lumber
Untreated 2×12 lumber is typically used for interior projects where moisture exposure is minimal. It’s easier to work with and allows for a natural finish.
3. Composite Lumber
For projects requiring enhanced durability and low maintenance, composite lumber made from recycled materials can be an excellent alternative to traditional wood.
Buying 2×12 Lumber: Key Considerations
1. Quality of Lumber
When purchasing 2×12 lumber, consider the grade of the wood. Common grades include:
- Select Structural: The highest quality, free of defects.
- No. 1 Grade: Good quality with minimal defects.
- No. 2 Grade: Acceptable for most construction purposes, with more defects allowed.
2. Moisture Content
The moisture content of the lumber affects its strength and stability. When selecting 2×12 lumber, look for:
- Kiln-Dried: Lumber that has been dried in a kiln, reducing its moisture content and improving stability.
- Green Lumber: Lumber that has not been dried; typically has a higher moisture content and may shrink or warp over time.
3. Local Regulations
Before purchasing lumber, check local building codes and regulations. Specific projects may require particular types of lumber or treatments, especially in regions prone to moisture or pest issues.
Calculating Material Needs
1. Estimating the Quantity
To determine how much 2×12 lumber is needed for your project, start with the following steps:
- Measure the Area: Calculate the total area that requires framing or decking.
- Determine the Span: Understand the spacing required for joists or beams. Typical spacing ranges from 16 to 24 inches apart.
- Calculate Total Linear Feet: Based on the area and spacing, calculate the total linear feet of lumber needed.
2. Allowing for Waste
Always factor in an additional 10-15% for waste due to cuts and mistakes. This ensures you have enough material to complete your project without delays.
Installation Tips for 2×12 Lumber
1. Proper Cutting Techniques
When cutting 2×12 lumber, use a miter saw or circular saw for clean, accurate cuts. Ensure the blade is sharp to avoid splintering.
2. Fastening Methods
Use appropriate fasteners, such as:
- Lag Screws: Provide strong connections for structural applications.
- Decking Screws: Designed for outdoor use, often treated to resist corrosion.
3. Securing Joists and Beams
When installing floor joists or beams, secure them properly using metal brackets or hangers. This enhances the structural integrity and longevity of your project.
Conclusion
Understanding the actual dimensions of 2×12 lumber is crucial for successful construction projects. By recognizing the difference between nominal and actual sizes, we can ensure accurate measurements and better material selection. Additionally, knowing the various types of 2×12 lumber, their applications, and installation tips enhances our ability to create durable and effective structures.
