Basement Drainage System in Construction
Basements add valuable living and storage space to homes and commercial buildings, but they also face one of the most common construction challenges: water intrusion. Without a proper basement drainage system, water can seep through walls or floors, leading to structural damage, mold growth, and costly repairs.
In construction, a well-designed drainage system ensures that water is directed away from the foundation, keeping basements dry, safe, and functional. This article explains the types, components, installation, and maintenance of basement drainage systems in construction.
Importance of a Basement Drainage System
A drainage system in the basement is not just about convenience; it plays a crucial role in protecting the building.
- Prevents flooding during heavy rain or snowmelt.
- Reduces hydrostatic pressure on foundation walls.
- Minimizes mold and mildew growth, improving indoor air quality.
- Preserves structural integrity, preventing cracks and foundation damage.
- Increases property value by keeping the basement dry and usable.
Types of Basement Drainage Systems
There are several drainage solutions available in construction, each suited to different site conditions and budgets.
| System Type | Description | Best For |
|---|---|---|
| Interior French Drain | A perforated pipe installed along the basement floor perimeter that channels water to a sump pump. | Homes with recurring basement leaks. |

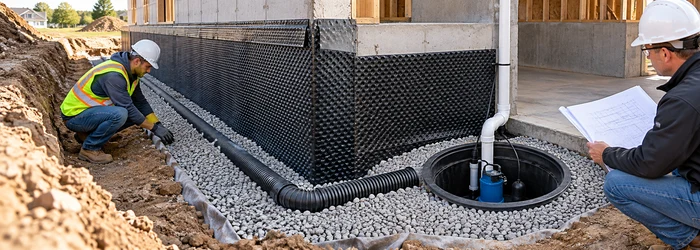

| Exterior French Drain | Drainage pipe installed outside the foundation at the footing level, covered with gravel. | New construction or major renovations. |
| Sump Pump System | Collects water in a pit and pumps it outside, away from the home. | Areas with high groundwater levels. |
| Surface Drainage | Gutters, downspouts, and grading around the home to divert water away. | First line of defense in all properties. |
| Drainage Tiles | Traditional clay or PVC tiles placed around foundations to collect water. | Long-term foundation waterproofing. |
Components of a Basement Drainage System
- Drainage Pipes – Perforated pipes that collect and direct water.
- Gravel Layer – Helps with water filtration and pipe protection.
- Drainage Matting – Installed against basement walls to channel moisture downward.
- Sump Basin & Pump – Collects water and expels it away from the property.
- Discharge Line – Directs water far from the foundation.
- Grading & Gutters – Exterior features that reduce water entry.
Installation Process
1. Assessment & Planning
- Evaluate soil conditions, water table, and existing drainage issues.
- Choose between interior and exterior systems.
2. Excavation
- Interior systems require cutting into the basement slab.
- Exterior systems require digging around the foundation.
3. Pipe Installation
- Lay perforated pipes in trenches with gravel backfill.
- Ensure proper slope for water flow.
4. Sump Pump Integration
- Install a sump pit and pump if needed.
- Connect pipes to direct water into the basin.
5. Finishing & Sealing
- Replace flooring (interior) or backfill soil (exterior).
- Seal cracks and joints for added waterproofing.
Cost of Basement Drainage Systems
The cost varies depending on the type of system, property size, and complexity.
- Interior French Drain: $40 – $85 per linear foot.
- Exterior French Drain: $50 – $100 per linear foot.
- Sump Pump Installation: $1,000 – $3,500.
- Comprehensive Waterproofing System: $5,000 – $15,000+.
While these costs may seem high, they are far less than the expense of repairing foundation damage or replacing water-damaged interiors.
Maintenance of Basement Drainage Systems
To ensure long-term performance:
- Inspect and clean sump pumps annually.
- Check discharge lines for blockages.
- Keep gutters and downspouts clear.
- Re-grade soil around the foundation if needed.
- Test backup power sources for sump pumps.
Conclusion
A basement drainage system in construction is critical for maintaining a dry, safe, and structurally sound building. Whether using interior French drains, sump pumps, or exterior solutions, these systems protect foundations from water damage and extend the lifespan of the property. Proper planning, installation, and maintenance ensure long-term effectiveness and peace of mind.
FAQs About Basement Drainage Systems in Construction
Q1. What is the most effective basement drainage system?
A combination of an interior French drain and sump pump is considered the most effective for controlling water intrusion.
Q2. How do I know if I need a basement drainage system?
Signs include water stains, mold growth, damp walls, or pooling water after heavy rain.
Q3. Is interior or exterior drainage better?
- Interior systems are less expensive and easier to install in existing homes.
- Exterior systems are best for new construction and provide long-term protection.
Q4. How long do basement drainage systems last?
With proper maintenance, most systems last 20–30 years or more.
Q5. Can I install a basement drainage system myself?
Basic surface drainage can be DIY, but interior or exterior French drains typically require professional installation.
Q6. Do basement drainage systems increase home value?
Yes, a dry basement improves property value and buyer confidence.
Q7. How often should I service my sump pump?
It’s recommended to inspect and clean the sump pump once a year and test it before the rainy season.
