Channel Drains in Construction: A Complete Guide
Effective water management is one of the most critical aspects of any construction project. Without proper drainage, surfaces like driveways, patios, walkways, and even basements can suffer from flooding, erosion, or structural damage. Channel drains, also known as linear drains or trench drains, play an important role in controlling surface water flow and preventing water-related damage in both residential and commercial projects.
This article explores the importance of channel drains in construction, their types, applications, installation process, and benefits.
What Are Channel Drains?

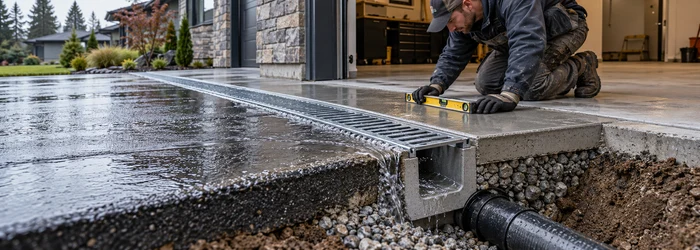

A channel drain is a long, narrow drainage system designed to capture surface water and direct it away from an area into underground drainage pipes. Unlike point drains, which collect water in a single spot, channel drains spread water collection across a line, making them more efficient for large paved or flat areas.
They typically consist of:
- Channel Body – A long trough that collects and guides water.
- Grate Cover – A removable top cover, often made of metal or plastic, allowing water to enter while preventing debris from clogging.
- Outlet Connections – Openings that connect to underground piping systems for water disposal.
Applications of Channel Drains in Construction
Channel drains are widely used in different construction projects, including:
- Driveways & Parking Lots
- Prevents water pooling near garages and entrances.
- Essential for sloped or flat driveways.
- Patios & Walkways
- Protects landscaping and prevents slippery surfaces.
- Maintains the integrity of pavers and concrete.
- Pool Decks
- Drains excess splash water, keeping the area safe and dry.
- Reduces water seepage into foundations.
- Commercial & Industrial Sites
- Handles heavy surface water in warehouses, loading docks, and factories.
- Ensures safety in high-traffic areas.
- Basement Entrances
- Keeps stairwells and basement doorways free from flooding.
- Roadways & Airports
- Directs rainwater away from traffic zones, improving safety.
Types of Channel Drains
Channel drains vary based on material, application, and load capacity. Common types include:
- Plastic Channel Drains
- Lightweight and easy to install.
- Suitable for residential driveways, patios, and light traffic areas.
- Polymer Concrete Channel Drains
- Durable and resistant to chemical damage.
- Common in commercial and industrial projects.
- Steel or Cast-Iron Channel Drains
- Heavy-duty, capable of supporting vehicle loads.
- Used in highways, airports, and industrial sites.
- Slot Drains
- Sleek design with narrow openings.
- Common in modern landscaping and decorative projects.
Benefits of Channel Drains in Construction
- Prevents Flooding – Keeps water from pooling on surfaces.
- Protects Structures – Reduces risk of foundation damage and erosion.
- Improves Safety – Prevents slippery surfaces in pedestrian areas.
- Durable & Long-Lasting – Especially when made of concrete or steel.
- Versatile Applications – Suitable for both residential and commercial projects.
- Aesthetic Options – Available with decorative grates to match landscapes.
Installation Process of Channel Drains
Installing channel drains requires careful planning to ensure proper slope and water flow. Here are the basic steps:
- Site Preparation
- Identify areas prone to water pooling.
- Mark out the channel location with proper slope.
- Excavation
- Dig a trench wide and deep enough for the channel drain.
- Ensure a slight slope toward the outlet.
- Base Preparation
- Place a compacted gravel or concrete base for stability.
- Channel Placement
- Position the channel sections in the trench.
- Connect outlets to underground drainage pipes.
- Securing the Drain
- Backfill around the channel with concrete or compacted soil.
- Install the grate cover on top.
- Final Testing
- Pour water to check flow and ensure no pooling occurs.
Cost of Channel Drains in Construction
The cost of channel drain installation depends on the:
- Material (plastic, concrete, steel, etc.)
- Load rating (pedestrian, light traffic, heavy vehicles)
- Length and depth of the system
- Labor costs in the region
On average:
- Plastic residential channel drains: $10 – $30 per linear foot
- Polymer concrete drains: $30 – $70 per linear foot
- Heavy-duty steel drains: $70 – $150 per linear foot
Conclusion
Channel drains in construction are vital for managing surface water effectively, protecting structures, and ensuring safety in both residential and commercial projects. With various material options, load ratings, and designs available, they provide flexibility for different construction needs. Proper installation ensures durability and effective drainage, making them a smart investment in any project.
FAQs About Channel Drains in Construction
Q1. What is the main purpose of a channel drain?
A channel drain collects and redirects surface water to prevent flooding, erosion, and water damage.
Q2. Are channel drains better than point drains?
Yes, channel drains are more effective for large paved areas because they collect water across a line rather than a single spot.
Q3. Can channel drains handle heavy vehicle loads?
Yes, cast-iron and steel channel drains are designed for highways, airports, and industrial areas with heavy traffic.
Q4. Do channel drains require maintenance?
Yes, periodic cleaning is necessary to remove debris, leaves, and dirt from the grate and channel.
Q5. How long do channel drains last?
Depending on the material, they can last 20–50 years with proper installation and maintenance.
Q6. Can I install channel drains myself?
Yes, DIY installation is possible for lightweight plastic drains in residential settings, but professional installation is recommended for commercial or heavy-duty systems.
Q7. Are channel drains expensive to install?
Costs vary, but residential systems are relatively affordable, while heavy-duty drains for industrial projects can be more costly due to materials and labor.
