House Sill In Construction In Usa: A Structural

Overview

House Sill In Construction In Usa: A Structural should be understood through its purpose, project setting, controlling documents, and the work it affects. This guide connects the topic to planning, design or scope decisions, coordination, construction checks, and handover rather than treating a label or estimate as a complete answer.

Use the source article's topic details with current project information. Local approvals, safety requirements, engineering decisions, and financial or legal treatment depend on the facts and responsible authority.

The Critical Importance of the House Sill in U.S. Residential Construction

In the framework of residential construction in the USA, the house sill—commonly referred to as the sill plate—serves as the primary structural element that connects the wooden frame of a house to its concrete or masonry foundation. This foundational connection is not only crucial for structural integrity, but also for energy efficiency, moisture control, and long-term durability.

What Is a House Sill and Where Is It Located?

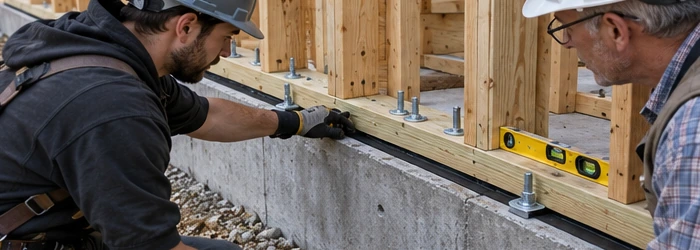

The house sill plate is a horizontal beam, usually composed of pressure-treated lumber, that rests directly on the top edge of the foundation wall. It acts as the starting point of the framing system and is the lowest wooden component in a structure. Bolted into place with anchor bolts embedded in the concrete, the sill plate forms the perimeter base onto which all wall framing is built.

Key Functions of a House Sill in U.S. Construction

A properly installed house sill serves multiple essential purposes, including:

• Anchoring the wooden framing to the foundation system
• Distributing structural loads from the framing to the foundation evenly
• Preventing uplift due to wind or seismic forces
• Acting as a barrier against moisture, pests, and air leaks
• Supporting insulation and thermal barriers to improve energy performance

Common Materials Used for House Sills in American Homes

In modern U.S. construction, the selection of materials for house sills focuses on longevity and resistance to environmental stressors. The most widely used materials include:

• Pressure-treated Southern Yellow Pine: This is the most prevalent choice due to its resistance to moisture, decay, and termites.
• Douglas Fir (chemically treated): Selected for its high load-bearing capacity and dimensional stability.
• Cedar and Redwood: Occasionally used in high-end or specialty construction for their natural resistance to rot and insects, though they are less common due to higher cost.

All sill plate materials in the U.S. must comply with local and national building codes, particularly the International Residential Code (IRC), which mandates the use of decay-resistant wood when in contact with concrete.

Step-by-Step Sill Plate Installation Process in the USA

1. Preparing the Foundation Surface

Before placing the sill, the top of the foundation must be scraped, leveled, and cleaned to ensure a smooth, even surface. Any debris or irregularities can compromise the seal between the sill plate and the foundation.

2. Placing Anchor Bolts

Anchor bolts are placed during the foundation pour, typically ½” diameter J-bolts spaced every 6 to 8 feet, and no more than 12 inches from any end or joint. These bolts must extend at least 7 inches into the concrete to meet code.

3. Installing a Sill Sealer

Between the concrete foundation and the wood sill plate, a compressible sill sealer is placed. This gasket-like material—often made of foam, neoprene, or closed-cell polyethylene—prevents air infiltration, moisture seepage, and radon gas intrusion, and compensates for minor unevenness in the foundation.

4. Measuring, Cutting, and Drilling the Sill Plate

Each piece of the sill plate must be measured precisely, cut to fit the foundation perimeter, and drilled to fit over the anchor bolts. Accurate drilling ensures a tight and flush connection without damaging the wood or bolts.

5. Securing the Sill Plate

The sill is fastened using galvanized washers and nuts. Each nut is tightened to a specified torque to ensure maximum compressive strength and resistance to uplift. Over-tightening must be avoided to prevent crushing the wood fibers, which could compromise the seal and structural stability.

Building Code Requirements for Sill Plates in the United States

To ensure both safety and performance, the IRC and local building codes set clear standards for sill plates:

• Anchor bolt spacing: 6’-0” max in seismic or wind-prone areas, 8’-0” in general areas
• Bolt diameter: ½” minimum
• Bolt embedment depth: 7 inches minimum
• Distance from end of sill: No more than 12 inches from the end
• Corrosion-resistant fasteners: Required for all treated wood connections

Failure to comply with these standards can result in code violations, structural failures, and increased liability during inspection or resale.

Thermal and Moisture Protection at the Sill Plate

As the interface between the interior and exterior of the building, the sill plate is a key point of thermal bridging and air leakage. Effective sealing and insulation techniques include:

• Using high-performance sill gaskets or flashing tapes
• Spray foam insulation around gaps and penetrations
• Caulking all seams and joints
• Integrating the sill seal into the home's air barrier system

These measures drastically improve the energy efficiency of the building and reduce heating and cooling costs over time.

Sill Plate Failure: Causes and Warning Signs

Despite best practices, sill plates can degrade over time, especially in older homes or poorly constructed foundations. Common issues include:

• Rot and decay from prolonged moisture exposure
• Termite and insect damage
• Corrosion of anchor bolts
• Cracking or splitting of wood due to improper fastening

Signs of failure include sagging floors, visible rot, water staining, pest infestations, and air drafts around the base of walls. Early detection and repair are essential to prevent widespread structural damage.

Sill Plate Replacement: A Structural Undertaking

Replacing a sill plate requires lifting the structure, often with hydraulic jacks, and removing the damaged section. The new sill must be treated, sealed, and bolted in place per current building codes. This operation typically involves:

• Supporting the structure temporarily
• Removing siding, sheathing, and flooring near the sill
• Cutting out the damaged sill plate
• Installing new anchor bolts if necessary
• Placing the new sill with appropriate sealing and anchoring

This is a job that demands engineering oversight and is best performed by licensed structural contractors.

Energy Code Integration and Advanced Sealing Techniques

With the rise of energy efficiency codes such as the International Energy Conservation Code (IECC), the sill area must now meet strict thermal performance standards. Techniques used include:

• Continuous insulation over the foundation wall
• Air sealing with closed-cell foam and sealants
• Blower door testing to verify airtightness

The house sill, although not visible once construction is complete, plays a measurable role in the building’s energy score and HERS rating.

Conclusion

The house sill in construction across the United States is far more than a passive connector between a home’s foundation and frame. It is a dynamic structural component, bearing the load of the building, providing a critical air and moisture barrier, and serving as the first line of defense against environmental threats.

Its proper selection, installation, sealing, and maintenance are fundamental to building longevity, safety, and energy performance. In all stages of residential construction, the house sill plate must be treated with the same technical precision and code compliance as any other critical structural component.

End of Article

Scope and meaning

Treat house sill in construction in usa: a structural as a set of decisions about household use, the parcel, and the construction that will be maintained after move-in. A home plan sets circulation, privacy, daylight, storage, service routes, structure, and envelope. Record the intended household, accessibility needs, future changes, and priorities before comparing layouts. Separate fixed requirements from preferences.

Planning inputs to confirm

Start with verified parcel information, not an online boundary sketch. Confirm ownership and restrictions, obtain a survey where appropriate, and identify access, grades, drainage, utilities, easements, neighboring structures, and construction access. Soil, groundwater, slope, trees, and exposure can alter foundation work. Keep unverified conditions on an investigation list with an owner and target date.

Design choices and trade-offs

Translate the brief into room relationships before settling on exterior style. Consider entry, public and private zones, noise, daylight, storage, door swings, stairs, furniture, and equipment at realistic scale. Compact form may reduce envelope area but does not guarantee lower cost if it adds complex structure, retaining, unusual spans, or difficult access.

A practical project sequence

Coordinate architecture, structure, civil, electrical, plumbing, mechanical, and landscape. Resolve beams at openings, service routes through framing, equipment access, and drainage paths. A field suggestion does not replace design review. Keep plans, elevations, details, schedules, and specifications on the same approved revision.

Coordination and responsibilities

Budget by defined area, revision, finish, site assumptions, and date. Separate land, design, surveys, testing, utilities, site preparation, structure, enclosure, interiors, equipment, approvals, finance, and contingency. Per-area figures hide basements, garages, retaining, utility distance, and access; use current local quotes and identify exclusions.

Cost and schedule considerations

Inspect layout, foundations, structural connections, weather barriers, window interfaces, penetrations, drainage, and equipment access before concealment. Follow approved requirements for tests. Photograph hidden work with date and location, retain product data, and close punch items with an owner, deadline, and correction evidence.

Quality checks

Plan for life after construction: shutoffs, filters, cleanouts, equipment clearances, drainage routes, finish care, and service panels. Keep warranties, commissioning, drawings, inspection reports, and maintenance intervals together. Before later alterations, review structure and services rather than cutting based on appearance.

Topic-specific questions

The source outline surfaces points to verify against current project information:

• The Critical Importance of the House Sill in U.S. Residential Construction. Check the exact location, source revision, reviewer, and whether the point is a definition, design intent, measurement, requirement, or example. Record the answer before procurement or installation if it changes scope, sequence, or acceptance.
• What Is a House Sill and Where Is It Located?. Check the exact location, source revision, reviewer, and whether the point is a definition, design intent, measurement, requirement, or example. Record the answer before procurement or installation if it changes scope, sequence, or acceptance.
• Key Functions of a House Sill in U.S. Construction. Check the exact location, source revision, reviewer, and whether the point is a definition, design intent, measurement, requirement, or example. Record the answer before procurement or installation if it changes scope, sequence, or acceptance.

Project checklist

Before committing to a decision about house sill in construction in usa: a structural, work through these checks:

1. Record location, purpose, project phase, date, and controlling revision.
2. Separate verified conditions from assumptions, open questions, allowances, and exclusions.
3. Confirm scope, measurement, product or system, interfaces, access, and responsibility.
4. Agree who reviews the work, which evidence is required, and when inspection must occur.
5. Document approved changes with location, cost or schedule effect, owner, date, and closure.
6. Keep tests, photographs, record information, warranties, and maintenance instructions for handover.

Common mistakes to avoid

Do not rely on a broad label, old drawing, generic figure, or verbal field decision when the actual scope can be checked. Confirm the basis, location, version, and reviewer before work is committed. When evidence is incomplete, mark the conclusion provisional and name the next action instead of presenting an assumption as fact.

Frequently asked questions

What should be checked first?

Confirm intended use, parcel, access, utilities, drainage, soil questions, and local review path. Separate verified facts from items needing survey, testing, or professional review.

Can one plan work on every lot?

No. Orientation, setbacks, slope, soil, climate, utilities, access, and household needs change the design.

Is cost per square foot enough?

No. It is only a rough comparison when area, finish, site work, systems, and exclusions match. Use current scope-based quotes.

When should a change be approved?

Before affected work is ordered or installed. Record drawing, location, cost and schedule effect, and responsible approval.

What belongs in handover?

Approved and record drawings, inspections, tests, product data, warranties, service instructions, open items, and maintenance contacts.

Related Building Design resources

Continue with Back of a House in Construction, The Ultimate Guide to the Construction of a Tiny House, Cornice on a House in Construction in the USA. Apply each resource only to its scope and verify project decisions against approved records.

Conclusion

A reliable result for house sill in construction in usa: a structural comes from clear scope, current evidence, coordinated decisions, and documented checks. Obtain qualified review where safety or compliance is involved, and keep the approved record available for construction and future maintenance.
