A 2×6 can support a substantial amount of weight in the right application, but there is no single safe answer to the question, “How much weight can a 2×6 hold?”

A 2×6 used as a short vertical stud behaves completely differently from a 2×6 spanning horizontally between two supports. Even two horizontal 2×6 boards can have very different load capacities depending on their span, orientation, wood species, grade, spacing, support conditions, and whether the load is concentrated or distributed.

Quick answer: A standard U.S. 2×6 measures approximately 1.5″ × 5.5″. Its safe load capacity cannot be determined from size alone. A short 2×6 installed on edge can carry considerably more load than the same board spanning a longer distance or laid flat.

This guide explains the factors that determine 2×6 load capacity, how horizontal and vertical applications differ, and why span and orientation are so important.

2×6 Load Capacity — Quick Reference

The biggest mistake is treating “2×6” as a load rating.

It is only a lumber size.

What Is the Actual Size of a 2×6?

A nominal 2×6 used in modern U.S. construction typically measures approximately:

1.5 inches × 5.5 inches

rather than a full 2 inches × 6 inches.

The nominal dimensions refer to the lumber’s original size designation before drying and surfacing.

For structural calculations, the actual 1.5″ × 5.5″ cross section matters.

The orientation of those dimensions is also extremely important.

When installed on edge:

1.5″ wide × 5.5″ deep

When laid flat:

5.5″ wide × 1.5″ deep

The lumber itself has not changed. Only its orientation has changed—but its bending performance changes dramatically.

How Much Weight Can a 2×6 Hold?

There is no universal number of pounds that every 2×6 can safely support.

To determine the load capacity of a particular 2×6, you need to know at least:

• span,
• species,
• grade,
• orientation,
• support conditions,
• load location,
• load distribution,
• moisture/service condition,
• duration of loading,
• and applicable deflection criteria.

For floor systems, member spacing also matters because it affects how much floor area contributes load to each joist.

This is why statements such as:

“A 2×6 can hold 1,000 pounds.”

or:

“A 2×6 can support 2,000 pounds.”

are incomplete without describing the structural conditions.

The same piece of lumber might perform adequately under one configuration and be completely unsuitable under another.

2×6 Horizontal Load Capacity

When a 2×6 spans horizontally between supports, it acts like a beam or joist.

Typical applications include:

• floor joists,
• deck joists,
• roof rafters,
• ceiling joists,
• shelf framing,
• and other spanning members.

A horizontal member must typically be checked for several conditions.

Bending

Loads cause the member to bend between its supports.

Shear

Internal shear forces develop within the member and can be particularly important near supports.

Deflection

Even when the lumber has adequate bending strength, excessive sagging or movement can make the assembly unacceptable.

Bearing

The ends of the member need sufficient bearing against their supports.

Connections

Joist hangers, fasteners, ledgers and other connections must safely transfer the forces.

Therefore, horizontal 2×6 load capacity is not simply the point at which the wood breaks.

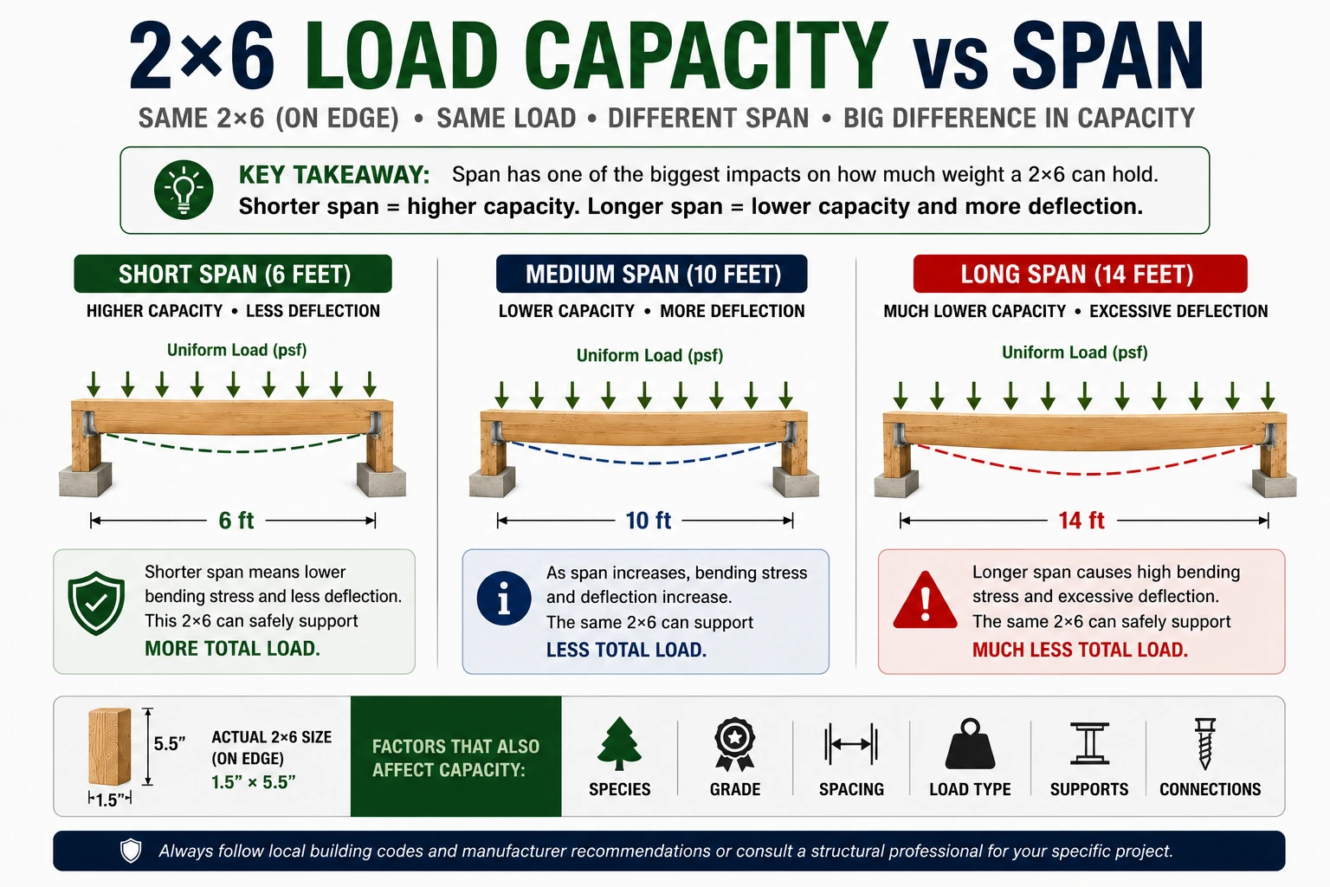

Span Has a Major Effect on 2×6 Load Capacity

Span is one of the most important variables.

Span means the distance between structural supports.

Consider the same species and grade of 2×6 installed on edge:

Short span → generally greater load-carrying ability

Long span → generally lower load-carrying ability and greater deflection

As the unsupported distance increases, bending demand and deflection increase significantly.

This is why a 2×6 that performs well across a short opening should not automatically be assumed suitable across a much longer opening.

Building-code joist tables demonstrate this relationship clearly: allowable spans change with species, grade, joist spacing and design loads rather than being assigned one universal 2×6 value.

2×6 On Edge vs Laid Flat Load Capacity

Orientation makes an enormous difference when a 2×6 carries vertical loads while spanning horizontally.

2×6 On Edge

The cross section is approximately:

5.5″ vertical × 1.5″ horizontal

This is the normal orientation for joists, rafters and many other spanning applications.

The greater vertical depth makes the member much more efficient in bending.

2×6 Laid Flat

The cross section becomes:

1.5″ vertical × 5.5″ horizontal

The board is now much shallower in the direction that matters for bending.

As a result, its bending stiffness and capacity are dramatically reduced.

Why the Difference Is So Large

For a rectangular section, bending stiffness is strongly influenced by the cube of its depth.

That means changing the vertical structural depth from 5.5 inches to 1.5 inches has a much greater effect than many people expect.

Therefore:

Never use the load capacity of an on-edge 2×6 to estimate the capacity of the same board laid flat.

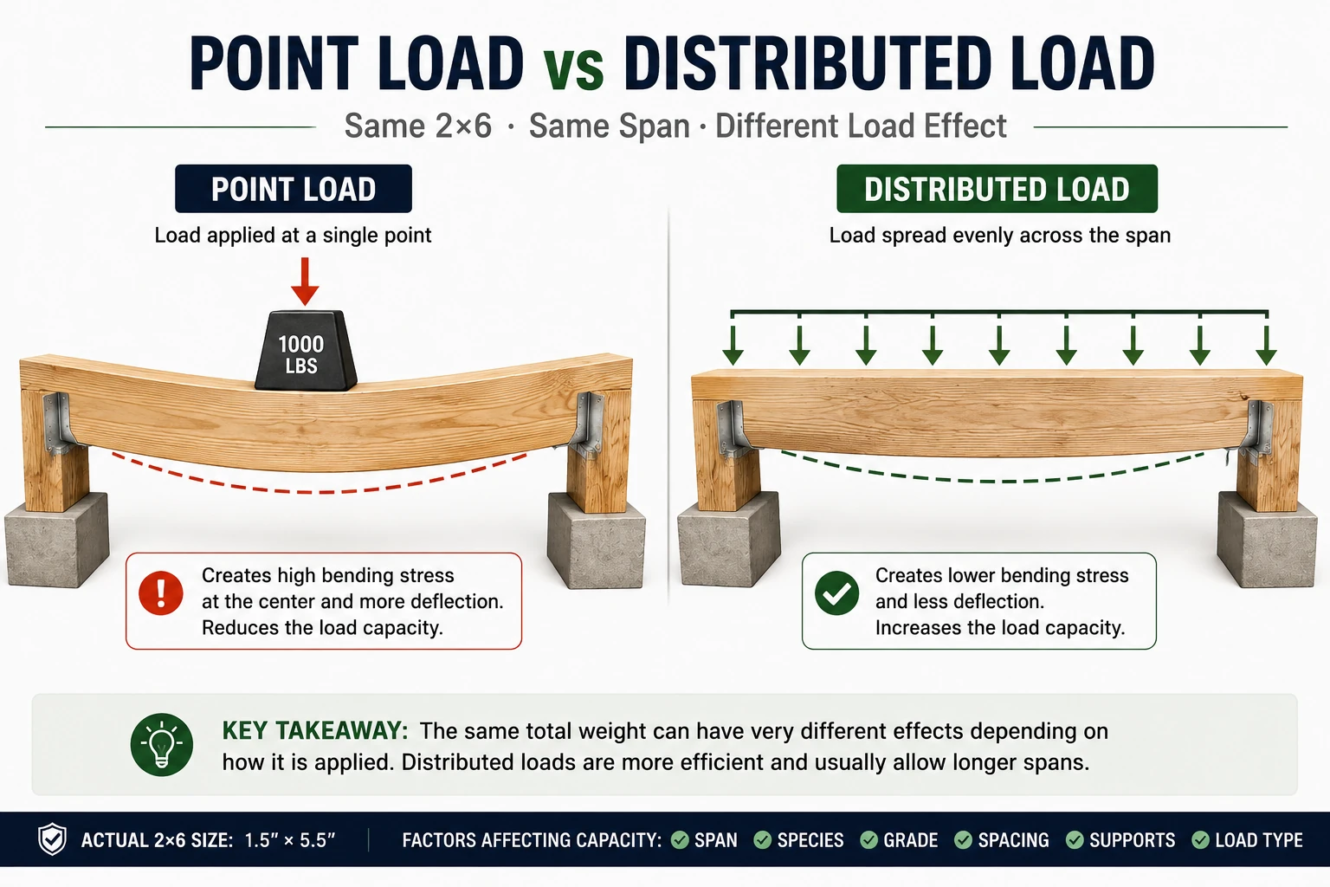

Point Load vs Distributed Load

Another major factor is how the weight is applied.

Distributed Load

A distributed load is spread across part or all of the member.

Examples include:

• floor loads,
• roof loads,
• decking loads,
• and uniformly stored materials.

Instead of acting at one exact point, the load is distributed over an area or length.

Point Load

A point load is concentrated at a specific location.

Examples might include:

• a post bearing onto a beam,
• heavy equipment leg,
• concentrated storage load,
• or another structural member transferring force to one location.

A concentrated load can create significantly different bending, shear, bearing and connection demands than the same total weight distributed across the member.

Therefore:

500 lb distributed across a system is not structurally equivalent to a 500 lb concentrated load at the middle of one joist.

The location of a point load also matters.

Center Load vs Load Near a Support

For a simply supported horizontal member, a concentrated load near the middle generally creates greater bending demand than the same load placed close to a support.

Loads near supports can still create significant:

• shear,
• bearing,
• and connection forces.

This is why simply knowing the number of pounds is not enough.

You must also know where those pounds are applied.

2×6 Load Capacity by Wood Species

Different lumber species and species groups have different structural properties.

Common structural lumber used in the United States includes:

The species name alone still does not determine load capacity.

The grade must also be considered.

Published U.S. wood-design standards provide different reference design values for properties such as bending, shear, compression and modulus of elasticity, with adjustments required depending on design conditions.

Lumber Grade Affects 2×6 Capacity

Common structural lumber grades may include:

• Select Structural
• No. 1
• No. 2
• No. 3
• Stud

Grade reflects limits on characteristics such as:

• knots,
• slope of grain,
• splits,
• checks,
• wane,
• and other characteristics.

Two 2×6 boards may therefore have exactly the same dimensions while having different allowable design values.

When structural capacity matters, check the grade stamp rather than assuming every 2×6 is interchangeable.

How Much Weight Can a 2×6 Floor Joist Hold?

There is no single pounds-per-joist answer.

Floor systems are normally designed around loads applied over an area, commonly expressed in pounds per square foot (psf).

The floor load is then transferred through:

floor sheathing → joists → beams/walls → foundation

The amount assigned to an individual joist depends partly on its tributary width.

For example, joists spaced:

12″ O.C.

are closer together than joists at:

24″ O.C.

Under otherwise identical floor loading, closer spacing generally means each joist supports a narrower strip of floor.

Residential floor-joist span tables therefore account for variables such as joist size, spacing, species, grade, dead load, live load and deflection criteria.

This is much more useful than trying to assign a generic pound capacity to a single 2×6.

How Joist Spacing Changes Load per 2×6

Common framing spacing includes:

12″ O.C.
16″ O.C.
24″ O.C.

O.C. means on center.

It is measured from the centerline of one joist to the centerline of the next.

Spacing does not change the material strength of the 2×6 itself.

Instead, it changes the tributary width assigned to each member.

For example, under the same uniform floor load:

Closer joists → less floor area assigned to each joist

Wider-spaced joists → more floor area assigned to each joist

That distinction is important when discussing 2×6 load capacity.

Example: Why Pounds Alone Can Be Misleading

Imagine two identical 2×6 joists.

Both have the same:

• species,
• grade,
• actual dimensions,
• orientation,
• and moisture condition.

But one spans a relatively short distance while the other spans much farther.

Now place the same load on both.

The longer member will generally experience greater bending effects and significantly greater deflection.

Now change the load from evenly distributed to concentrated near the center.

The structural response changes again.

This demonstrates why:

2×6 load capacity is a structural-condition question, not simply a lumber-size question.

How Much Weight Can a Vertical 2×6 Hold?

A vertical 2×6 behaves very differently from a horizontal 2×6.

When used as a wall stud, much of the gravity force may act parallel to the wood grain.

The important structural considerations can include:

• compression parallel to grain,
• stud height,
• unsupported length,
• slenderness,
• bracing,
• eccentricity,
• species,
• grade,
• spacing,
• and load distribution.

A short, well-braced vertical member can behave very differently from a tall, poorly braced member.

Therefore, a generic statement such as:

“A vertical 2×6 holds X pounds”

is also unreliable without defining the assembly.

Walls must additionally be considered as systems incorporating:

• sheathing,
• top and bottom plates,
• connections,
• headers,
• openings,
• lateral bracing,
• and load paths.

2×6 Deck Joist Load Capacity

Deck framing provides another good example of why a universal weight number does not work.

Deck joist requirements depend on:

• species,
• grade,
• joist spacing,
• span,
• cantilever,
• loading,
• moisture exposure,
• fasteners,
• connections,
• and local code requirements.

Code span tables consequently provide different allowable spans for 2×6 deck joists depending on species and spacing.

Exterior lumber may also require pressure treatment or naturally durable species depending on the exposure and application.

Structural capacity and durability must both be considered.

2×6 Roof Load Capacity

When a 2×6 is used as a rafter or ceiling joist, another set of variables becomes important.

These can include:

• roof span,
• rafter spacing,
• roof slope,
• roofing dead load,
• snow load,
• attic loading,
• species,
• grade,
• and deflection requirements.

For example, residential code tables for ceiling joists provide different allowable spans according to lumber species, grade, joist spacing and loading conditions.

A 2×6 roof member that works in one location may therefore be inappropriate for another climate or roof assembly.

Does Doubling a 2×6 Double Its Load Capacity?

Not automatically.

Placing two 2×6 boards next to each other can increase the capacity of an appropriately designed built-up member, but simply putting two boards together does not guarantee that they will act as one structural member.

Important factors include:

• connection pattern,
• fastener type,
• load sharing,
• bearing,
• lateral restraint,
• member quality,
• and how the load is introduced.

A built-up beam should therefore be designed as an assembly rather than assuming:

2 boards = exactly 2× the safe load.

Does Pressure Treatment Change 2×6 Load Capacity?

Pressure treatment does not create a universal new capacity for a 2×6.

Treated lumber is commonly used where resistance to decay or insects is required, particularly in:

• decks,
• exterior structures,
• sill plates,
• and other moisture-exposed locations.

Structural design must still account for the lumber species, grade and applicable adjustment factors.

Connections and fasteners must also be suitable for the treated lumber and exposure conditions.

Strength vs Load Capacity

These two terms are related but should not be treated as identical.

2×6 Strength

Strength refers to material and structural properties such as:

• bending,
• shear,
• compression,
• and stiffness.

2×6 Load Capacity

Load capacity refers to how much load a specific member or assembly under defined conditions can safely carry.

To determine capacity, strength properties must be combined with:

• geometry,
• span,
• loading,
• supports,
• spacing,
• connections,
• service conditions,
• and applicable design criteria.

This is why our 2×6 Strength Chart and 2×6 Load Capacity guides cover separate search intents.

Common Mistakes When Estimating 2×6 Load Capacity

Using a random pound number from the internet

A number without span, grade, species and load configuration has little structural meaning.

Ignoring orientation

A 2×6 laid flat is not equivalent to a 2×6 installed on edge for a spanning application.

Ignoring span

Even a relatively small increase in span can substantially affect bending and deflection.

Confusing distributed and point loads

The same total weight can produce different structural demands depending on how and where it is applied.

Ignoring deflection

A joist does not have to break to be unsuitable. Excessive deflection can govern the design.

Ignoring species and grade

Not every 2×6 has identical structural properties.

Ignoring connections

A strong lumber member does not compensate for an inadequate hanger, fastener, ledger or bearing connection.

Treating a joist as an isolated board

Floor and roof framing are systems. Spacing, sheathing, load distribution, bracing and supports all matter.

How to Determine the Safe Load Capacity of a 2×6

For an actual project, start by identifying the exact structural configuration.

Determine:

1. Application — joist, rafter, beam component, stud or other member.
2. Actual dimensions — normally approximately 1.5″ × 5.5″.
3. Species — such as Southern Pine, Douglas Fir-Larch, Hem-Fir or SPF.
4. Grade — such as No. 1 or No. 2.
5. Orientation — on edge, flat or vertical.
6. Span or unsupported length.
7. Member spacing, where applicable.
8. Load type — distributed or concentrated.
9. Load location.
10. Dead, live, snow or other applicable loads.
11. Support and bearing conditions.
12. Connection details.
13. Moisture/service conditions.
14. Required deflection limits.

Then use the appropriate:

• building-code tables,
• recognized wood-design values,
• approved span tables,
• manufacturer information,
• or structural engineering calculations.

For structural applications where failure could cause injury or significant property damage, use an appropriately qualified design professional when required.

Frequently Asked Questions

How much weight can a 2×6 hold horizontally?

There is no single safe number. Horizontal capacity depends heavily on span, orientation, species, grade, load distribution and support conditions.

How much weight can a 2×6 hold vertically?

A vertical 2×6 can carry substantial compression loads in appropriate assemblies, but capacity depends on species, grade, height, bracing, slenderness, load eccentricity and connections. A universal pound value should not be assumed.

Is a 2×6 stronger on edge or flat?

For typical vertical loading on a horizontal span, a 2×6 is far more effective on edge, with its approximately 5.5-inch dimension vertical.

Does a shorter 2×6 hold more weight?

Under otherwise comparable conditions, reducing the unsupported span generally increases the load that can be carried while satisfying bending and deflection requirements.

Does wood species affect 2×6 load capacity?

Yes. Different species and species groups have different published structural design values.

Does lumber grade matter?

Yes. Grade can significantly affect allowable structural design values.

Can a 2×6 support a floor?

A 2×6 can be used as a floor joist where the species, grade, span, spacing, loads and deflection requirements permit it. Applicable floor-joist span tables should be used.

Can a 2×6 be used for a deck joist?

Yes, in appropriate designs. The allowable span depends on species, spacing, grade/design assumptions, loading and other conditions.

Can a 2×6 support a roof?

2×6 lumber is commonly used in roof framing where applicable span, spacing, species, grade, roof loading and local requirements permit it.

Does 16″ O.C. mean a 16-inch clear gap?

No. 16″ O.C. means 16 inches from the centerline of one framing member to the centerline of the next. It does not mean a 16-inch clear opening between the boards.

Is a point load worse than a distributed load?

A concentrated point load and a distributed load create different bending, shear and bearing demands. Their effects depend on magnitude, location, span and support conditions, so equal total weights should not automatically be considered equivalent.

How much weight can a 2×6 hold over an 8-foot span?

The span alone is not enough to provide a safe capacity. Species, grade, orientation, load type, support conditions and deflection criteria are also required.

How much weight can a 2×6 hold over a 10-foot span?

Again, there is no universal pound value based only on a 10-foot span. Use the applicable span/design tables or structural calculations for the exact application.

Will two 2×6 boards hold twice as much as one?

Not necessarily. The members must be properly connected and designed to share load. Built-up members should be evaluated as structural assemblies.

Final Answer

So, how much weight can a 2×6 hold?

There is no single number that applies to every 2×6.

A 2×6’s safe load capacity depends on:

span + orientation + species + grade + load type + load location + spacing + supports + connections + service conditions.

A short 2×6 installed on edge can perform very differently from an identical board across a long span. A board laid flat performs very differently from one installed on edge. A point load at midspan also creates different demands from the same total weight distributed across a framing system.

For actual construction, determine the exact structural conditions and use applicable building-code span tables, recognized wood-design values, approved plans or engineering calculations rather than relying on a generic online pound rating.
