Intercept Drain in Construction: A Comprehensive Guide

In the realm of construction and civil engineering, effective drainage systems are essential for maintaining structural integrity and preventing water damage. One such system that plays a crucial role is the intercept drain. This article will provide an in-depth look at intercept drains, covering their definition, design, installation, and benefits in construction projects.

What is an Intercept Drain?

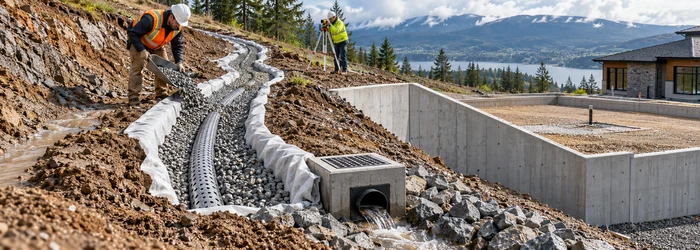

An intercept drain is a type of drainage system designed to capture and redirect surface water runoff before it can negatively impact a construction site. This system is typically installed at the upper end of a slope or near potential sources of water accumulation. The primary purpose of an intercept drain is to prevent water from infiltrating into foundations or other critical structural elements, thus safeguarding against erosion, flooding, and moisture-related issues.

Key Features of Intercept Drains

  1. Trench Design: Intercept drains are usually constructed as trenches lined with impermeable materials. This design facilitates the effective collection and redirection of surface water.
  2. Inlet Structures: These drains may include inlet structures that help capture water more efficiently, especially during heavy rainfall.
  3. Outlet Systems: The design often incorporates an outlet system that directs the collected water to a safe discharge point, such as a stormwater drainage system or a retention pond.

The Importance of Intercept Drains in Construction

1. Erosion Control

One of the primary benefits of intercept drains is their ability to control erosion. By capturing and redirecting water runoff, these drains help prevent soil displacement and protect the integrity of the surrounding landscape. This is particularly critical in areas with steep slopes or loose soil, where erosion can quickly lead to serious structural issues.

2. Foundation Protection

Water infiltration can pose a significant threat to building foundations. Intercept drains provide a barrier against groundwater, ensuring that moisture does not seep into basements or crawl spaces. This protection is vital for maintaining the durability of the structure and preventing costly repairs associated with water damage.

3. Improved Site Stability

By managing surface water runoff effectively, intercept drains contribute to the overall stability of the construction site. This stability is essential not only during the construction phase but also for the long-term sustainability of the building.

Design Considerations for Intercept Drains

When designing an intercept drain, several factors must be taken into account:

1. Site Assessment

A thorough site assessment is crucial for determining the best location and design for an intercept drain. This includes analyzing the topography, soil type, and existing drainage patterns. Understanding these elements will inform decisions regarding the drain’s size, slope, and outlet configuration.

2. Sizing the Drain

The size of the intercept drain is a critical factor in its effectiveness. A larger drain may be necessary for areas with high runoff potential, while smaller drains may suffice in less vulnerable regions. Engineers often use hydrological models to calculate the required drain size based on anticipated rainfall and runoff volumes.

3. Material Selection

Selecting appropriate materials for the construction of intercept drains is essential for ensuring durability and functionality. Common materials include concrete, plastic, and geomembranes. The choice of material will depend on factors such as soil conditions, expected water flow, and environmental considerations.

Installation Process for Intercept Drains

The installation of intercept drains requires careful planning and execution. Below are the key steps involved in the process:

1. Site Preparation

Before installation, the site must be prepared by clearing vegetation and debris. This allows for an unobstructed view of the ground and ensures that the drain can be installed accurately.

2. Excavation

Excavating a trench to the required depth and width is the next step. The trench should be sloped to facilitate water flow toward the outlet. Proper excavation techniques are critical to ensure that the drain functions effectively.

3. Installation of Lining

Once the trench is excavated, a lining material is placed to prevent water infiltration into the surrounding soil. This lining could be made of impermeable materials such as geomembranes or compacted clay.

4. Inlet and Outlet Structures

Install any necessary inlet and outlet structures to facilitate efficient water capture and discharge. These structures should be positioned to maximize the drain’s effectiveness.

5. Backfilling and Compaction

After installing the lining and structures, the trench is backfilled with appropriate materials. It is essential to compact the soil properly to ensure stability and prevent future settlement.

Maintenance of Intercept Drains

Regular maintenance is crucial for the long-term functionality of intercept drains. Here are some key maintenance practices:

1. Routine Inspections

Conducting routine inspections helps identify any blockages or structural issues early on. Inspectors should look for signs of erosion, sediment buildup, or damage to the drain system.

2. Cleaning and Debris Removal

Debris such as leaves, soil, and sediment can accumulate in intercept drains, hindering their performance. Regular cleaning ensures that water can flow freely through the system, maintaining its effectiveness.

3. Repairing Damage

Any damage identified during inspections should be addressed promptly. This includes repairing cracks in the lining or replacing damaged inlet and outlet structures to ensure continued functionality.

Conclusion

In summary, intercept drains play a vital role in managing surface water runoff in construction projects. Their ability to prevent erosion, protect foundations, and enhance site stability makes them an indispensable element in modern construction practices. By considering design factors, implementing proper installation techniques, and maintaining these systems, construction professionals can significantly improve the resilience and longevity of their projects.

For more detailed insights on this topic, check out this informative article.
