Lagging Wall in Construction: Functions, Materials, Installation & Applications
A lagging wall in construction plays a vital role in excavation support, acting as a temporary or permanent retaining structure to prevent soil collapse. Commonly seen in urban and deep excavation projects, lagging walls are cost-effective, adaptable, and essential to ensuring worker safety and structural stability during earthworks.
In this comprehensive article, we’ll explore what lagging walls are, how they function, their types, materials used, construction methods, benefits, limitations, and real-world applications.
What Is a Lagging Wall in Construction?

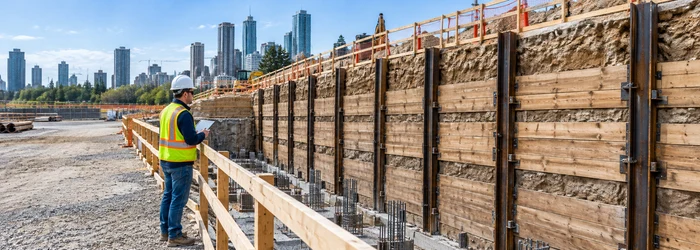

A lagging wall is a structural assembly used to retain soil or earth during an excavation. It typically consists of vertical soldier piles (steel H-piles) and horizontal lagging materials (like timber, concrete panels, or steel plates) that are placed between these piles to form a continuous wall that holds back soil.
Lagging walls are most commonly used in temporary excavation shoring systems, though in some cases, they may become part of a permanent structure.
How a Lagging Wall Works
- Soldier piles are installed vertically at regular intervals along the excavation perimeter.
- Excavation is done in phased lifts (usually 3 to 5 feet at a time).
- As each new depth is reached, lagging panels are inserted horizontally between the soldier piles to support the soil.
- This process continues until the desired excavation depth is achieved.
- For deep or high-load applications, bracing systems like tiebacks, struts, or anchors may be added.
Components of a Lagging Wall System
| Component | Description |
|---|---|
| Soldier Piles | Vertical steel H-beams driven into or drilled into the ground |
| Lagging Panels | Horizontal panels placed between piles (typically timber, concrete, or steel) |
| Tiebacks | Anchors inserted into the soil to resist lateral loads (used in deeper digs) |
| Braces/Struts | Horizontal or diagonal supports between walls or across the excavation |
Types of Lagging Materials Used
| Material | Use Case | Advantages | Disadvantages |
|---|---|---|---|
| Timber | Temporary shoring | Affordable, fast installation | Prone to decay and limited lifespan |
| Precast Concrete | Permanent wall support | Strong, durable, fire-resistant | Heavy and more costly |
| Steel Plates | High-load or reusable systems | High strength, reusable | Expensive, requires machinery |
| Shotcrete | Irregular surfaces/slope faces | Sprayed on-site, quick for complex shapes | Needs curing time, skilled labor |
Applications of Lagging Walls in Construction
Lagging walls are used wherever soil needs temporary or permanent support, especially in:
- Urban basement excavations
- Utility trenches
- Foundation support for buildings
- Bridge abutments
- Shaft or tunnel access
- Retaining walls on slopes or roadways
- Underpasses and underground parking structures
Advantages of Lagging Walls
| Advantage | Details |
|---|---|
| Cost-Effective | Timber lagging in particular offers a low-cost solution for temporary support |
| Adaptable | Can be installed in tight urban settings or irregular excavation shapes |
| Fast Installation | Soldier piles and lagging panels can be quickly deployed in phased excavation |
| Reusable Materials | Steel lagging and even timber (in some cases) can be salvaged and reused |
| Minimal Disturbance | Causes less vibration and noise compared to other shoring methods |
Limitations of Lagging Walls
| Limitation | Mitigation |
|---|---|
| Timber decay in wet conditions | Use pressure-treated timber or switch to concrete/steel panels |
| Not watertight | Combine with waterproof membranes or install drainage systems |
| Limited depth without bracing | Add tiebacks or struts to increase wall support for deeper excavations |
| Not suitable for very soft soils | Consider alternative shoring systems like secant pile or sheet piling |
| Labor-intensive for deep walls | Requires staged excavation and constant monitoring for wall integrity |
Installation Process of Lagging Walls
- Site Assessment: Conduct geotechnical analysis to determine soil type, water table, and surcharge loads.
- Pile Installation: Install soldier piles (H-beams) at regular intervals (usually 4–10 feet apart).
- Initial Excavation: Excavate to the first lift depth (e.g., 3–5 feet).
- Lagging Panel Placement: Insert horizontal lagging (timber, concrete, steel) between soldier piles.
- Repeat: Continue excavation and lagging placement until final depth is reached.
- Add Bracing/Tiebacks: For deep or unstable conditions, install bracing systems for lateral support.
Table: Lagging Wall Design Parameters
| Parameter | Typical Range |
|---|---|
| Soldier pile spacing | 4 to 10 feet |
| Lagging thickness | 2 to 4 inches (timber), 6–12 in (concrete) |
| Excavation depth | Up to 30+ feet with tiebacks |
| Tieback spacing (horizontal) | 6 to 8 feet |
| Lagging installation rate | 250–500 sq ft per day (varies by crew and material) |
Permanent vs Temporary Lagging Walls
| Type | Materials | Use Case | Lifespan |
|---|---|---|---|
| Temporary | Timber, untreated panels | Trenching, temporary excavation | Weeks to months |
| Permanent | Concrete, treated timber | Retaining walls, permanent foundation support | 50+ years (concrete) |
Lagging Walls vs Other Retaining Systems
| System | Best Use Case | Installation Speed | Cost | Durability |
|---|---|---|---|---|
| Lagging Wall | Urban excavation, moderate depths | Fast | Low–Medium | Medium (high if concrete) |
| Sheet Piles | Marine, water-heavy environments | Very fast | Medium–High | High |
| Secant Pile Walls | Deep, wet, or unstable soils | Moderate | High | Very High |
| Soil Nailing + Shotcrete | Sloped terrains, uneven faces | Moderate | Medium | High |
Common Mistakes to Avoid
- Skipping bracing in deep excavations → May result in wall failure
- Improper pile spacing → Can overload lagging and cause soil loss
- Using untreated wood in wet soil → Leads to premature decay
- Ignoring groundwater management → Risk of soil sloughing or wall movement
- Failure to monitor wall movement → Especially critical in adjacent building zones
Conclusion
A lagging wall is a time-tested, practical solution for supporting excavated earth and stabilizing job sites. Whether temporary or permanent, lagging walls provide versatility, cost-efficiency, and the structural reliability needed to safely complete construction projects—especially in urban and space-constrained environments.
By choosing the appropriate materials and design approach, contractors can effectively tailor a lagging wall system to suit a wide range of excavation needs, soil conditions, and budget considerations. From timber lagging for short-term trenches to reinforced concrete walls for long-term infrastructure, lagging walls remain a cornerstone in modern excavation and support strategies.
FAQs About Lagging Walls in Construction
Q1: What is a lagging wall?
A lagging wall is a type of retaining structure formed by placing horizontal panels (lagging) between vertical piles to retain soil during excavation.
Q2: What materials are commonly used in lagging walls?
Typical materials include timber (for temporary use), precast concrete, steel plates, and shotcrete for various applications.
Q3: Where are lagging walls most often used?
They are used in urban excavation, utility trenching, bridge construction, basement construction, and slope stabilization.
Q4: Can lagging walls be permanent?
Yes. Concrete lagging walls can be permanent, while timber walls are typically used for temporary applications.
Q5: What’s the difference between lagging and shoring?
Shoring refers to the vertical support (like piles and braces), while lagging refers to the horizontal panels that retain soil between shoring elements.
Q6: How deep can lagging walls go?
With proper design, bracing, and materials, lagging walls can support excavations up to 30 feet or more.
Q7: Is wood lagging safe for wet environments?
Only if pressure-treated timber is used. Otherwise, it can rot quickly and compromise wall integrity.
Q8: How is lagging installed?
Lagging panels are installed in stages, placed horizontally between vertical piles as the excavation progresses downward.
Q9: Are lagging walls reusable?
Steel and timber lagging may be reused if they are not damaged or degraded during excavation.
A well-designed lagging wall is more than a simple support system—it’s a smart investment in excavation safety and efficiency.
