Linear Drain in Construction

/by

A linear drain is an elongated, narrow drainage system designed to collect and channel water efficiently. Unlike traditional point drains, which gather water at a single location, linear drains create a continuous line of drainage, making them popular in both residential and commercial construction. Their modern design, practicality, and efficiency have made them a preferred choice for bathrooms, outdoor patios, parking areas, and landscaping projects.

What is a Linear Drain?

A linear drain, sometimes referred to as a trench drain or channel drain, is a long, rectangular-shaped drain typically installed flush with the floor surface. It works by capturing surface water over a broader area and directing it into the plumbing system. These drains often feature removable grates for easy cleaning and can be installed in showers, basements, driveways, and outdoor landscapes.

Applications of Linear Drains in Construction

1. Bathrooms and Showers

  • Provides barrier-free entry for walk-in showers.
  • Creates a sleek, modern look.
  • Enhances accessibility for elderly or disabled users.

2. Basements and Garages

  • Helps remove excess water and prevents flooding.
  • Protects structures from water damage and mold growth.

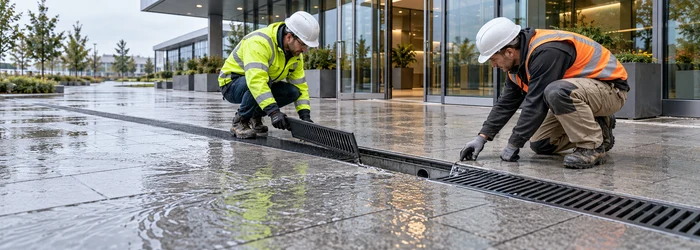

3. Driveways and Patios

  • Controls surface water runoff.
  • Prevents water pooling and erosion.

4. Commercial Spaces

  • Used in kitchens, hospitals, and industrial facilities for hygiene and safety.
  • Meets regulatory standards for proper drainage.

Advantages of Linear Drains

  • Improved Water Flow – Collects more water over a wider area.
  • Design Flexibility – Can be placed along walls, doorways, or outdoor perimeters.
  • Accessibility – Ideal for barrier-free and ADA-compliant construction.
  • Modern Aesthetic – Sleek appearance compared to traditional point drains.
  • Low Maintenance – Easy to clean with removable grates.

Materials Used in Linear Drains

  1. Stainless Steel – Durable, rust-resistant, ideal for bathrooms and kitchens.
  2. Plastic/Polymer – Lightweight, affordable, and easy to install.
  3. Concrete – Common for heavy-duty outdoor or industrial applications.
  4. Cast Iron – Strong and long-lasting, often used in commercial drainage systems.

Installation Process

  1. Planning the Layout – Determine the location and slope for proper drainage.
  2. Excavation/Preparation – Remove flooring or dig a trench to place the drain.
  3. Plumbing Connection – Attach the linear drain to the drainage system.
  4. Slope Adjustment – Ensure flooring slopes slightly toward the drain.
  5. Finishing – Secure the grate and seal surrounding areas for a watertight fit.

Cost of Linear Drains in Construction

The cost of linear drains varies depending on size, material, and application:

  • Basic residential linear drains: $100 – $500 per unit
  • Outdoor/commercial trench drains: $300 – $1,500+ depending on scale
  • Installation labor: $200 – $800 depending on complexity

Conclusion

In construction, linear drains offer a practical, stylish, and highly effective drainage solution for both indoor and outdoor spaces. They enhance functionality, reduce flooding risks, and provide design flexibility. Whether for a bathroom remodel, patio drainage, or a large commercial facility, linear drains have become a go-to choice for modern construction projects.

FAQs

Q1. What is the difference between a linear drain and a point drain?
A point drain collects water at one central spot, while a linear drain gathers water along its length, making it more efficient for large surfaces.

Q2. Can linear drains be installed in existing bathrooms?
Yes, but retrofitting may require reworking plumbing and flooring slopes, which increases installation costs.

Q3. Are linear drains easy to clean?
Yes, most models have removable grates that allow for easy cleaning and maintenance.

Q4. Do linear drains require special flooring?
Not necessarily. However, floors should be sloped properly to ensure water flows toward the drain.

Q5. How long do linear drains last?
With proper installation and maintenance, high-quality linear drains (like stainless steel) can last decades.

Q6. Are linear drains worth the cost?
Yes, especially for modern, accessible, and water-efficient construction projects where durability and style are equally important.
