Casing in Construction: Purpose, Types & Installation

What casing means in construction

Casing is the visible trim installed around a door or window opening to cover the joint between the frame or jamb and the adjacent wall finish. It creates a finished edge, can conceal small gaps, and establishes a visual border around the opening. Casing is not the same as the structural rough opening, nor is it automatically the same as the jamb or frame. The shape may be simple and flat, profiled, built up from multiple pieces, or selected to match a historic or contemporary interior. The exact material and dimensions depend on the drawings, finish schedule, opening size, and desired appearance.

Casing compared with jambs and frames

A jamb is the side and head components that line an opening; a frame may include jambs, stops, and hardware preparations. Casing sits on the wall around that assembly. The rough opening is the framed space in which the door or window unit is installed. This distinction matters because the casing hides a finish joint but does not correct a poorly installed or unsupported frame. If the opening is out of plumb or the jamb is not positioned correctly, forcing casing over it may create uneven reveals. For broader trim terminology, see the site’s guide to trims in construction.

Common casing styles and profiles

Flat stock provides a clean, modern edge and is simple to cut and install. Beaded or backband profiles add detail, while traditional molded casing may create a deeper shadow line. A built-up casing combines multiple pieces to achieve a custom profile or greater visual scale. Material options include solid wood, finger-jointed wood, MDF, PVC, and other composites. Each has different behavior in wet areas, impact zones, paint finishes, and exterior exposure. Match the profile to the design and check that it is available in the lengths and dimensions needed. A profile that appears attractive in a sample may be too wide near cabinetry or narrow wall returns.

Measure the opening and wall conditions

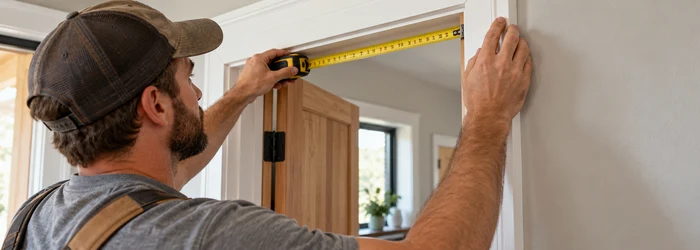

Before ordering or cutting casing, verify the opening width and height, jamb depth, wall thickness, floor level, and clearance to nearby walls or fixtures. Check whether the door or window is square, plumb, and positioned consistently in the wall. Casing width should conceal the intended gap while leaving an even reveal at the jamb. A reveal is the small, consistent inset or visible margin between the frame and trim. The designer may specify a particular reveal dimension, so do not assume every project uses the same one. Measure each opening rather than trusting a single typical size; renovations and field-built openings often vary.

Cutting and joining casing

Many casing installations use mitered head and side joints, while some profiles use square butt joints or plinth blocks. The best method depends on the design, material, and site conditions. Make test cuts and dry-fit the pieces before fastening. Small errors become obvious where two profiles meet, especially under strong side lighting. Keep long cuts supported to prevent splintering or bowing. At outside corners, align the profile so the visible edges meet cleanly. For painted trim, fill and sand nail holes according to the finish requirements; for stained wood, choose fasteners and fillers that preserve the intended appearance. Seal or prime cut edges when required by the material instructions.

Installation sequence and fasteners

Install casing only after the frame is stable and the adjacent wall finish is ready. Determine the required reveal, mark it consistently, and fasten into the appropriate framing or jamb locations without splitting the trim. Avoid using fasteners that interfere with door hardware, weatherstripping, or glazing. In wet or exterior locations, select a material and fastening system suited to exposure and follow the approved flashing detail. Sealant may be required at certain joints, but it should not hide an incorrectly fitted piece or block drainage. Coordinate casing with final floor height so the legs terminate cleanly at the baseboard or floor. The sequence should leave room for paint and finish touch-up.

Casing at doors, windows, and special openings

Door casing needs to clear hinges, stops, and hardware, while window casing must coordinate with stools, sills, shades, and wall returns. A door opening near a corner may need a narrower profile to preserve clearance. A window with a projecting sill may use casing only at the sides and head, depending on the specified detail. Fire-rated or acoustic openings can have tested frame systems whose trim cannot be changed freely. Exterior casing may be part of a water-managed assembly and must not trap moisture behind the cladding. Review the manufacturer’s installation instructions and project details before substituting a decorative profile for a specified system component.

Common defects and quality checks

Inspect for consistent reveals, tight joints, aligned profile edges, secure fastening, and a smooth transition to adjacent finishes. Common defects include open miters, bowed legs, inconsistent head height, split material, excessive caulk, and casing that exposes an uneven wall gap. Check doors for full swing and windows for unobstructed operation. A casing leg should not be forced against a sloped floor in a way that makes its top appear crooked; the cut and reveal need to be coordinated. Fix the underlying alignment problem where practical rather than filling a large visible gap with sealant. The finish should be checked from normal viewing distance and under the room’s actual lighting.

Frequently asked questions

Does casing support a door? No. The frame and its anchorage support the door; casing is finish trim.

Can I use MDF casing in a bathroom? Only if the product and finish are rated for the moisture conditions and installation location.

Should casing touch the floor? Its bottom detail should coordinate with the baseboard, floor, and project drawings; it may be cut to meet the floor or sit above a plinth block.

How wide should casing be? Follow the design and check the opening, wall space, hardware, and adjacent finishes.

A casing installation checklist

Confirm profile, material, finish, jamb depth, reveal, opening condition, joint type, fasteners, and relationship to the baseboard before installation. Dry-fit each set, protect adjacent surfaces, and inspect miter joints and operation after fastening. Use the baseboard molding calculator or trim and molding calculator for early quantity planning, then confirm actual lengths and waste from field measurements. Casing should create a clean border around a correctly installed opening; it cannot compensate for a frame that is out of position.

Selecting casing material

Solid wood can be stained or painted and may be repaired, but it can move with changes in moisture. Finger-jointed material can provide stable, paint-grade lengths, while MDF produces a smooth profile but needs protection from moisture and edge damage. PVC or other composites may suit some damp or exterior conditions, but their expansion behavior and fastening requirements differ. The specification and manufacturer determine what is acceptable. Match the material to the room and finish, and confirm that the profile is available in the required size. For a historic renovation, check local preservation requirements before replacing original casing with a different material or profile.

Miter, butt joint, or plinth block

A mitered head joint gives a continuous angled profile around the opening, while a square butt joint can simplify installation for flat stock or a particular design. Plinth blocks create a base at the bottom of each leg and can resolve a transition to wider baseboard. Each choice affects proportions and how errors appear. Confirm the method in the drawings or sample. For a miter, cut matching angles and test the fit before fastening; for a butt joint, keep the head piece level and both legs the same height. A plinth block must be aligned with casing and baseboard so it looks intentional rather than like a patch for a short cut.

Paint, stain, and final appearance

Finish requirements should be clear before installation. Painted trim may need priming, filling, caulking at specified joints, and touch-up after the other trades finish. Stained casing requires careful material selection and consistent grain, because filler and fastener holes can remain visible. Caulk should be used selectively; a thick bead can distort the profile and collect dust. Keep the reveal at the jamb clean, and do not paint moving parts such as hinges or weather seals. Review the finish from normal room distance and under grazing light, which makes gaps and uneven joints easier to spot.

Estimating material without over-ordering

Count each opening, measure both legs and the head, and include the specified returns, plinths, or backband. Add waste for miters, defects, and long cuts, especially when grain or color must match. Do not rely on the number of doors alone because window openings and cased openings may use different details. Confirm the stock length and whether the supplier can provide long pieces without joints. The baseboard molding calculator and trim and molding calculator can help with early quantity estimates, but final takeoff should follow field measurements, drawings, and the selected profile.

Closeout check

A final casing check should include consistent reveals, tight joints, secure fastening, and free operation of the door or window. Correct the frame or wall condition when it causes a gap instead of using excess caulk to disguise it.
