Shell Construction: Methods, Types, and Uses

I. Introduction

Shell construction is a revolutionary approach in the field of architecture and engineering. It involves creating structures with curved, thin, and lightweight surfaces, forming a shell-like appearance. In today’s article, we will explore the intricacies of shell construction, its historical evolution, various types, advantages, challenges, and its contemporary applications.

II. Historical Perspective

Origins of Shell Construction: The concept of shell construction can be traced back to ancient civilizations where domes and arches showcased the early forms of this architectural technique. The Romans, in particular, were pioneers in using curved structures to create large enclosures.

Notable Historical Shell Structures: Highlighting iconic structures such as the Pantheon in Rome and the Hagia Sophia in Istanbul, we delve into the historical significance of shell construction and its enduring appeal.

III. Types of Shell Structures

Geodesic Domes: Exploring the geodesic domes designed by Buckminster Fuller, we discuss their unique spherical geometry and widespread use in various applications, from environmental enclosures to recreational spaces.

Barrel Vaults: Examining the simplicity and elegance of barrel vaults, we uncover their prevalence in architectural history and modern design.

Hyperbolic Paraboloids: This section delves into the mathematical marvel of hyperbolic paraboloids, exploring how their intricate shapes contribute to both form and function.

IV. Advantages of Shell Construction

Structural Efficiency: Shell structures distribute loads efficiently, providing strength and stability while using minimal materials. This contributes to sustainable and cost-effective construction.

Aesthetic Appeal: The inherent beauty of shell construction lies in its flowing lines and graceful curves, offering architects unparalleled creative freedom to design visually stunning buildings.

Cost-Effectiveness: Despite initial perceptions of complexity, shell construction can be economically viable due to reduced material usage and faster construction times.

V. Challenges and Considerations

Engineering Complexities: While shell construction offers unique advantages, it also poses engineering challenges that require meticulous planning and execution.

Material Selection: Choosing the right materials is crucial for the success of shell structures, considering factors like durability, flexibility, and environmental impact.

Environmental Impact: We explore how shell construction can align with sustainable practices and address environmental concerns.

VI. Shell Construction in Modern Architecture

Innovative Applications: From cutting-edge museums to sports arenas, we examine how architects leverage shell construction for avant-garde designs.

Iconic Examples: Highlighting modern architectural marvels like the Sydney Opera House, we showcase the transformative impact of shell construction on the global stage.

VII. Sustainable Aspects

Energy Efficiency: Discover how shell structures contribute to energy efficiency through natural lighting, ventilation, and optimized thermal performance.

Eco-Friendly Materials: Exploring the use of eco-friendly materials in shell construction, we shed light on sustainable practices shaping the industry.

VIII. Future Trends in Shell Construction

Technological Advancements: Discuss how emerging technologies, such as parametric design and advanced engineering software, are influencing the future of shell construction.

Integration with Smart Building Systems: Explore the potential integration of shell structures with smart building systems for enhanced functionality and sustainability.

IX. Case Studies

Noteworthy Projects: Examining case studies of iconic shell construction projects, we draw insights into successful implementations and lessons learned.

Lessons Learned: From challenges faced to innovative solutions, we extract valuable lessons from past shell construction endeavors.

X. How to Incorporate Shell Construction in Your Project

Collaboration with Architects and Engineers: Emphasizing the importance of collaboration between architects and engineers in integrating shell construction into projects seamlessly.

Budgeting and Planning Tips: Providing practical tips for budgeting and planning when considering shell construction, ensuring a smooth and cost-effective process.

XI. Conclusion

In conclusion, shell construction stands as a testament to human ingenuity and creativity in the realm of architecture. Its historical roots, contemporary applications, and future prospects showcase the enduring impact of this innovative approach.

XII. Frequently Asked Questions

Q1. Is shell construction suitable for all types of buildings?

Shell construction is versatile and can be applied to various building types, but its suitability depends on factors like design requirements and engineering considerations.

Q2. Are there any limitations to shell construction?

While shell construction offers numerous advantages, it may pose challenges in terms of engineering complexity and material selection. Careful planning is essential to overcome potential limitations.

Q3. How does shell construction contribute to sustainability?

Shell structures, with their efficient use of materials and incorporation of eco-friendly practices, can contribute to sustainable construction by reducing environmental impact.

Q4. What are some famous examples of shell construction?

Iconic examples include the Sydney Opera House, the Eden Project biomes, and the Expo 67 Biosphere in Montreal, showcasing the versatility and aesthetic appeal of shell structures.

Q5. Is shell construction cost-effective?

Despite initial perceptions, shell construction can be cost-effective due to reduced material usage and faster construction times, making it an attractive option for certain projects.

What shell construction describes

In structural architecture, shell construction uses a thin, continuous surface to enclose space and carry loads through its shape. A shell can be curved, folded, or shaped as a dome, barrel form, hypar, or another surface. Unlike a conventional beam-and-column frame, a shell can distribute forces across a broad surface. Its structural behavior depends on geometry, material, support conditions, thickness, openings, and how the edges are restrained. The word “shell” is also used in other building contexts, so the project documents should make clear whether the article means a structural shell or a building enclosure.

A shell may be made from reinforced concrete, masonry, timber, steel, fabric, or composite systems. Each material behaves differently, and the design cannot be reduced to the visual idea of a thin roof. Reinforced concrete shells, for example, require engineered reinforcement and carefully planned formwork; timber shells may use grids, ribs, panels, or laminated members. A shell’s surface can be efficient in some structural arrangements, but it is not automatically cheaper or easier to build than a conventional frame.

How shape carries load

Curvature can help a shell carry forces through membrane action, but the actual force pattern depends on the shell’s form and loading. Some areas may experience compression, others tension, and edges or openings can introduce concentrated demands. Supports must receive the resulting forces without excessive movement. Engineers analyze the complete structure, including foundations, ribs, edge beams, joints, and connections. A shell’s thin appearance does not mean it is structurally simple.

Openings can interrupt the surface and redirect forces. Skylights, vents, roof edges, and penetrations need to be located and reinforced according to the structural design. A late change to an opening can affect the shell’s load path, waterproofing, and fabrication sequence. The design team should coordinate mechanical equipment and daylight strategies early, before forms, panels, or reinforcement are finalized. Shop drawings should reflect the approved geometry and include tolerances for fabrication and erection.

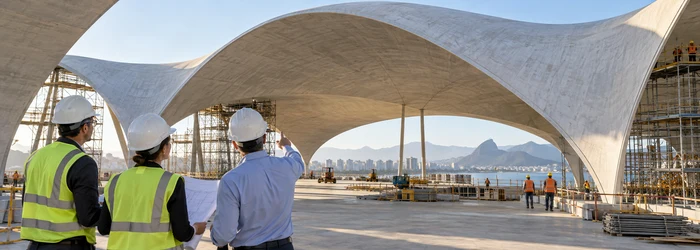

Construction methods and temporary works

Building a thin surface requires a way to hold the intended shape until the material can support itself. Concrete shells may need extensive formwork or a specialized construction method; timber and steel shells can be assembled from prefabricated pieces but still require temporary bracing and controlled erection. Fabric and membrane structures depend on prestress and anchorage. Temporary works are part of the structural plan because the partially completed structure may behave differently from the finished one.

Surveying and dimensional control are critical. Small deviations can create gaps, uneven support, or unexpected stresses, particularly where panels meet or the surface curves tightly. Crews may use templates, jigs, survey control, or digital fabrication data to verify the shape. The project should specify acceptable tolerances and inspection points. Field cutting or adjustment should follow the approved process so a local fit-up does not compromise the overall geometry.

Benefits and tradeoffs

A shell can create a large open interior with fewer intermediate supports and a distinctive architectural expression. Its geometry may use material efficiently under the loads it was designed to carry. Curved surfaces can also support good daylighting or acoustic goals when planned with the space’s use in mind. These benefits come with tradeoffs: geometry can be difficult to model, form, fabricate, waterproof, insulate, and repair. Shells often need more specialized engineering and construction coordination than standard repetitive framing.

Thermal and acoustic performance require separate attention. A thin structural surface may not provide adequate insulation or sound control by itself. The enclosure needs a compatible assembly for the climate and occupancy, including vapor control, thermal bridging, condensation risk, and interior finish. Curved surfaces can complicate insulation continuity and service routing. Acoustics may be affected by reflections, reverberation, and the room’s geometry. These are design problems to solve, not automatic advantages or disadvantages of shells.

Shell structure versus building enclosure

In everyday speech, “shell” can mean the exterior enclosure or unfinished structural frame of a building. In structural design, a shell is a particular load-carrying surface form. A house may be called a shell during construction even though it uses ordinary walls, floors, and roof framing. Confusing the meanings can lead to vague scope. A specification should state whether “shell” refers to the structural system, exterior envelope, or stage of project completion.

Related forms include domes and vaults, which have their own geometries and design histories. The site’s guide to domes in construction addresses their curved enclosure and practical tradeoffs, while its analysis of vaults in civil engineering focuses on elongated arched forms. A dome or vault may be designed as a shell, but not every shell is a dome or vault.

Questions readers ask

Is a shell always curved? Many structural shells are curved, but folded or faceted surfaces can also act as shell-like systems when designed to carry loads across the surface.

Does a shell use less material? It may be efficient for a suitable geometry and loading, but total material and cost depend on supports, formwork, enclosure layers, fabrication, and construction method.

Can a shell be modified after construction? Changes to openings or supports require engineering review because they can alter the load path and weatherproofing.

Is “building shell” the same as shell structure? No. “Building shell” may mean the exterior enclosure or construction stage, while a shell structure is a specific structural form.
